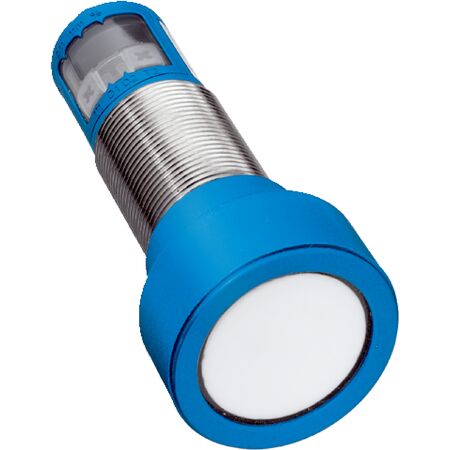

Ultrasonic Distance Sensor | 350 mm to 5,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UM30-21411B offers an impressive operating range from 350 mm to 5,000 mm, with a high resolution of ≥ 0.18 mm and repeatability of ± 0.15%. Designed for industrial automation and process control, this robust sensor features an IP65/IP67 rating, making it ideal for harsh environments. With an IO-Link V1.1 interface, it allows for easy parameterization and data storage, ensuring precise measurements in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 180 ms
- Switching frequency: 4 Hz
- Ultrasonic frequency: 120 kHz
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Output: 1 digital push-pull output (PNP/NPN), max 100 mA
- Enclosure rating: IP65 / IP67
- Connection: Male M12, 5-pin connector
- Operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 47.5mm x 102mm x 47.5mm
- Weight: 0.21 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Adjustable operating modes including switching point, switching window, and background suppression
- IO-Link V1.1 interface for process data, diagnosis, parameterization, and data storage
- Robust metal housing with IP65/IP67 protection rating
- Temperature compensation for accurate measurements
- Synchronization capability for up to 50 sensors without cross talk
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Process control requiring precise ultrasonic sensing
- Harsh environments needing IP65/IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Durable metal housing reduces waste through extended product life
- Supports precise measurement reducing material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UM30-21411B Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and process control applications.
