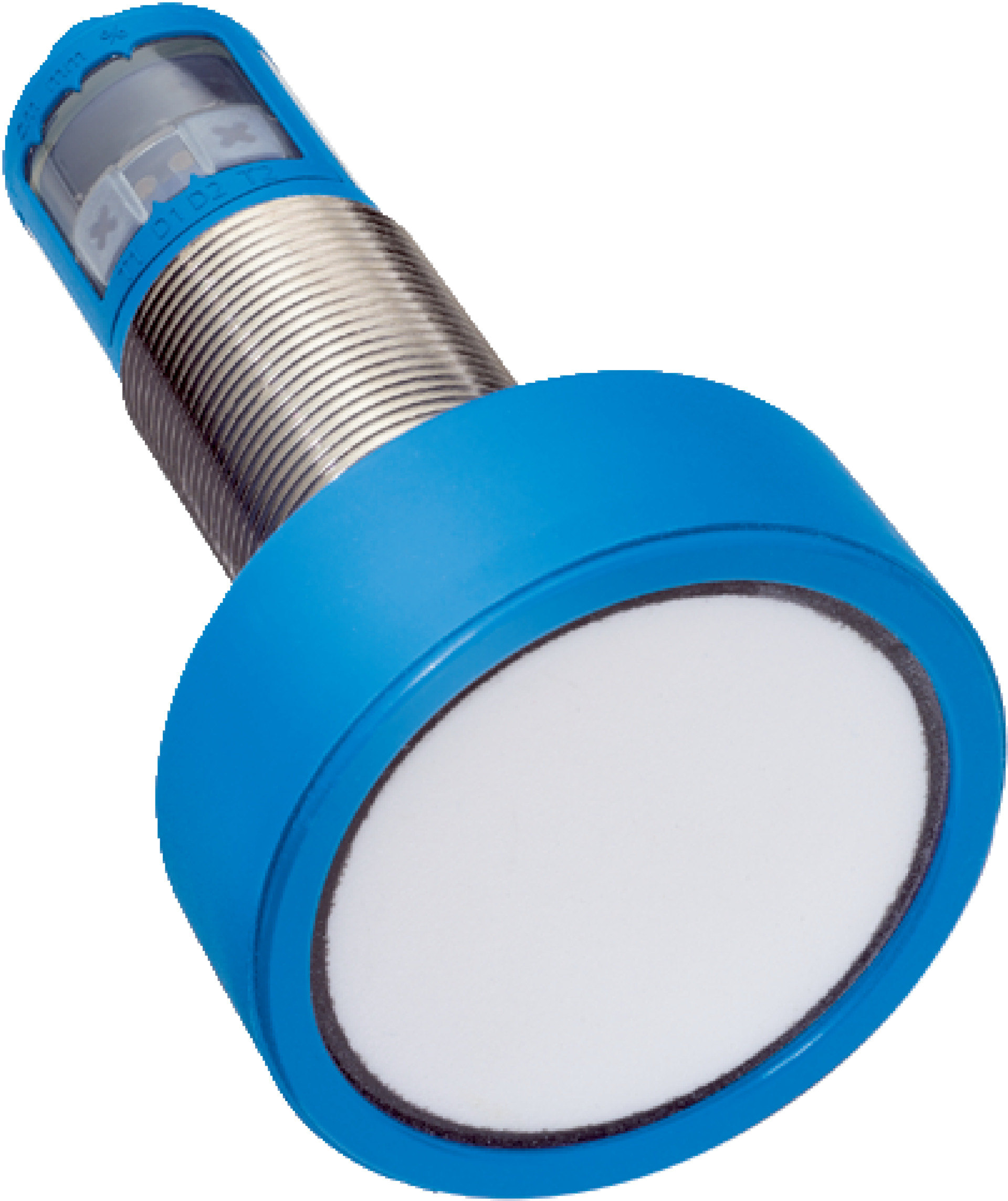

Ultrasonic Distance Sensor | 600 mm to 8,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor offers an impressive operating range from 600 mm to 8,000 mm, making it ideal for industrial automation and precise distance measurement applications. With a high resolution of ≥ 0.18 mm and an IP65/IP67 rated enclosure, this sensor ensures reliable performance in challenging environments. Perfect for object detection, level measurement, and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 600 mm to 6,000 mm and 8,000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation: Yes
- Response time: 240 ms
- Output time: 60 ms
- Ultrasonic frequency: 80 kHz
- Analog output: 4 mA to 20 mA current or 0 V to 10 V voltage, 12-bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male connector, M12, 5-pin
- Thread size: M30 x 1.5
- Dimensions (H x L x W): 65mm x 105mm x 65mm
- Weight: 0.27 kg
Key Features
- Operating range from 600 mm to 8,000 mm
- High resolution of ≥ 0.18 mm
- Repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation included
- Response time of 240 ms and output time of 60 ms
- Ultrasonic frequency of 80 kHz
- Multiple adjustable measurement filters and teach-in functions
- Synchronization of up to 50 sensors without cross talk
- IP65 / IP67 rated enclosure for robust protection
- Metal housing with nickel-plated brass and polyurethane foam transducer
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for distance measurement
- Object detection and positioning
- Level measurement in tanks and silos
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

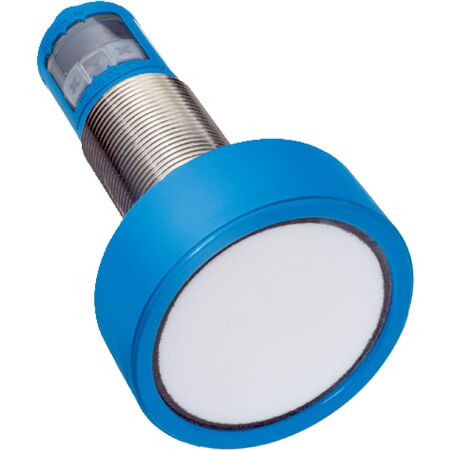

The SICK UM30-215113 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
