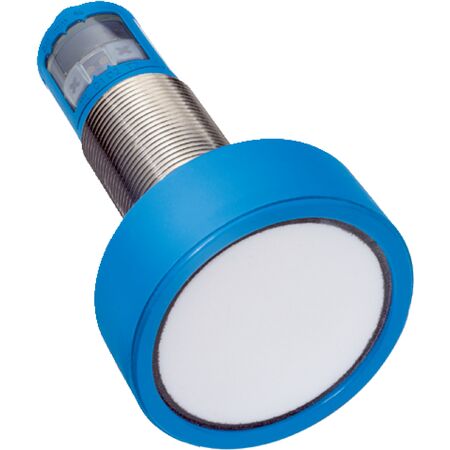

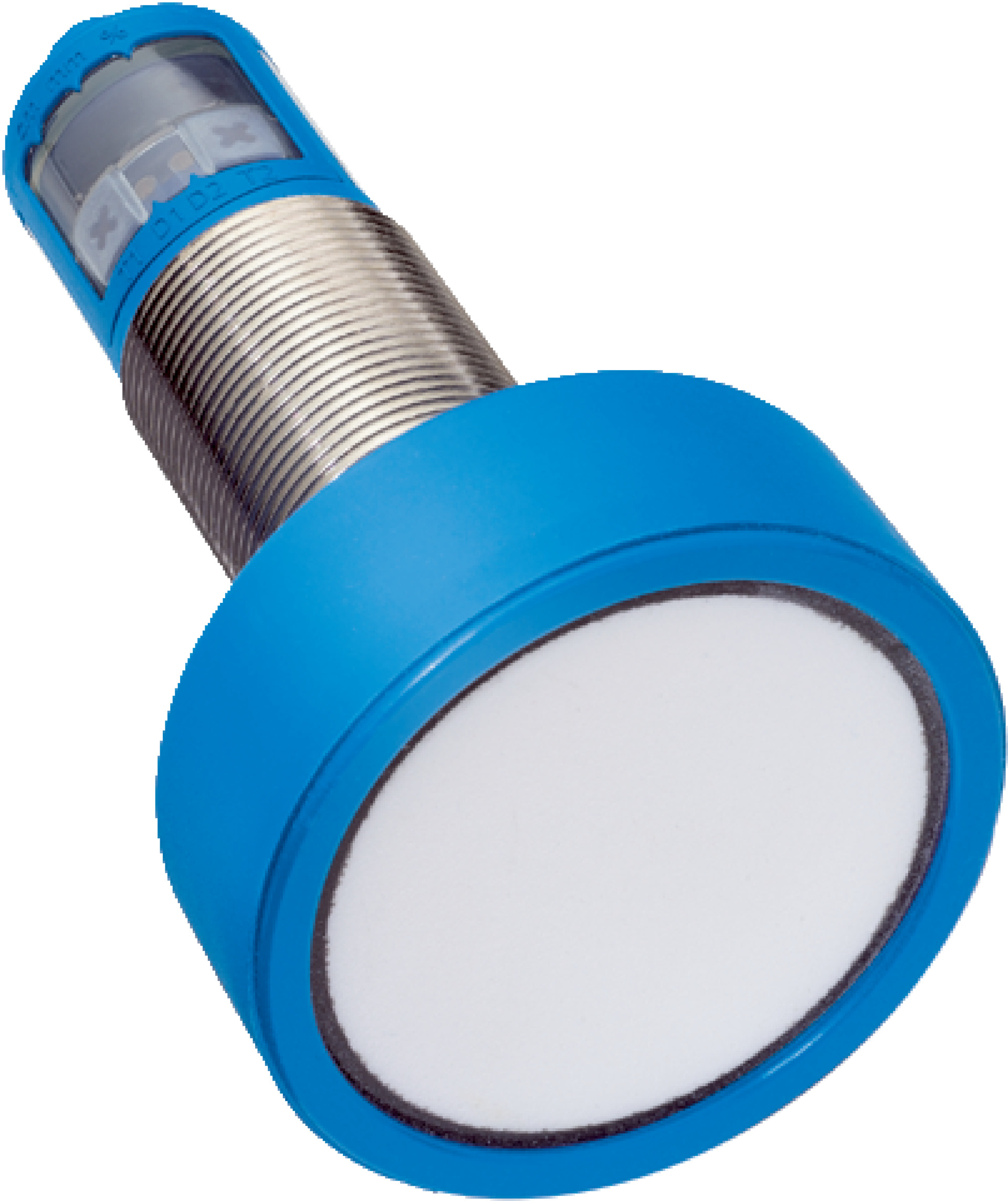

Ultrasonic Distance Sensor | 600 mm to 8,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UM30-215118 offers an impressive operating range from 600 mm to 8,000 mm, with high resolution and measurement accuracy. Ideal for industrial automation and object detection, this robust sensor features adjustable operating modes and can synchronize up to 50 units without cross talk. Its durable metal housing ensures longevity, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 65mm x 105mm x 65mm
- Weight: 0.27 kg
Key Features
- Operating range from 600 mm to 6,000 mm and up to 8,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization of up to 50 sensors with no cross talk
- Automatic selection of analog current or voltage output
- Robust metal housing with IP65 / IP67 protection rating
- Temperature compensation for accurate measurements
- LED display with 2 LEDs for status indication
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and calibration.
Applications
- Industrial automation for distance measurement
- Object detection in manufacturing processes
- Level measurement in tanks and silos
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Low power consumption of ≤ 2.4 W conserves energy
- Automatic output selection optimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK UM30-215118 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
