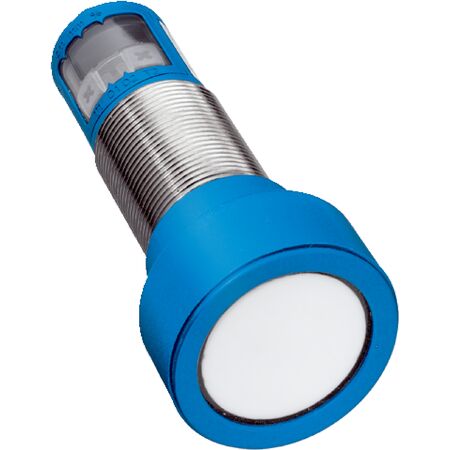

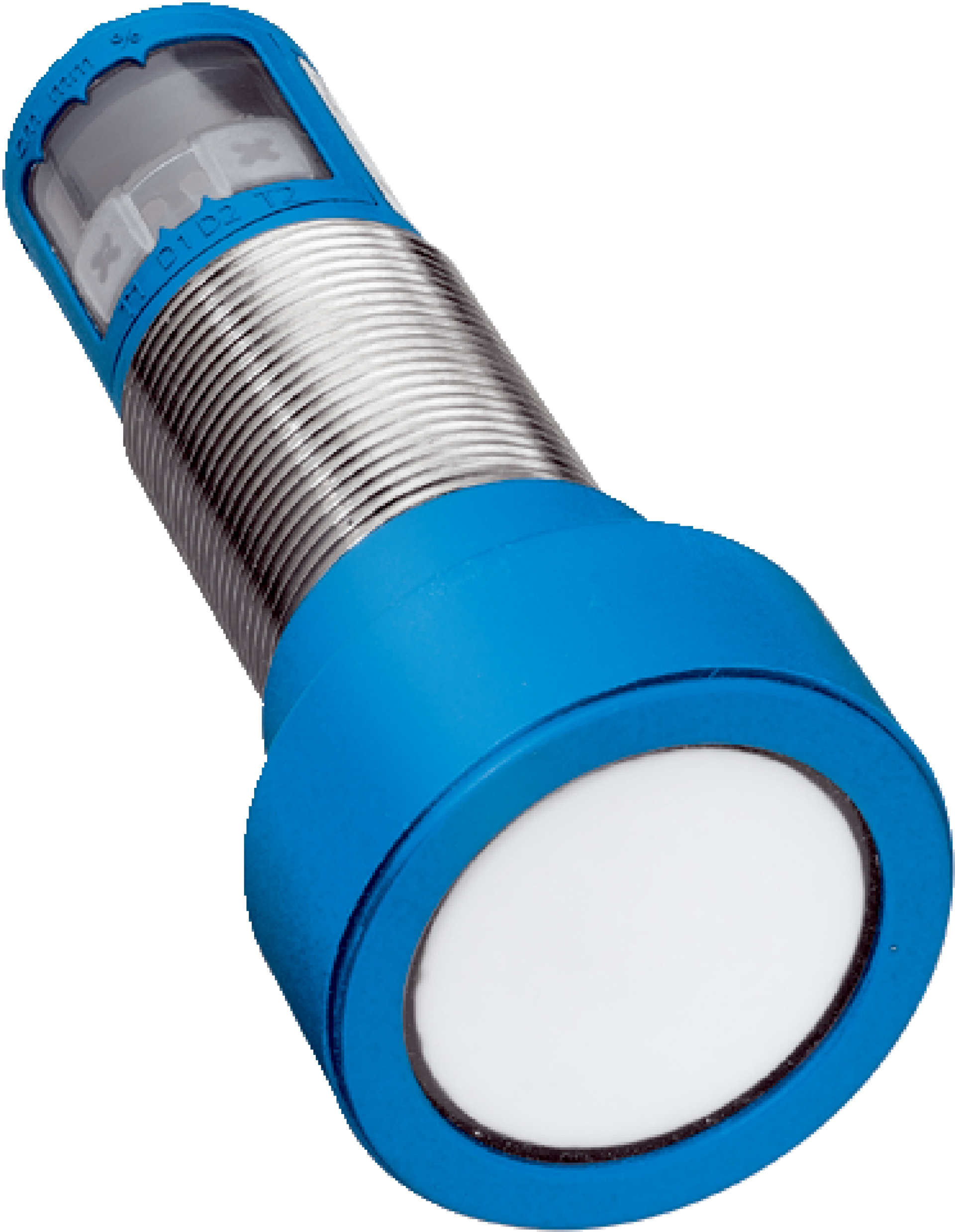

Ultrasonic Distance Sensor SICK UM30-214111 | 350 mm to 5,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor SICK UM30-214111 offers an impressive operating range from 350 mm to 5,000 mm, making it ideal for industrial automation and precise object detection. With a high resolution of ≥ 0.18 mm and a repeatability of ± 0.15%, this sensor ensures accurate measurements. Its robust IP65/IP67 rated metal housing guarantees durability in challenging environments, while the fast response time of 180 ms enhances operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 180 ms
- Switching frequency: 4 Hz
- Output time: 43 ms
- Ultrasonic frequency: 120 kHz
- Digital output: 1 PNP output, max current ≤ 200 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male M12, 5-pin connector
- Thread size: M30 x 1.5
- Operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 47.5mm x 102mm x 47.5mm
- Weight: 0.21 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- LED display with two LEDs for status indication
- Robust metal housing with IP65/IP67 protection rating
- Temperature compensation for reliable operation
- Fast response time of 180 ms and switching frequency of 4 Hz
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing and processing lines
- Safety and monitoring systems requiring precise ultrasonic sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption of ≤ 2.4 W
- Durable metal housing extends product life reducing waste
- Compliance with China-RoHS supports reduced hazardous substances
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK UM30-214111 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
