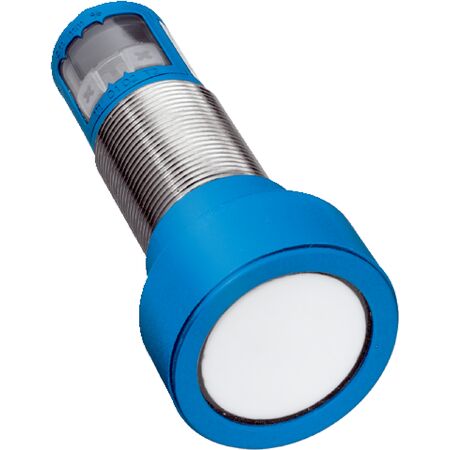

Ultrasonic Distance Sensor SICK UM30-214114 | 350 mm to 5,000 mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor SICK UM30-214114 offers an impressive operating range from 350 mm to 5,000 mm, with a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%. Perfect for industrial automation, this sensor is designed for object detection and distance measurement, ensuring reliable performance in various applications, including safety and monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 180 ms
- Switching frequency: 4 Hz
- Output time: 43 ms
- Ultrasonic frequency: 120 kHz
- Digital outputs: 2 NPN outputs, max 200 mA
- Multifunctional input: 1 x MF
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 5-pin
- Thread size: M30 x 1.5
- Operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 47.5mm x 102mm x 47.5mm
- Weight: 0.21 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 0.18 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- Robust metal housing with IP65/IP67 protection rating
- LED display with two LEDs for status indication
- Temperature compensation for reliable measurements
- Fast response time of 180 ms and switching frequency of 4 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing and processing environments
- Safety and monitoring systems requiring precise ultrasonic sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Durable metal housing extends product lifespan reducing waste
- Supports synchronization to reduce interference and improve sensor network efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UM30-214114 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
