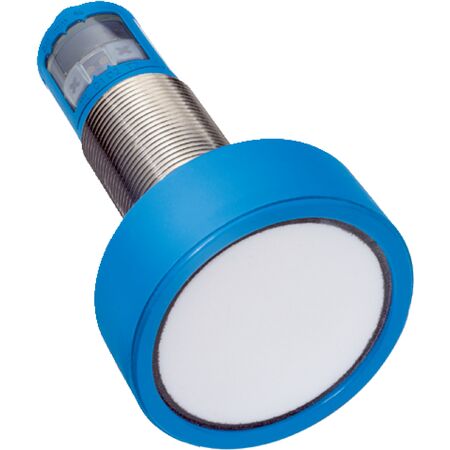

Ultrasonic Distance Sensor SICK UM30-215115 | 600mm to 8000mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor SICK UM30-215115 offers an impressive operating range from 600 mm to 8,000 mm, making it ideal for industrial automation and object detection. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor ensures reliable performance in harsh environments, thanks to its robust IP65/IP67 rated metal housing. Perfect for applications requiring precise distance measurement and natural object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 600 mm to 6,000 mm, extendable to 8,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 240 ms
- Switching frequency: 3 Hz
- Output time: 60 ms
- Ultrasonic frequency: 80 kHz
- Digital output: 1 x NPN, max 200 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male M12, 5-pin connector
- Thread size: M30 x 1.5
- Operating temperature: -25°C to +70°C
- Storage temperature: -40°C to +85°C
- Dimensions (H x L x W): 65mm x 105mm x 65mm
- Weight: 0.27 kg
Key Features
- Operating range from 600 mm up to 8,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- Robust metal housing with IP65/IP67 protection rating
- Temperature compensation for reliable operation from -25°C to +70°C
- LED display with 2 LEDs for status indication
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing and processing environments
- Use in harsh environments requiring IP65/IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing reduces waste by extending product lifespan
- Energy-efficient operation with low power consumption (≤ 2.4 W)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UM30-215115 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
