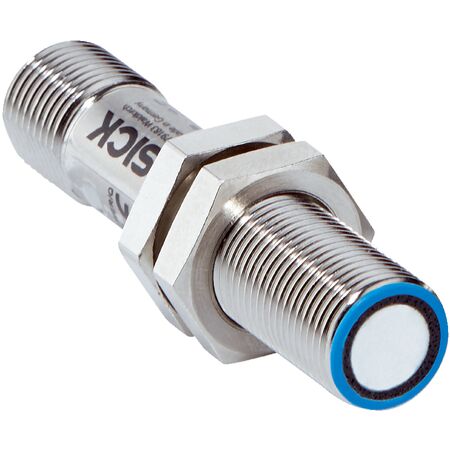

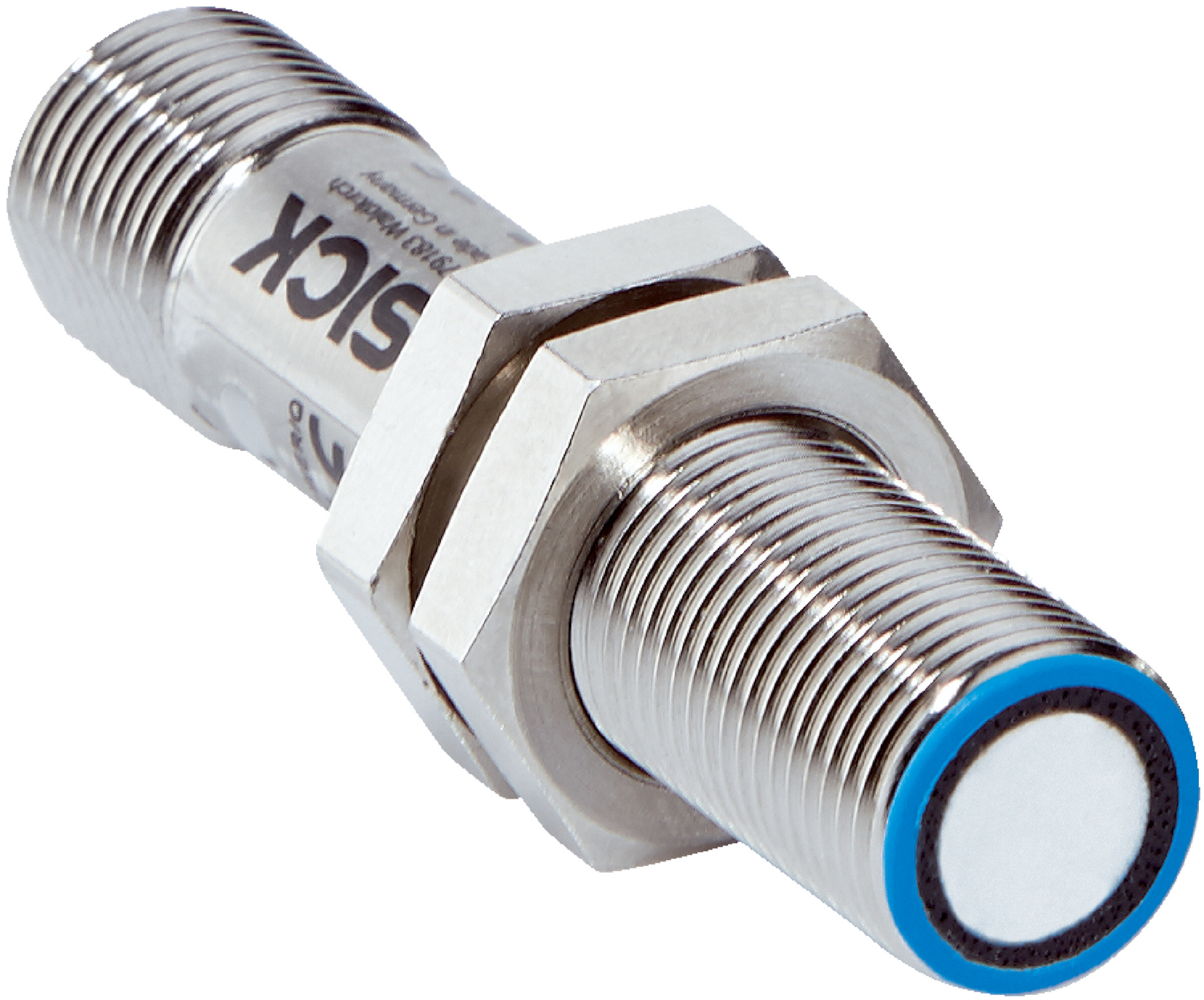

Ultrasonic Distance Sensor SICK UM12-1172271 | 20 mm to 150 mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor SICK UM12-1172271 offers an operating range from 20 mm to 150 mm, extendable to 250 mm, making it perfect for industrial automation and precise distance measurement. With a high resolution of ≥ 0.069 mm and IP65/IP67 rated enclosure, it ensures reliable performance in challenging environments, ideal for object detection and level measurement in tanks and silos.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 20 mm to 150 mm, extendable to 250 mm
- Target: Natural objects
- Resolution: ≥ 0.069 mm
- Repeatability: ± 0.15 %
- Measurement accuracy: ± 1 %
- Temperature compensation: Yes
- Response time: 24 ms
- Output time: 8 ms
- Ultrasonic frequency: 380 kHz
- Analog output: 1 voltage output, 0 V to 10 V, ≥ 100,000 Ω, 12-bit resolution
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 0.9 W
- Initialization time: < 300 ms
- Indication: 2 LEDs
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 4-pin
- Thread size: M12 x 1
- Dimensions (H x L x W): 12mm x 60.1mm x 12mm
- Weight: 0.1 kg
Key Features
- Operating range from 20 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.069 mm
- Repeatability of ± 0.15 %
- Measurement accuracy of ± 1 %
- Temperature compensation included
- Fast response time of 24 ms and output time of 8 ms
- Ultrasonic frequency of 380 kHz
- Analog voltage output (0 V to 10 V) with 12-bit resolution
- IP65 / IP67 rated enclosure for robust protection
- Metal housing with nickel-plated brass and polyurethane foam ultrasonic transducer
- M12 x 1 thread size with 4-pin male connector
- Safety-related parameters with MTTFD of 101 years and DCavg 0%
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for distance measurement
- Object detection in manufacturing processes
- Level measurement in tanks and silos
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 0.9 W reduces energy usage
- Durable metal housing extends product life, reducing waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK UM12-1172271 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
