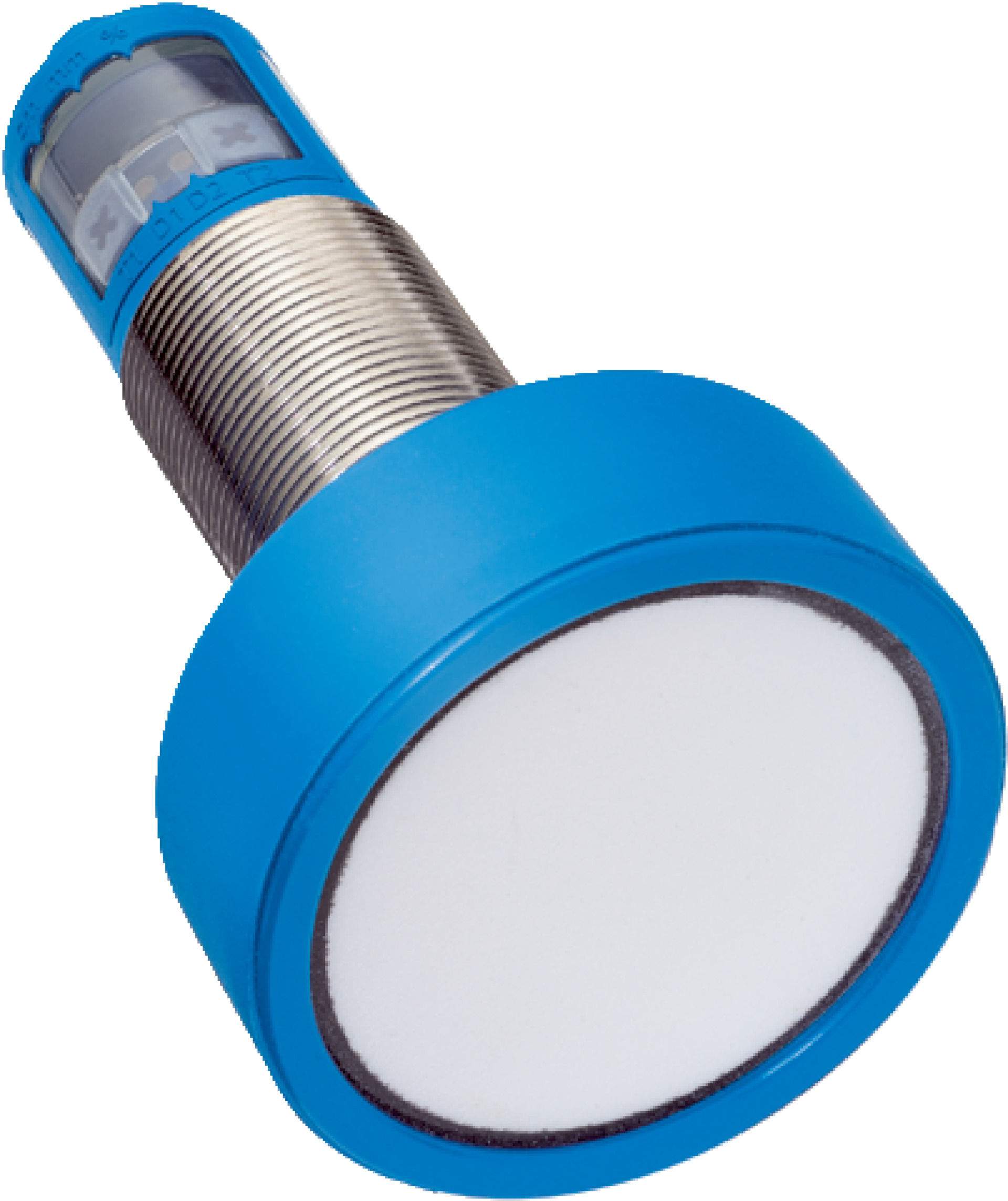

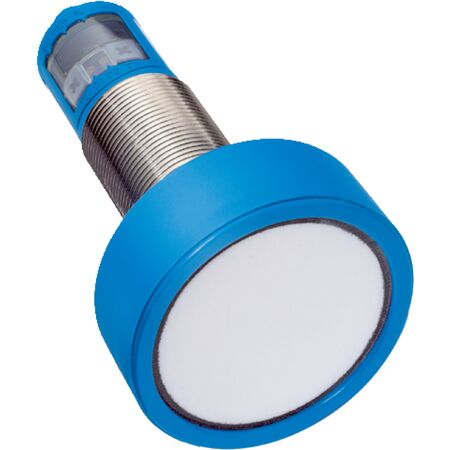

Ultrasonic Distance Sensor SICK UM30-215111 | 600mm to 8000mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor SICK UM30-215111 offers an impressive operating range from 600 mm to 8,000 mm, making it ideal for industrial automation and safety monitoring applications. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor ensures precise object detection and distance measurement. Its robust IP65/IP67 rated housing guarantees durability in challenging environments, while the adjustable operating modes enhance versatility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 600 mm to 6,000 mm, extendable to 8,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 240 ms
- Switching frequency: 3 Hz
- Output time: 60 ms
- Ultrasonic frequency: 80 kHz
- Digital output: 1 PNP output, max 200 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male M12, 5-pin connector
- Housing material: Nickel-plated brass, PBT, polyurethane foam, glass epoxy resin
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 65mm x 105mm x 65mm
- Weight: 0.27 kg
Key Features
- Operating range from 600 mm to 6,000 mm and up to 8,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- LED display with two LEDs for status indication
- Robust metal housing with IP65/IP67 protection rating
- Temperature compensation for accurate measurements
- Response time of 240 ms and switching frequency of 3 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Safety-related monitoring in machinery and equipment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Durable metal housing reduces waste through extended product life
- Supports safety-related parameters enhancing operational safety and reducing risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UM30-215111 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
