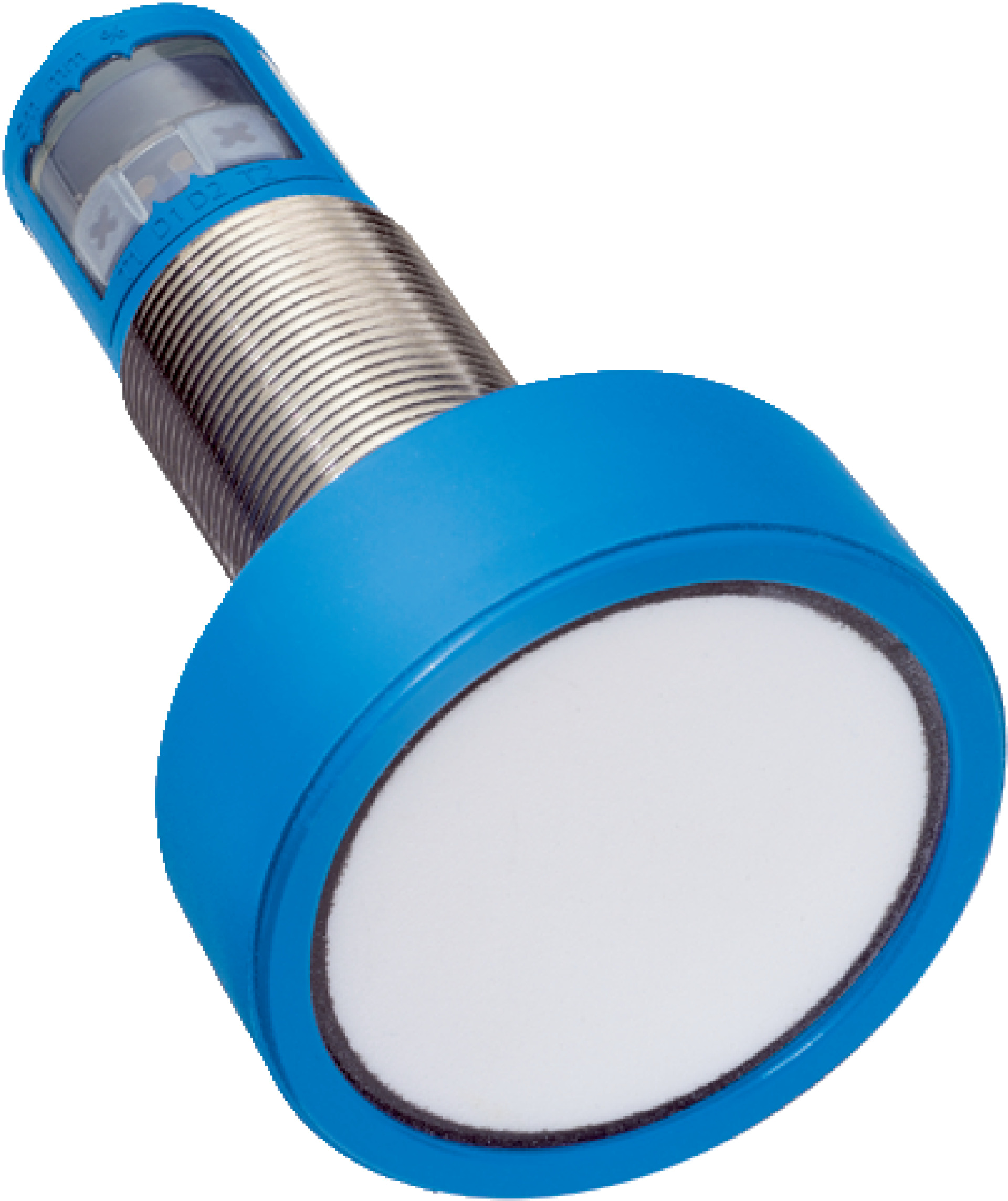

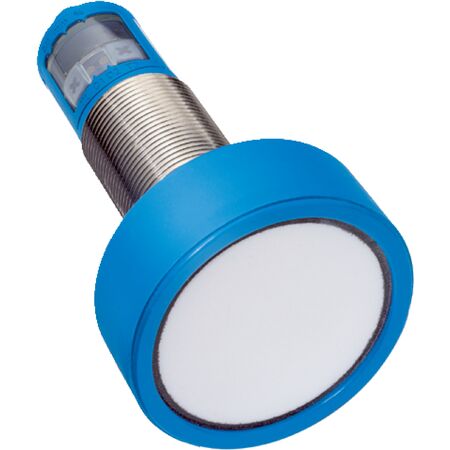

Ultrasonic Distance Sensor SICK UM30-215114 | 600 mm to 8,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor SICK UM30-215114 offers an impressive operating range from 600 mm to 8,000 mm, with a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%. Perfect for industrial automation, this sensor excels in object detection and level measurement, ensuring reliable performance in harsh environments with its IP65/IP67 enclosure rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 600 mm to 6,000 mm, 8,000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 240 ms
- Switching frequency: 3 Hz
- Output time: 60 ms
- Ultrasonic frequency: 80 kHz
- Digital outputs: 2 NPN outputs, max 200 mA
- Multifunctional input: 1 x MF
- Hysteresis: 100 mm
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Initialization time: < 300 ms
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male connector, M12, 5-pin
- Thread size: M30 x 1.5
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 65mm x 105mm x 65mm
- Weight: 0.27 kg
Key Features
- Operating range from 600 mm to 8,000 mm
- High resolution of ≥ 0.18 mm
- Repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation included
- Adjustable operating modes and measurement filters
- Synchronization of up to 50 sensors without cross talk
- LED display with 2 LEDs for indication
- Enclosure rating IP65 / IP67 for harsh environments
- Metal housing with nickel-plated brass and polyurethane foam ultrasonic transducer
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for distance measurement
- Object detection in manufacturing processes
- Level measurement in tanks and silos
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal housing reduces waste by extending product lifespan
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Supports precise measurement reducing material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UM30-215114 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
