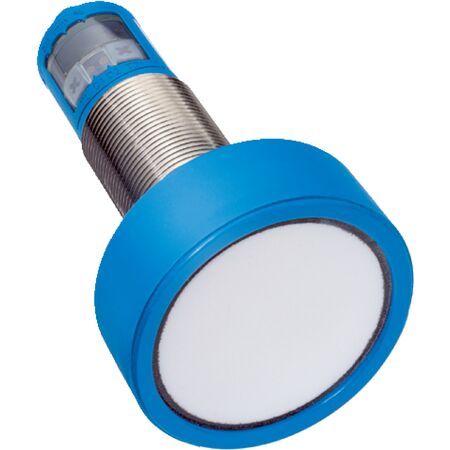

Ultrasonic Distance Sensor SICK UM30-21511B | 600mm to 8000mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor SICK UM30-21511B offers an impressive operating range from 600 mm to 8,000 mm, making it ideal for industrial automation and precise distance measurement applications. With a high resolution of ≥ 0.18 mm and an IP65/IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for object detection and level measurement in tanks and silos.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 600 mm to 6,000 mm, up to 8,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 240 ms
- Switching frequency: 3 Hz
- Ultrasonic frequency: 80 kHz
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male connector, M12, 5-pin
- Thread size: M30 x 1.5
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 65mm x 105mm x 65mm
- Weight: 0.27 kg
Key Features
- Operating range from 600 mm to 8,000 mm
- High resolution of ≥ 0.18 mm
- Repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation included
- Response time of 240 ms with switching frequency of 3 Hz
- Adjustable operating modes and measurement filters
- Synchronization of up to 50 sensors without cross talk
- IP65 / IP67 rated enclosure for robust protection
- LED display with 2 LEDs for indication
- Push-pull digital output (PNP/NPN) with max 100 mA current
- IO-Link V1.1 support for process data, diagnosis, and parameterization
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for distance measurement
- Object detection in manufacturing processes
- Level measurement in tanks and silos
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Durable metal housing reduces waste through extended product life
- Supports precise measurement reducing material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UM30-21511B Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
