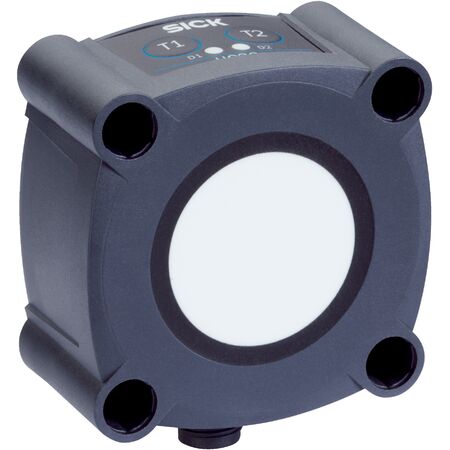

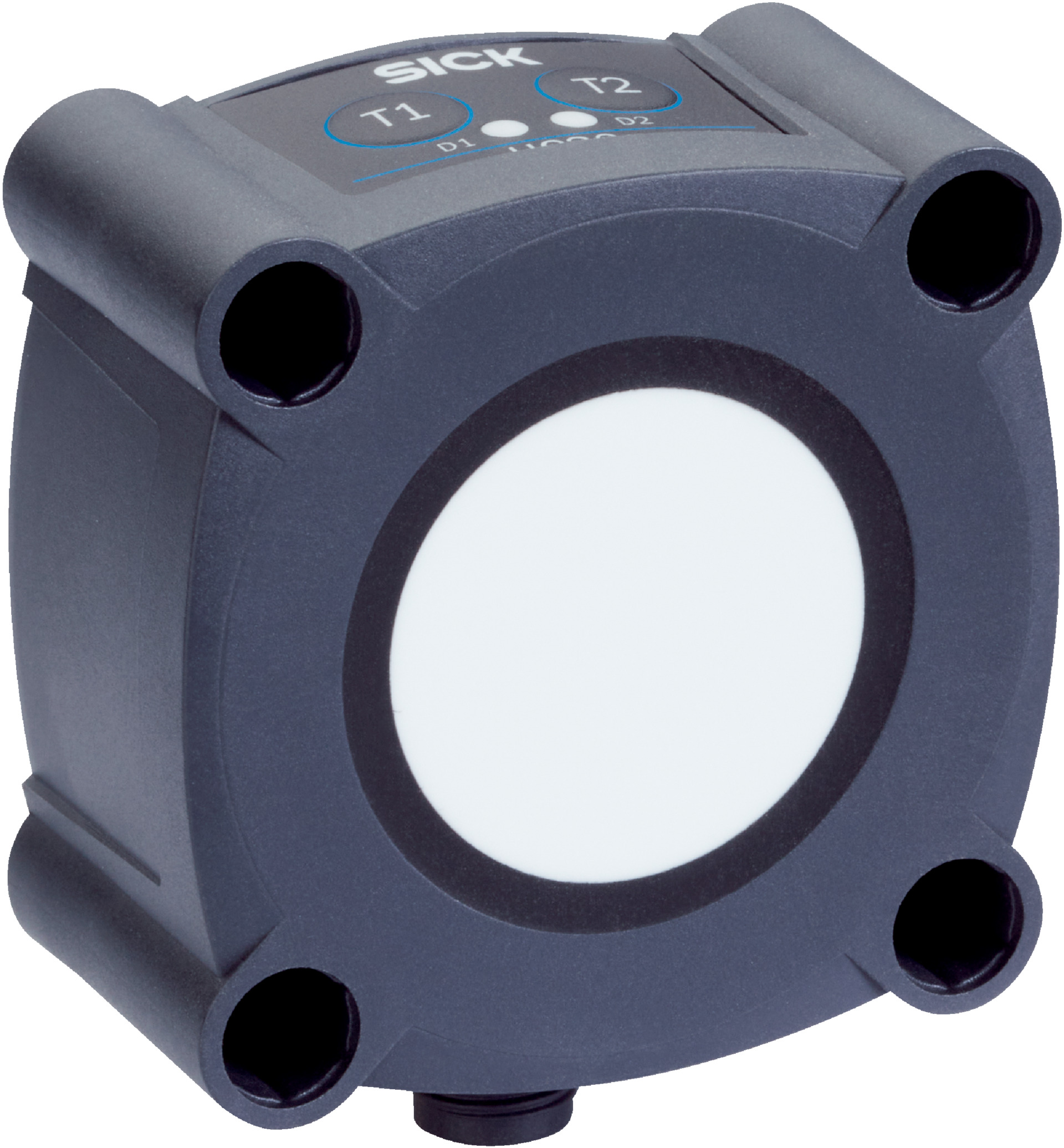

Ultrasonic Distance Sensor UC30-214162 | 350 mm to 5,000 mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC30-214162 offers an impressive operating range from 350 mm to 5,000 mm, making it ideal for industrial automation and precise object detection. With a high resolution of ≥ 0.18 mm and a repeatability of ± 0.15%, this sensor ensures accurate measurements in various applications. Its robust IP65/IP67 rated enclosure provides durability in challenging environments, while low power consumption enhances energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 180 ms
- Switching frequency: 4 Hz
- Ultrasonic frequency: 120 kHz
- Digital outputs: 2 PNP outputs, max 200 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.2 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection: Male M12, 5-pin connector
- Operating temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 62mm x 33mm x 62mm
- Weight: 0.18 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- IP65 / IP67 rated enclosure for robust protection
- Low power consumption of ≤ 1.2 W
- Fast response time of 180 ms and switching frequency of 4 Hz
- Two PNP digital outputs with maximum current ≤ 200 mA
- Operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing and processing lines
- Safety and monitoring systems requiring precise ultrasonic sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65/IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UC30-214162 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
