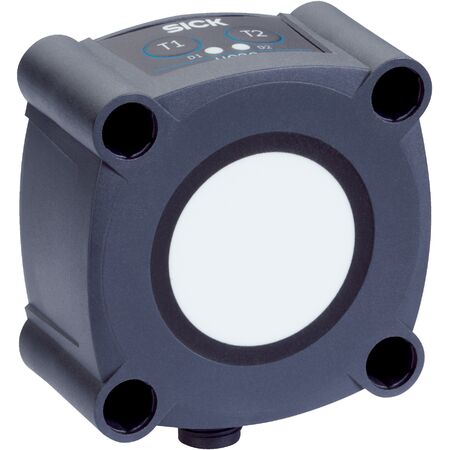

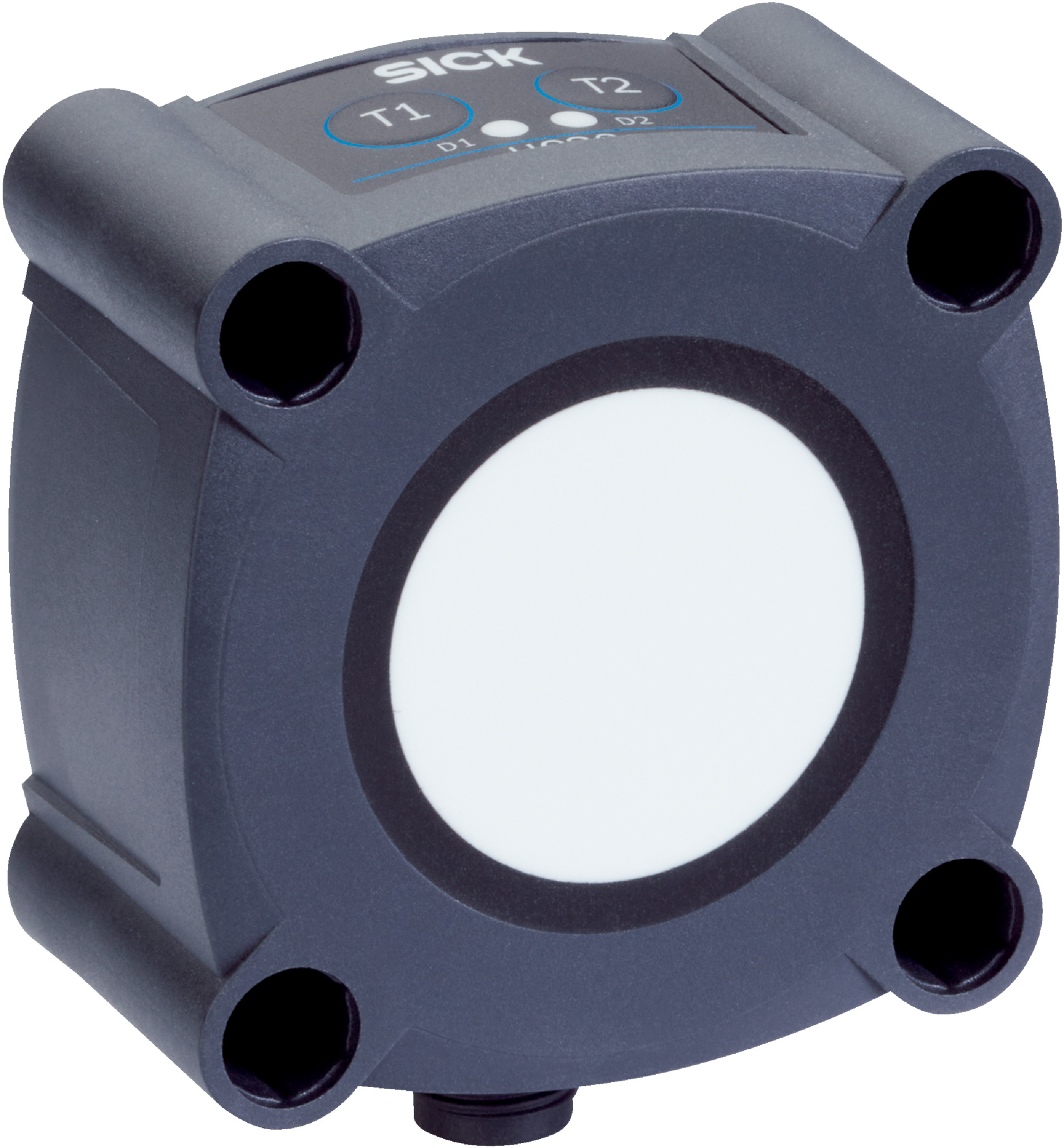

Ultrasonic Distance Sensor UC30-214163 | 350 mm to 5,000 mm Range | High Resolution & Temperature Compensation | by SICK
The Ultrasonic Distance Sensor UC30-214163 offers an impressive operating range from 350 mm to 5,000 mm, making it ideal for industrial automation and precise distance measurement applications. With a high resolution of ≥ 0.18 mm and temperature compensation, this sensor ensures accurate readings in various environments. Perfect for object detection, level measurement, and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, up to 5,000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation: Yes
- Response time: 180 ms
- Output time: 43 ms
- Ultrasonic frequency: 120 kHz
- Analog output: 4 mA to 20 mA (≤ 500 Ω) or 0 V to 10 V (≥ 100,000 Ω), 12 bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.2 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male M12, 5-pin connector
- Weight: 180 g
- Dimensions (H x L x W): 62mm x 33mm x 62mm
- Weight: 0.18 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 0.18 mm
- Repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation included
- Response time of 180 ms and output time of 43 ms
- Ultrasonic frequency of 120 kHz
- Multiple adjustable measurement filters and teach-in functions
- Synchronization of up to 50 sensors without cross talk
- Enclosure rating IP65 / IP67 for robust protection
- Supply voltage DC 9 V to 30 V with low power consumption ≤ 1.2 W
- 2 x LED indication for status
- Male M12, 5-pin connector
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for distance measurement
- Object detection and positioning
- Level measurement in tanks and silos
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65/IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UC30-214163 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
