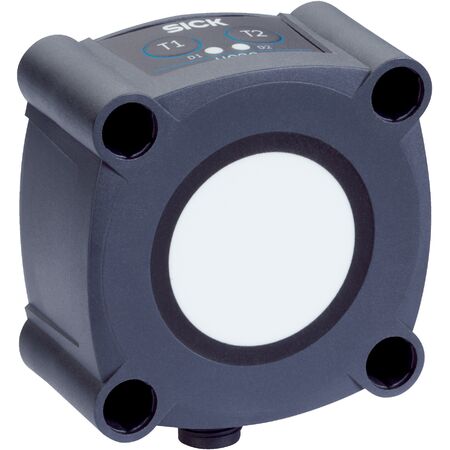

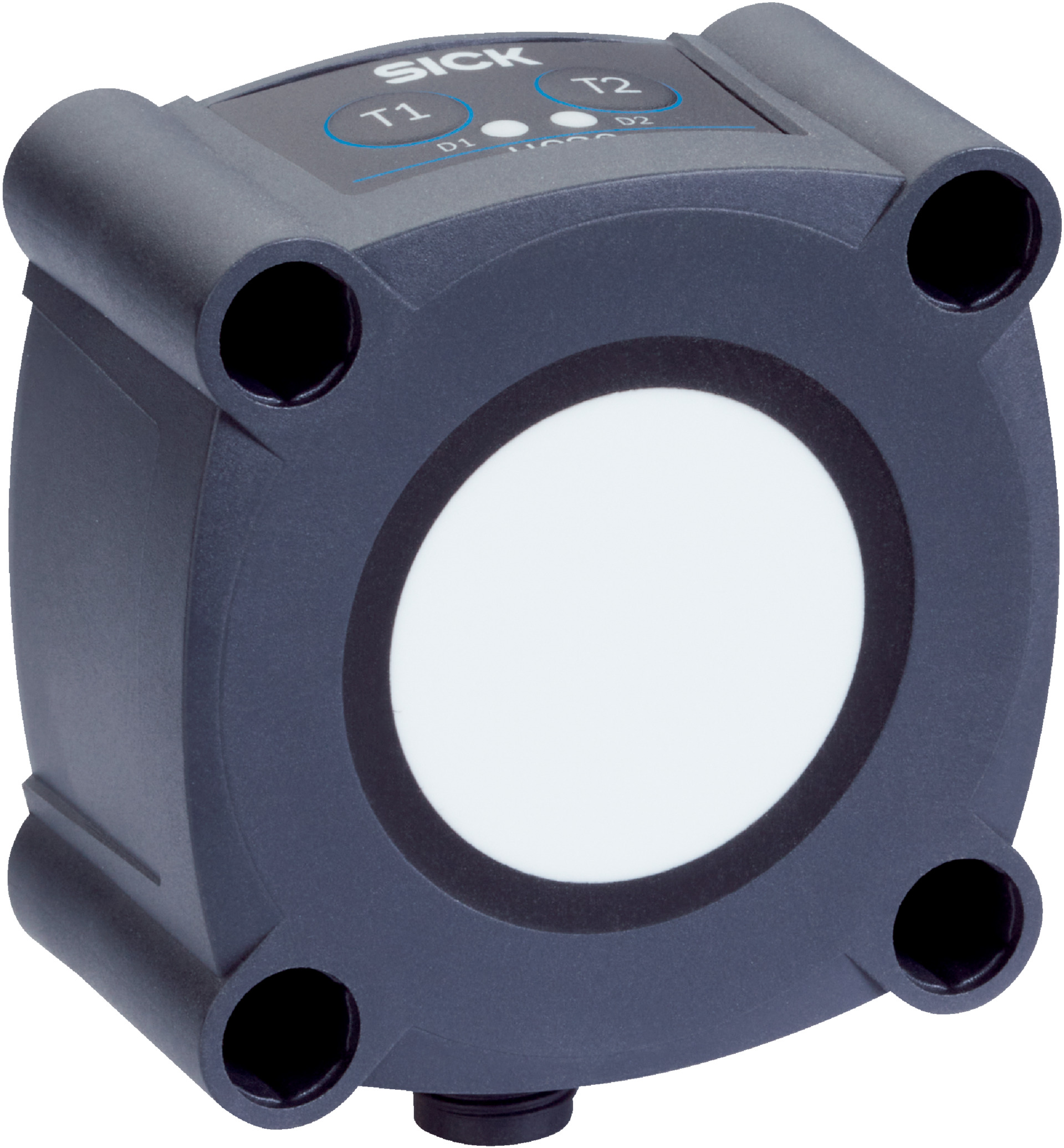

Ultrasonic Distance Sensor UC30-214164 | 350 mm to 5,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC30-214164 offers an impressive operating range from 350 mm to 5,000 mm, making it ideal for industrial automation and precise object detection. With a high resolution of ≥ 0.18 mm and an IP65/IP67 rated enclosure, this sensor ensures reliable performance in challenging environments. Perfect for applications requiring accurate distance measurement and monitoring, it features temperature compensation and low power consumption for enhanced efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation included
- Response time: 180 ms
- Switching frequency: 4 Hz
- Output time: 43 ms
- Ultrasonic frequency: 120 kHz
- Digital outputs: 2 NPN outputs, max current ≤ 200 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.2 W
- Initialization time: < 380 ms
- Indication: 2 LEDs
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection: Male M12, 5-pin connector
- Housing material: Plastic (PBT/PET), ultrasonic transducer with polyurethane foam and glass epoxy resin
- Dimensions (H x L x W): 62mm x 33mm x 62mm
- Weight: 0.18 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 0.18 mm
- Repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation for stable performance
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors without cross talk
- IP65 / IP67 rated enclosure for robust protection
- Low power consumption ≤ 1.2 W
- Fast response time of 180 ms and switching frequency of 4 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection and measurement
- Natural object detection in manufacturing processes
- Safety and monitoring systems requiring precise distance measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65/IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UC30-214164 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
