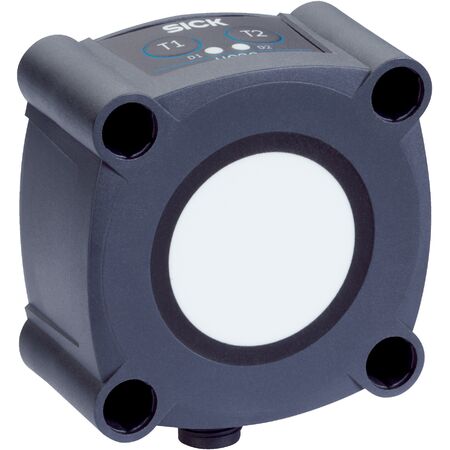

Ultrasonic Distance Sensor UC30-21416B | 350 mm to 5,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC30-21416B offers an impressive operating range from 350 mm to 5,000 mm, making it ideal for industrial automation and process control applications. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor ensures precise object detection. Its robust IP65/IP67 rated housing guarantees reliable performance in challenging environments, while the IO-Link V1.1 interface allows for easy integration and data management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation included
- Response time: 180 ms
- Switching frequency: 4 Hz
- Output time: 43 ms
- Ultrasonic frequency: 120 kHz
- Digital output: 1 push-pull (PNP/NPN), max 100 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.2 W
- Initialization time: < 380 ms
- Indication: 2 LEDs
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection: Male M12, 5-pin connector
- Housing material: Plastic (PBT/PET), ultrasonic transducer with polyurethane foam and glass epoxy resin
- Dimensions (H x L x W): 62mm x 33mm x 62mm
- Weight: 0.18 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- IO-Link V1.1 interface for process data, parameterization, diagnosis, and data storage
- Push-pull digital output (PNP/NPN) with maximum output current ≤ 100 mA
- Robust plastic housing with IP65/IP67 rating and protection class III
- Operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and distance measurement
- Process control with natural object targeting
- Environments requiring robust ultrasonic sensing with IP65/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with power consumption ≤ 1.2 W
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UC30-21416B ultrasonic sensor is available for immediate purchase, ideal for industrial automation and process control applications.
