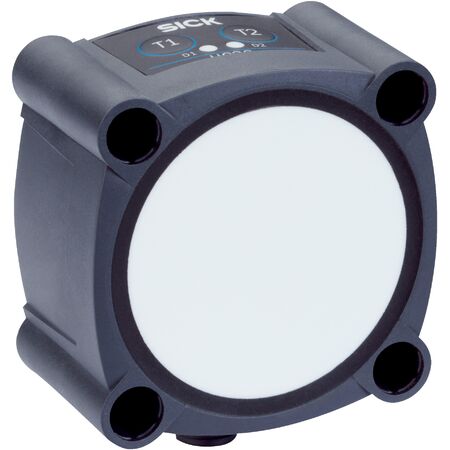

Ultrasonic Distance Sensor UC30-215162 | 600mm to 8000mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC30-215162 offers an impressive operating range from 600 mm to 8,000 mm, making it ideal for industrial automation and safety monitoring applications. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor ensures precise object detection and distance measurement. Its robust IP65/IP67 rated enclosure provides durability in harsh environments, while low power consumption enhances energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 600 mm to 6,000 mm and up to 8,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 240 ms
- Switching frequency: 3 Hz
- Output time: 60 ms
- Ultrasonic frequency: 80 kHz
- Digital outputs: 2 PNP outputs, max current ≤ 200 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.2 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male M12, 5-pin connector
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 62mm x 37mm x 62mm
- Weight: 0.24 kg
Key Features
- Operating range from 600 mm up to 8,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- IP65 / IP67 rated enclosure for robust protection
- Low power consumption of ≤ 1.2 W
- Fast response time of 240 ms and switching frequency of 3 Hz
- Digital outputs: 2 PNP outputs with maximum current ≤ 200 mA
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing and processing plants
- Safety and monitoring systems requiring precise ultrasonic sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65/IP67 rated housing extends product life and reduces waste
- Supports efficient automation which can reduce material waste and improve process efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UC30-215162 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
