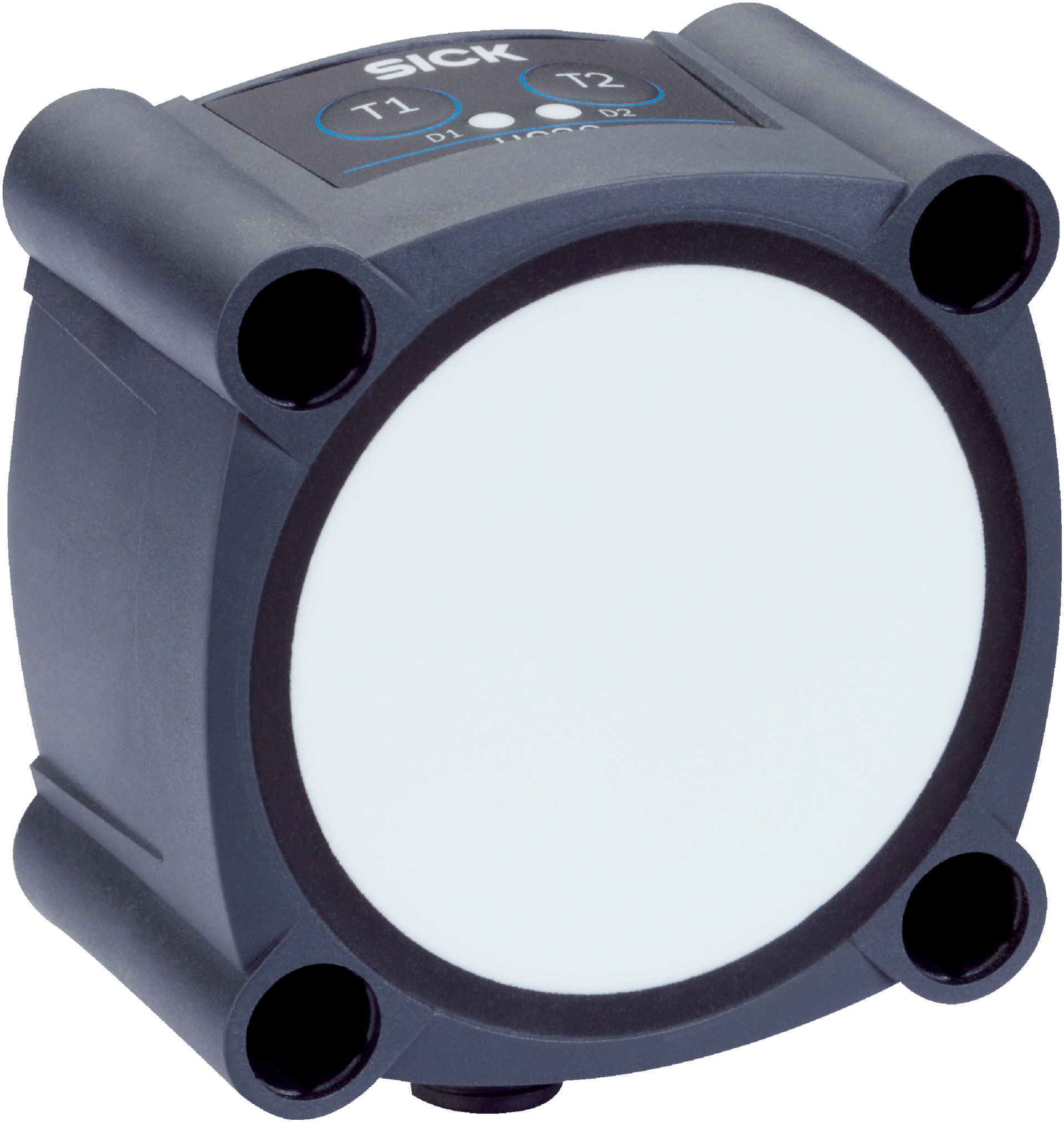

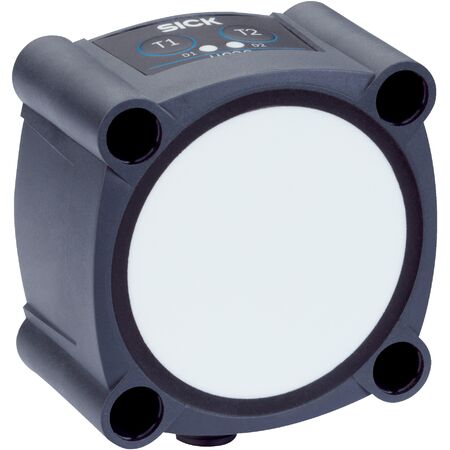

Ultrasonic Distance Sensor UC30-215163 | 600 mm to 8,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC30-215163 offers an impressive operating range from 600 mm to 8,000 mm, making it ideal for industrial automation and safety monitoring applications. With a high resolution of ≥ 0.18 mm and an IP65/IP67 rated enclosure, this sensor ensures reliable performance in challenging environments. Perfect for object detection, level measurement, and more, it features temperature compensation and low power consumption for enhanced efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 600 mm to 6,000 mm, up to 8,000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation: Yes
- Response time: 240 ms
- Output time: 60 ms
- Ultrasonic frequency: 80 kHz
- Analog output: 4 mA to 20 mA or 0 V to 10 V, 12 bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.2 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male M12, 5-pin connector
- Weight: 240 g
- Dimensions (H x L x W): 62mm x 37mm x 62mm
- Weight: 0.24 kg
Key Features
- Operating range from 600 mm to 8,000 mm
- High resolution of ≥ 0.18 mm
- Repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation included
- Response time of 240 ms and output time of 60 ms
- Ultrasonic frequency of 80 kHz
- Multiple adjustable measurement filters and teach-in functions
- Synchronization of up to 50 sensors without cross talk
- IP65 / IP67 rated enclosure for robust protection
- Supply voltage DC 9 V to 30 V with low power consumption ≤ 1.2 W
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, wiring, and configuration for optimal performance and safety.
Applications
- Industrial automation for distance measurement
- Object detection and positioning
- Level measurement in tanks and silos
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65/IP67 housing extends product life and reduces waste
- Non-contact measurement reduces wear and maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UC30-215163 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
