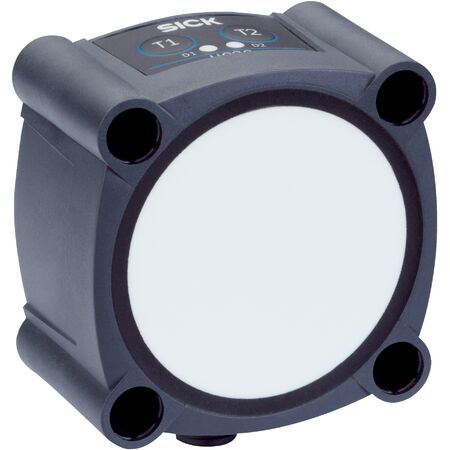

Ultrasonic Distance Sensor UC30-215164 | 600mm to 8000mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC30-215164 offers an impressive operating range from 600 mm to 8,000 mm, with a high resolution of ≥ 0.18 mm and repeatability of ± 0.15%. Designed for industrial automation, this sensor is perfect for object detection and distance measurement, ensuring precise performance in harsh environments with its robust IP65/IP67 rated enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 600 mm to 6,000 mm and 8,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 240 ms
- Switching frequency: 3 Hz
- Output time: 60 ms
- Ultrasonic frequency: 80 kHz
- Digital outputs: 2 NPN, max current ≤ 200 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.2 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male M12, 5-pin connector
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 62mm x 37mm x 62mm
- Weight: 0.24 kg
Key Features
- Operating range from 600 mm up to 8,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- Robust IP65 / IP67 rated enclosure for harsh environments
- Low power consumption ≤ 1.2 W
- Fast response time of 240 ms and switching frequency of 3 Hz
- Digital outputs: 2 NPN outputs with maximum current ≤ 200 mA
- Temperature compensation for stable performance
- LED indication for operational status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing and processing environments
- Safety and monitoring systems requiring precise ultrasonic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UC30-215164 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
