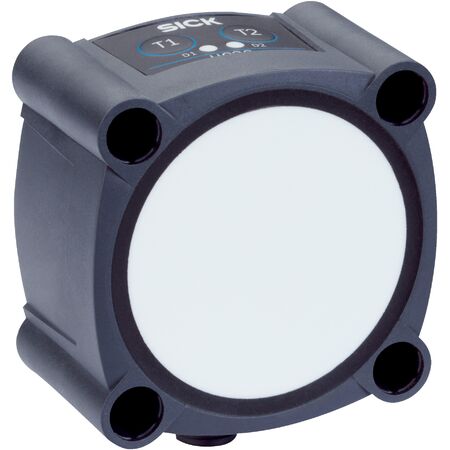

Ultrasonic Distance Sensor UC30-21516B | 600mm to 8000mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC30-21516B offers an impressive operating range from 600 mm to 8,000 mm, making it ideal for industrial automation and safety monitoring applications. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor ensures precise object detection in harsh environments. Its robust IP65/IP67 enclosure and low power consumption make it a reliable choice for process control and natural object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 600 mm to 6,000 mm, extendable to 8,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 240 ms
- Switching frequency: 3 Hz
- Ultrasonic frequency: 80 kHz
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.2 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male connector, M12, 5-pin
- Operating temperature: –25 °C to +70 °C
- Storage temperature: –40 °C to +85 °C
- Dimensions (H x L x W): 62mm x 37mm x 62mm
- Weight: 0.24 kg
Key Features
- Operating range from 600 mm to 6,000 mm, extendable to 8,000 mm
- High resolution of ≥ 0.18 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- IO-Link V1.1 interface for process data, parameterization, diagnosis, and data storage
- Push-pull digital output (PNP/NPN) with maximum output current ≤ 100 mA
- Robust IP65/IP67 rated enclosure suitable for harsh environments
- Operating temperature range from –25 °C to +70 °C
- Low power consumption ≤ 1.2 W and fast response time of 240 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Process control with natural object detection
- Safety-related monitoring in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK UC30-21516B ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
