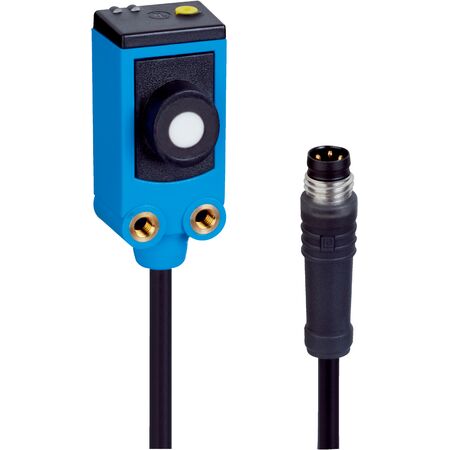

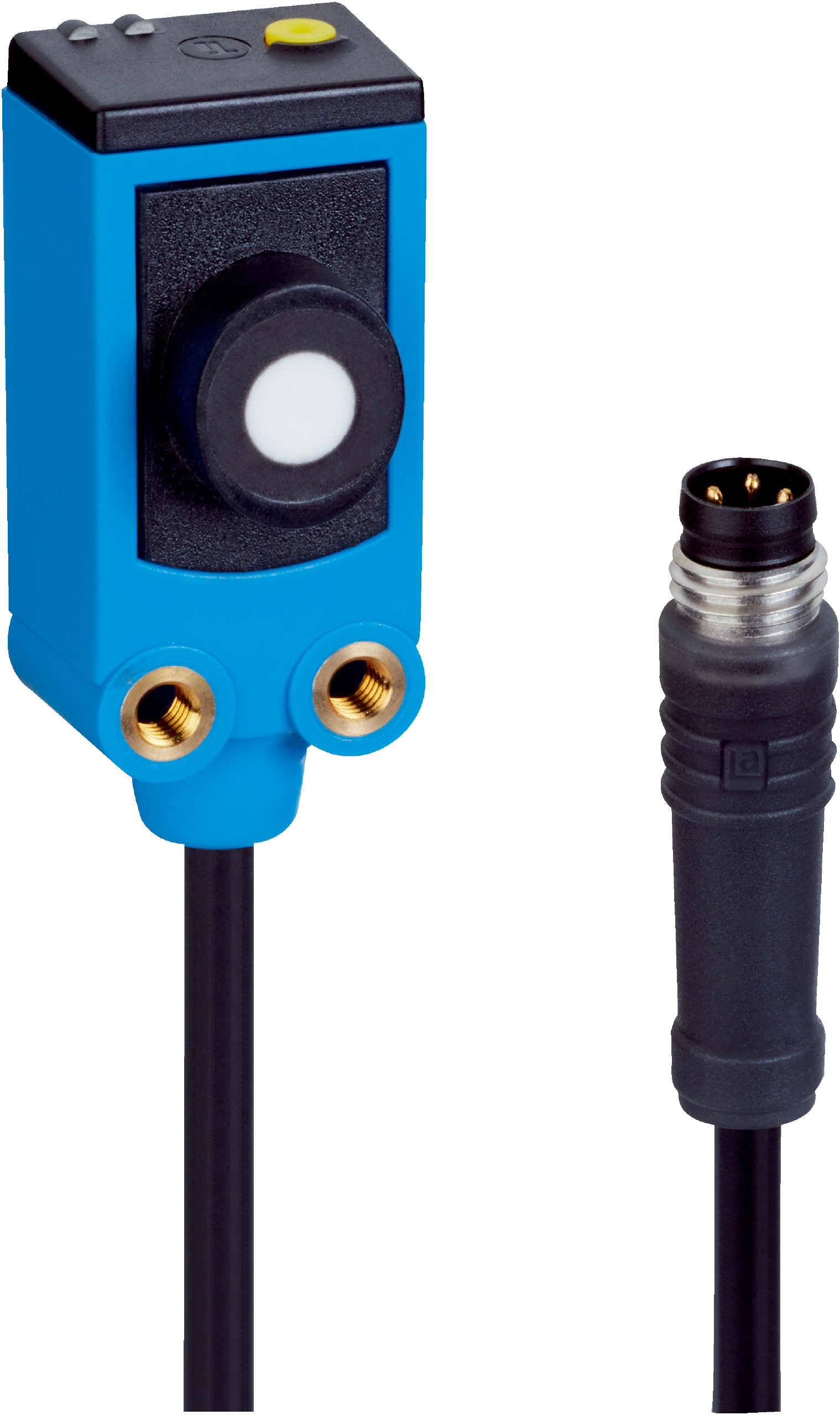

Ultrasonic Distance Sensor UC4-1354B | 13mm to 150mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC4-1354B offers an operating range from 13 mm to 150 mm, extendable to 250 mm, with a high resolution of ≥ 0.1 mm and measurement accuracy of ± 1%. Ideal for industrial automation and precise object detection, this robust sensor features an IP65/IP67 rated enclosure, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 13 mm to 150 mm, extendable to 250 mm
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 24 ms
- Switching frequency: 30 Hz
- Output time: 8 ms
- Ultrasonic frequency: 380 kHz
- Digital output: Push-pull PNP/NPN, max current ≤ 100 mA
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 0.75 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection: Cable with male M8, 3-pin connector
- Operating temperature: –25 °C to +70 °C
- Storage temperature: –40 °C to +85 °C
- Dimensions (H x L x W): 40mm x 17mm x 16mm
- Weight: 0.1 kg
Key Features
- Operating range from 13 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.1 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- IO-Link V1.1 interface for process data, parameterization, diagnosis, and data storage
- Push-pull digital output (PNP/NPN) with maximum output current ≤ 100 mA
- Fast response time of 24 ms and switching frequency of 30 Hz
- Robust IP65/IP67 rated enclosure suitable for harsh environments
- Temperature compensation for reliable operation from –25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection and measurement
- Process control requiring precise distance measurement
- Environments needing robust sensors with IP65/IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 0.75 W reduces energy usage
- Durable design minimizes waste and replacement frequency
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UC4-1354B Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
