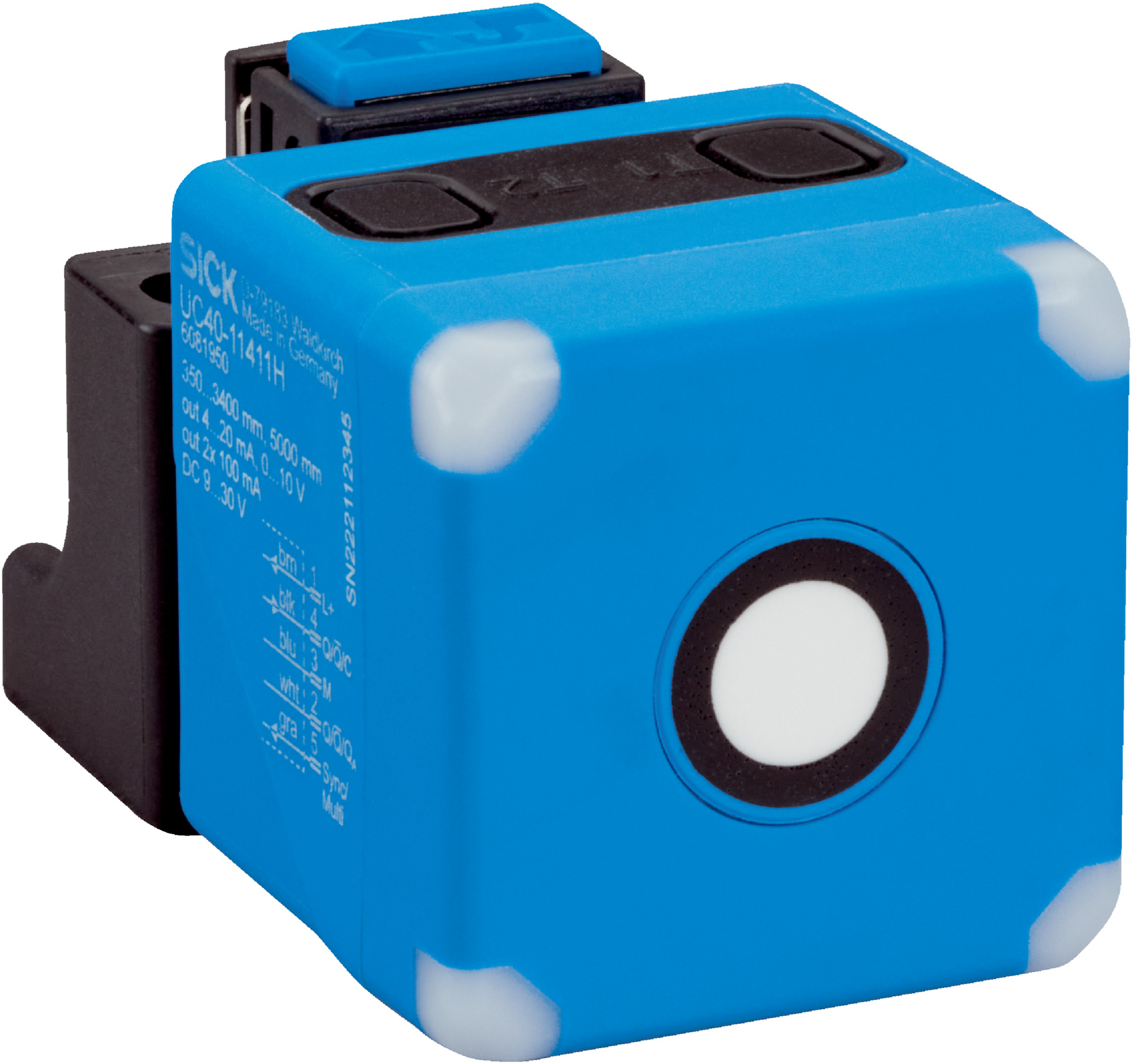

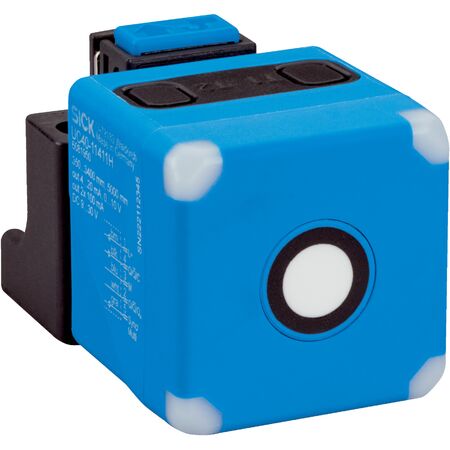

Ultrasonic Distance Sensor UC40-11211H | 65 mm to 350 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC40-11211H offers an operating range from 65 mm to 350 mm, extendable to 600 mm, with a high resolution of ≥ 0.1 mm and measurement accuracy of ± 1%. Perfect for industrial automation and safety monitoring, this sensor supports IO-Link V1.1 for enhanced data management and features a robust IP65/IP67 enclosure for reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 65 mm to 350 mm, extendable to 600 mm
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 64 ms
- Switching frequency: 10 Hz
- Ultrasonic frequency: 400 kHz
- Output time: 16 ms
- Digital output: 1 push-pull (PNP/NPN), max 100 mA
- Analog output: Current 4 mA to 20 mA (≤ 500 Ω), Voltage 0 V to 10 V (≥ 100,000 Ω), 12 bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.5 W
- Enclosure rating: IP65, IP67
- Housing material: Plastic (PA 66), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Connection type: Male connector, M12, 5-pin
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.12 kg
Key Features
- Operating range from 65 mm to 350 mm, extendable to 600 mm
- High resolution of ≥ 0.1 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Supports IO-Link V1.1 for process data, parameterization, diagnosis, and data storage
- Configurable digital and analog outputs with automatic selection between current and voltage output
- Synchronization capability for up to 50 sensors with no cross talk
- Robust IP65 and IP67 rated enclosure for harsh environments
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Process control requiring precise ultrasonic sensing
- Safety-related monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 1.5 W)
- Durable design reduces waste and replacement frequency
- Supports precise measurement reducing material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UC40-11211H ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
