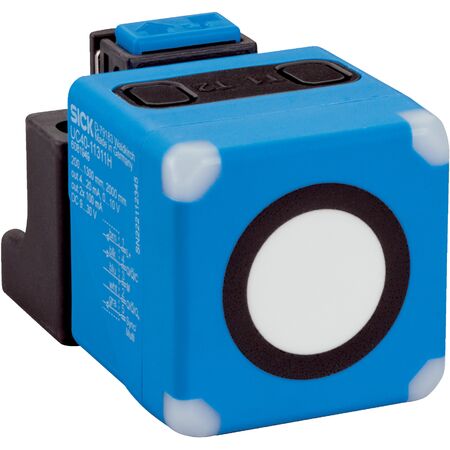

Ultrasonic Distance Sensor UC40-11311B | 200 mm to 2000 mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC40-11311B offers an impressive operating range from 200 mm to 1300 mm, extendable to 2000 mm, making it ideal for industrial automation and precise object detection. With a high resolution of ≥ 1 mm and a repeatability of ± 0.15%, this sensor ensures accurate measurements in various applications, including level measurement in tanks and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 200 mm to 1300 mm, extendable to 2000 mm
- Resolution: ≥ 1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 96 ms
- Switching frequency: 7 Hz
- Ultrasonic frequency: 200 kHz
- Output time: 24 ms
- Digital output: 1 push-pull (PNP/NPN), max 100 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.5 W
- Enclosure rating: IP65, IP67
- Housing material: Plastic (PA 66), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Connection: Male M12, 5-pin connector
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.12 kg
Key Features
- Operating range from 200 mm to 1300 mm, extendable to 2000 mm
- High resolution of ≥ 1 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation for reliable measurements
- Response time of 96 ms and switching frequency of 7 Hz
- Adjustable operating modes and measurement filters
- Synchronization of up to 50 sensors without cross talk
- IO-Link V1.1 interface for process data, parameterization, and diagnosis
- Push-pull digital output (PNP/NPN) with max current ≤ 100 mA
- Robust IP65/IP67 rated plastic housing
- Wide operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for distance measurement
- Object detection in manufacturing processes
- Level measurement in tanks and silos
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with power consumption ≤ 1.5 W
- Durable design reduces waste and replacement frequency
- Supports precise measurement reducing material waste in processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UC40-11311B Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
