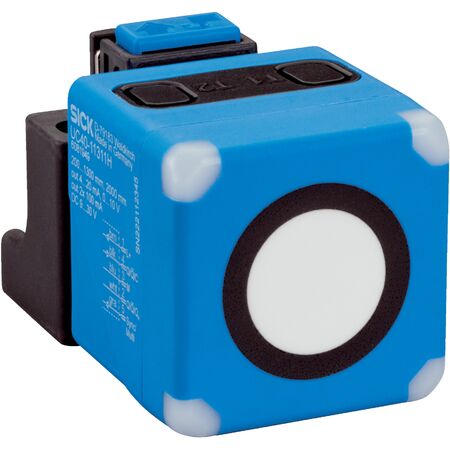

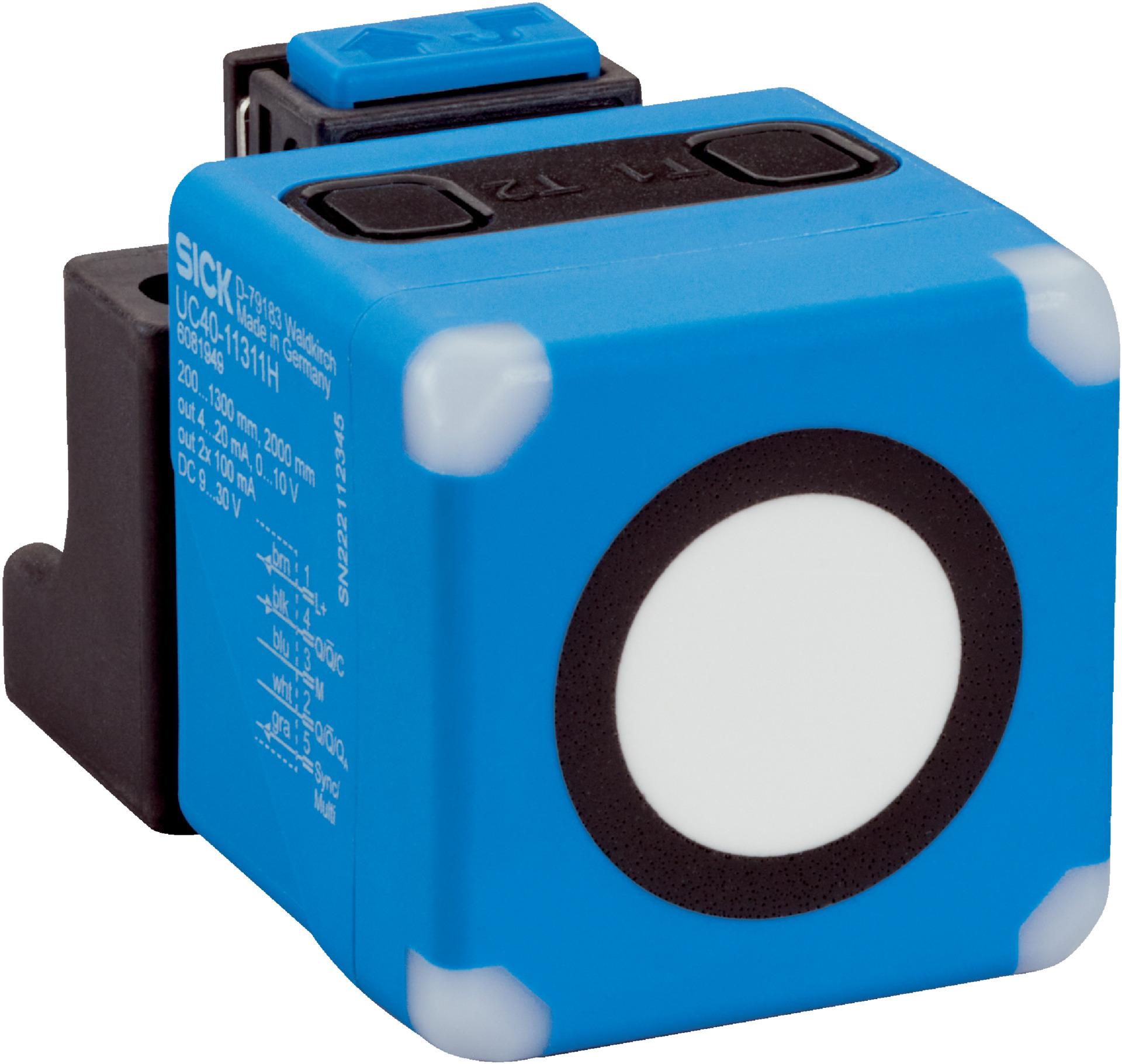

Ultrasonic Distance Sensor UC40-11311H | 200 mm to 2,000 mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC40-11311H offers an impressive operating range from 200 mm to 2,000 mm, making it ideal for industrial automation and process control applications. With a high resolution of ≥ 1 mm and ± 0.15% repeatability, this sensor ensures accurate distance measurement. Its robust IP65/IP67 rated enclosure guarantees reliable performance in harsh environments, making it a perfect choice for safety and quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 200 mm to 1,300 mm, extendable to 2,000 mm
- Resolution: ≥ 1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 96 ms
- Switching frequency: 7 Hz
- Ultrasonic frequency: 200 kHz
- Output time: 24 ms
- Digital output: 1 push-pull (PNP/NPN), max 100 mA
- Analog output: 4 mA to 20 mA current or 0 V to 10 V voltage, 12-bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.5 W
- Enclosure rating: IP65, IP67
- Protection class: III
- Connection: Male M12, 5-pin connector
- Housing material: Plastic (PA 66) with polyurethane foam and glass epoxy resin ultrasonic transducer
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.12 kg
Key Features
- Operating range from 200 mm to 1,300 mm and up to 2,000 mm
- High resolution of ≥ 1 mm with ± 0.15% repeatability
- Measurement accuracy of ± 1%
- Temperature compensation for reliable performance
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization and multiplexing support for up to 50 sensors without cross talk
- IO-Link V1.1 interface for process data, parameterization, and diagnostics
- Configurable digital and analog outputs with automatic selection between current and voltage
- Robust IP65 and IP67 rated enclosure for harsh environments
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical wiring standards to ensure safety and optimal performance.
Applications
- Industrial automation for object detection and distance measurement
- Process control in manufacturing environments
- Level measurement and monitoring
- Safety and quality control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 1.5 W)
- Durable design reduces waste and replacement frequency
- Compliant with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UC40-11311H Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and process control applications.
