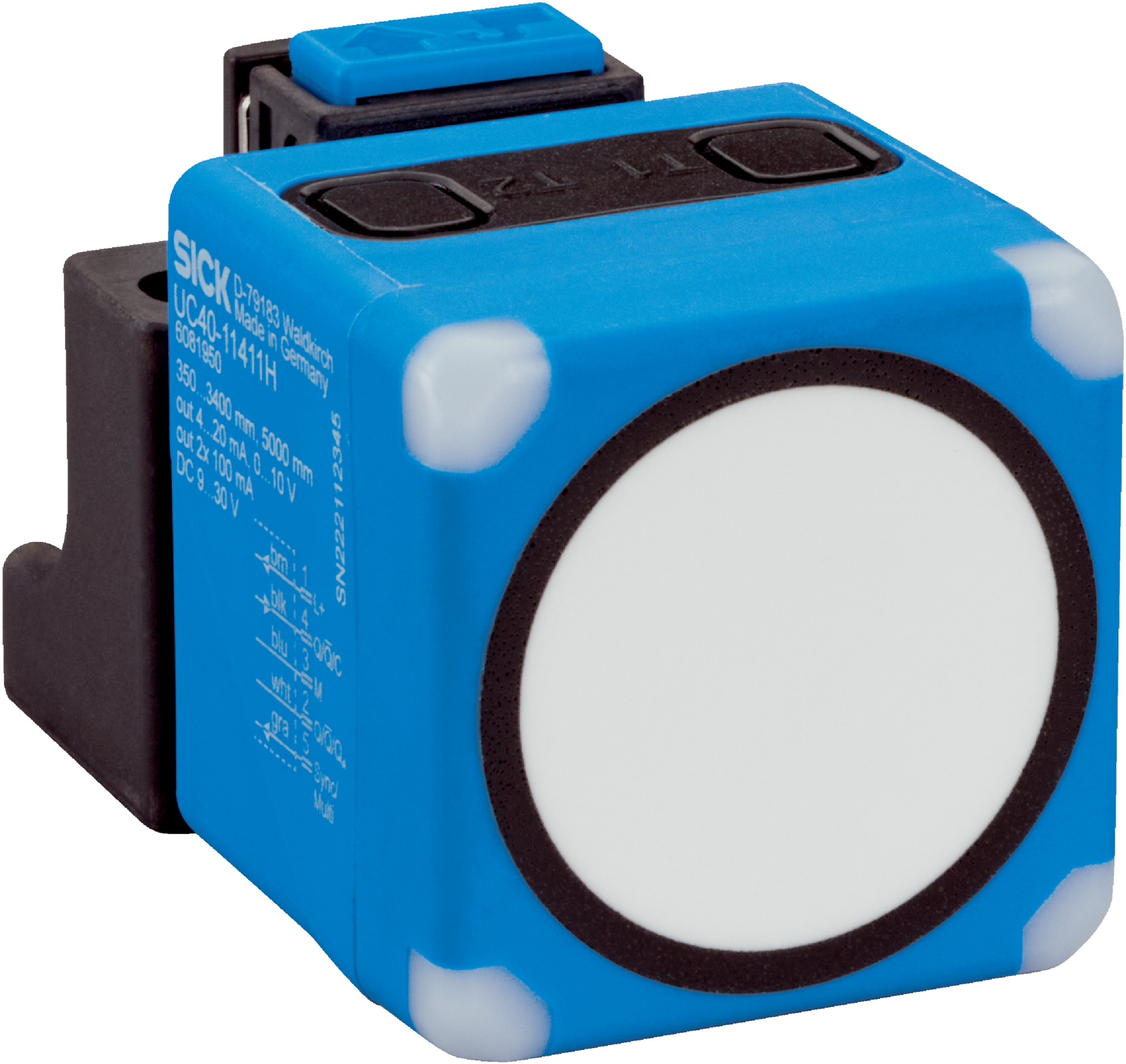

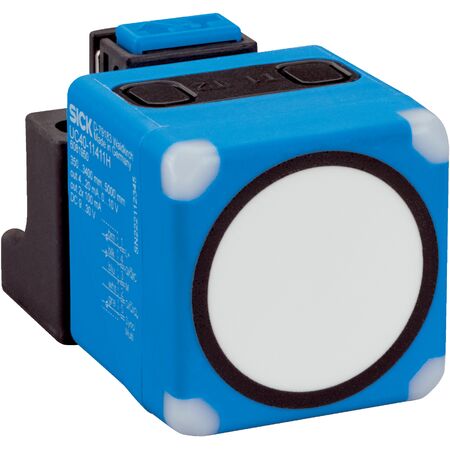

Ultrasonic Distance Sensor UC40-11411B | 350 mm to 5,000 mm Range | IP65 & IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC40-11411B offers an impressive operating range from 350 mm to 5,000 mm, making it ideal for industrial automation and precise distance measurement applications. With a high resolution of ≥ 1 mm and an IP65/IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for object detection and level monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Resolution: ≥ 1 mm
- Repeatability: ± 0.15 %
- Measurement accuracy: ± 1 %
- Response time: 160 ms
- Switching frequency: 4 Hz
- Output time: 41.6 ms
- Ultrasonic frequency: 120 kHz
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.5 W
- Initialization time: < 300 ms
- Indication: 4 LEDs
- Enclosure rating: IP65, IP67
- Protection class: III
- Connection type: Male M12, 5-pin connector
- Digital output: 1 push-pull (PNP/NPN), max 100 mA
- Multifunctional input: 1 x MF
- Hysteresis: 50 mm
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.13 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 1 mm
- Repeatability of ± 0.15 %
- Measurement accuracy of ± 1 %
- Temperature compensation included
- Response time of 160 ms
- Switching frequency of 4 Hz
- Adjustable operating modes and measurement filters
- Synchronization of up to 50 sensors without cross talk
- IP65 and IP67 rated enclosure for robust protection
- Push-pull digital output (PNP/NPN) with max 100 mA current
- IO-Link V1.1 interface for process data, parameterization, and diagnosis
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for distance measurement
- Object detection in manufacturing processes
- Level measurement and monitoring
- Safety and quality control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable IP65/IP67 housing extends product life and reduces waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK UC40-11411B Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
