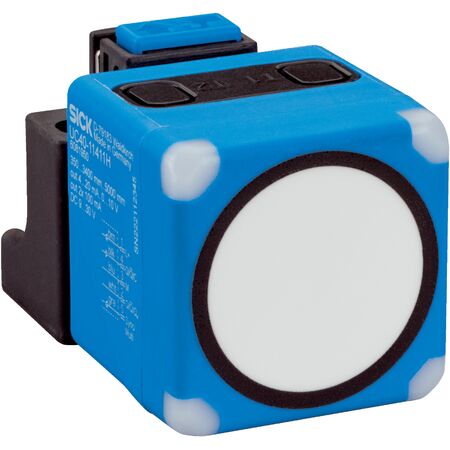

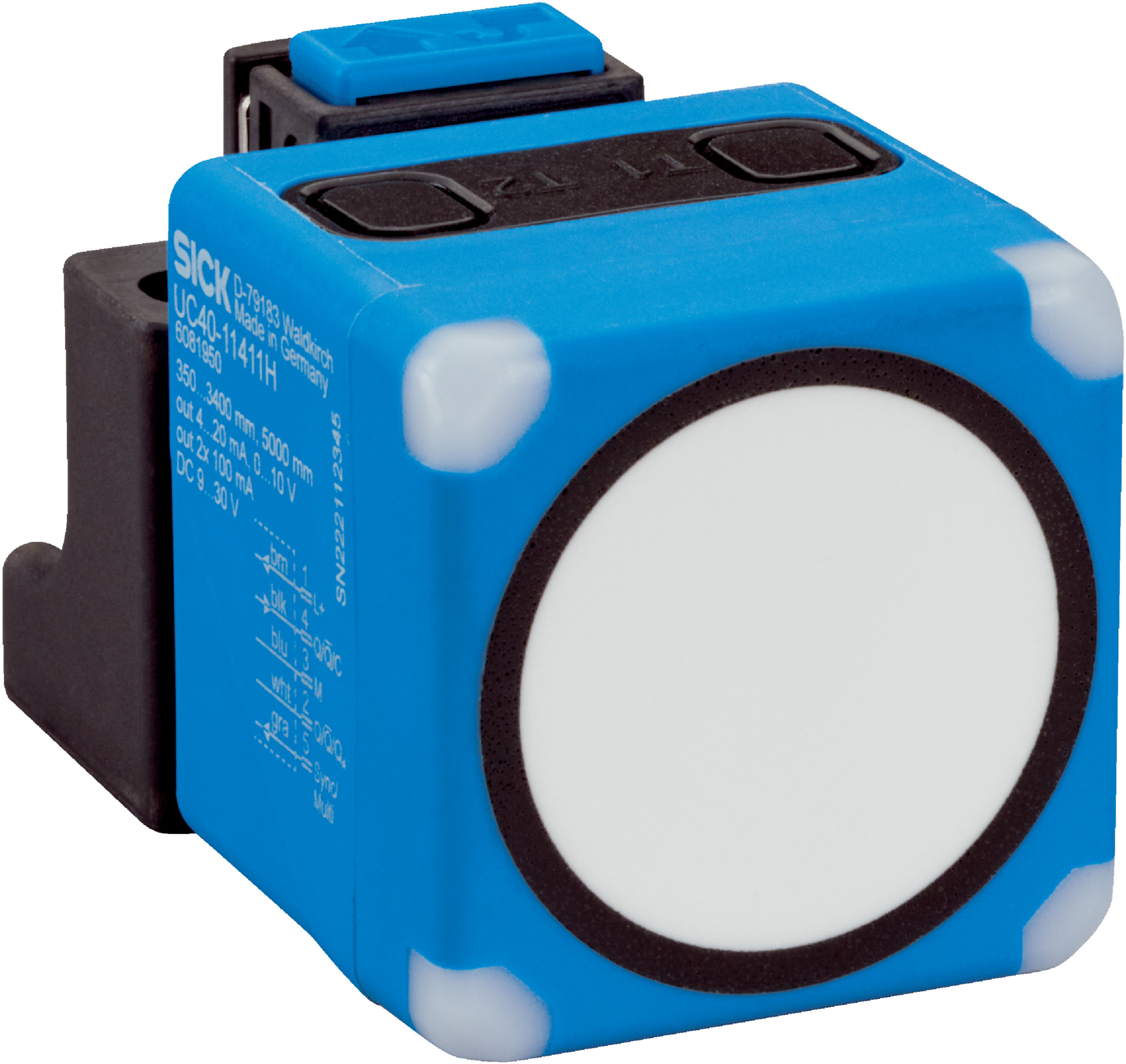

Ultrasonic Distance Sensor UC40-11411H | 350 mm to 5,000 mm Range | IP65 & IP67 Rated | by SICK
The Ultrasonic Distance Sensor UC40-11411H offers an impressive operating range from 350 mm to 5,000 mm, making it ideal for industrial automation and precise distance measurement applications. With a high resolution of ≥ 1 mm and measurement accuracy of ± 1%, this sensor is perfect for object detection, level measurement, and safety monitoring in manufacturing processes. Its robust design features IP65 and IP67 ratings, ensuring durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Resolution: ≥ 1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 160 ms
- Switching frequency: 4 Hz
- Ultrasonic frequency: 120 kHz
- Output time: 41.6 ms
- Digital output: 1 push-pull (PNP/NPN), max 100 mA
- Analog output: 4 mA to 20 mA (≤ 500 Ω) or 0 V to 10 V (≥ 100,000 Ω)
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.5 W
- Enclosure rating: IP65, IP67
- Housing material: Plastic (PA 66), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Connection type: Male M12, 5-pin connector
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.13 kg
Key Features
- Operating range from 350 mm to 3,400 mm, extendable to 5,000 mm
- High resolution of ≥ 1 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Supports IO-Link V1.1 for process data, parameterization, diagnosis, and data storage
- Configurable digital and analog outputs with automatic selection between current and voltage output
- Synchronization capability for up to 50 sensors with no cross talk
- Robust plastic housing with IP65 and IP67 protection ratings
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and IO-Link configuration.
Applications
- Industrial automation for distance measurement
- Object detection and positioning
- Level measurement in tanks and silos
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 1.5 W)
- Durable design reduces waste and replacement frequency
- Supports precise measurement reducing material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UC40-11411H Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
