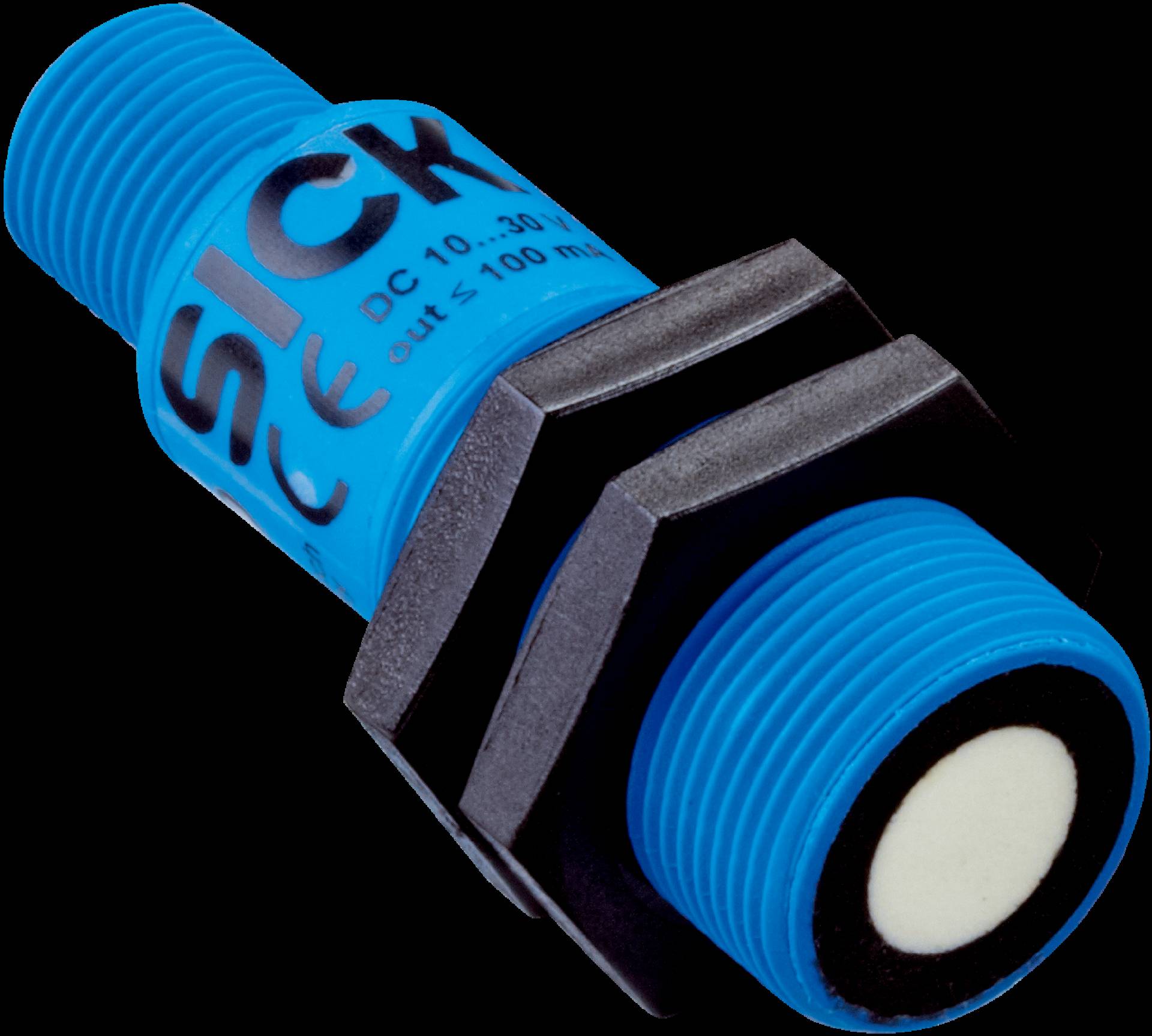

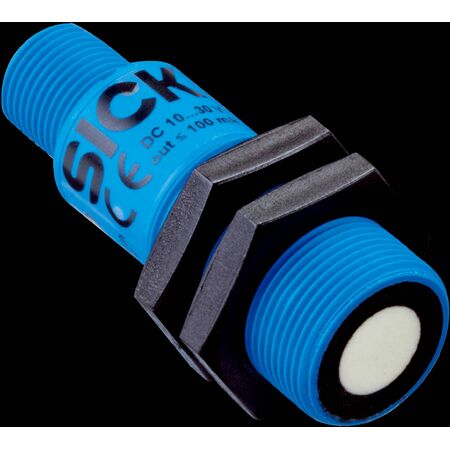

Ultrasonic Distance Sensor UM18 | 120mm to 1000mm Range | 200kHz Frequency | NPN Output | by SICK
The Ultrasonic Distance Sensor UM18 offers reliable measurement from 120mm to 1000mm, making it ideal for industrial automation and machine integration. With a 200kHz measuring frequency and NPN digital output, this sensor excels in harsh environments, ensuring accurate distance measurement regardless of material color or ambient light conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 120mm to 1000mm Range | 200kHz Frequency | NPN Output | by SICK
Brand: SICK
SKU: 6048422
Alternatively Known As: Ultrasonic Distance Sensor UM18, SICK UM18 Sensor, M18 Ultrasonic Sensor
Technical Specifications
- Minimum measuring range: 120 mm
- Maximum measuring range: 1000 mm
- Measuring frequency: 200 kHz
- Switching frequency: 10 Hz
- Response time: 80 ms
- Type of digital output: NPN
- Screwed joint: M12, 4-pin
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Material handling and packaging systems
- Level measurement and presence detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
