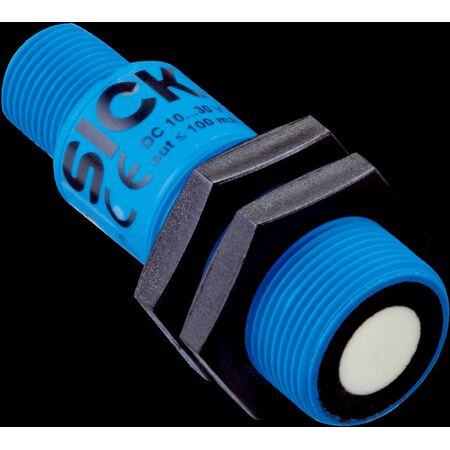

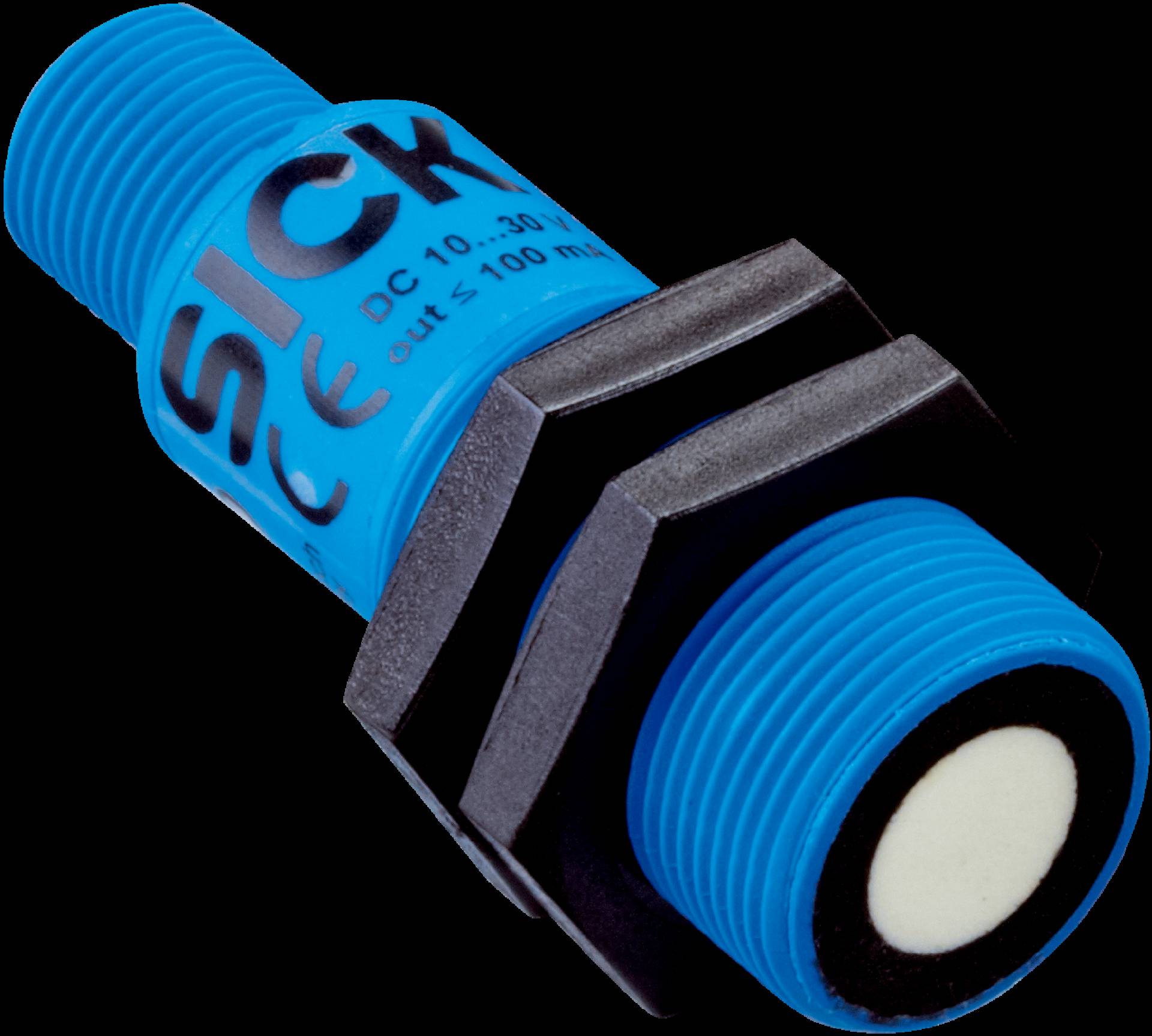

Ultrasonic Distance Sensor UM18 | 120mm to 1000mm Range | PNP Output | 200kHz Frequency | by SICK
The Ultrasonic Distance Sensor UM18 offers reliable measurement from 120mm to 1000mm, making it ideal for industrial automation and machine integration. With a PNP output and a measuring frequency of 200kHz, this sensor excels in harsh environments, ensuring accurate distance measurement regardless of material color or ambient light. Its durable design and energy-efficient technology make it a perfect choice for material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 120mm to 1000mm Range | PNP Output | 200kHz Frequency | by SICK
Brand: SICK
SKU: 6048420
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, SICK ultrasonic sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 120 mm
- Maximum measuring range: 1000 mm
- Type of digital output: PNP
- Measuring frequency: 200 kHz
- Switching frequency: 10 Hz
- Response time: 80 ms
- Screwed joint: M12, 4-pin
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Material handling and packaging systems
- Level measurement and presence detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
