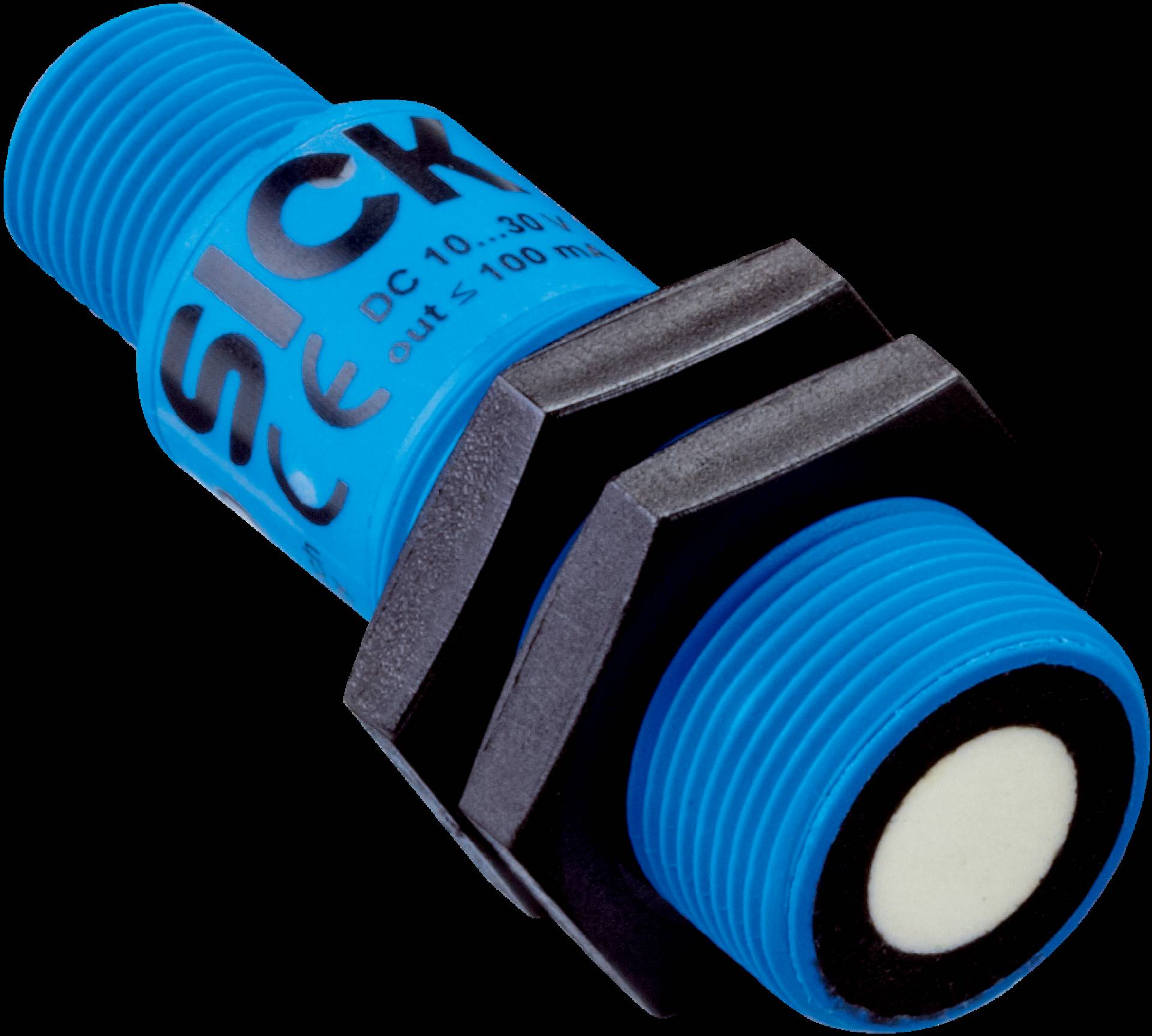

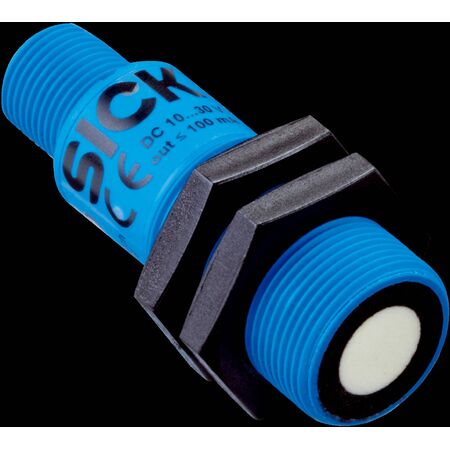

Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | 380kHz Frequency | IO-Link Interface | by SICK
The Ultrasonic Distance Sensor UM18 offers reliable measurement from 20mm to 150mm, making it ideal for industrial automation and machine integration. With a 380kHz measuring frequency and versatile IO-Link interface, this sensor excels in harsh environments, ensuring accurate distance measurement regardless of material color or transparency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | 380kHz Frequency | IO-Link Interface | by SICK
Brand: SICK
SKU: 6072871
Alternatively Known As: Ultrasonic Distance Sensor UM18, SICK UM18 Sensor, M18 Ultrasonic Sensor
Technical Specifications
- Minimum measuring range: 20 mm
- Maximum measuring range: 150 mm
- Measuring frequency: 380 kHz
- Response time: 32 ms
- Screwed joint: M12, 4-pin
- Type of analog output: Current output
- Available in metal or plastic housing
- Interfaces include IO-Link and push-pull switching outputs
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Applications needing measurement regardless of material color or transparency
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
