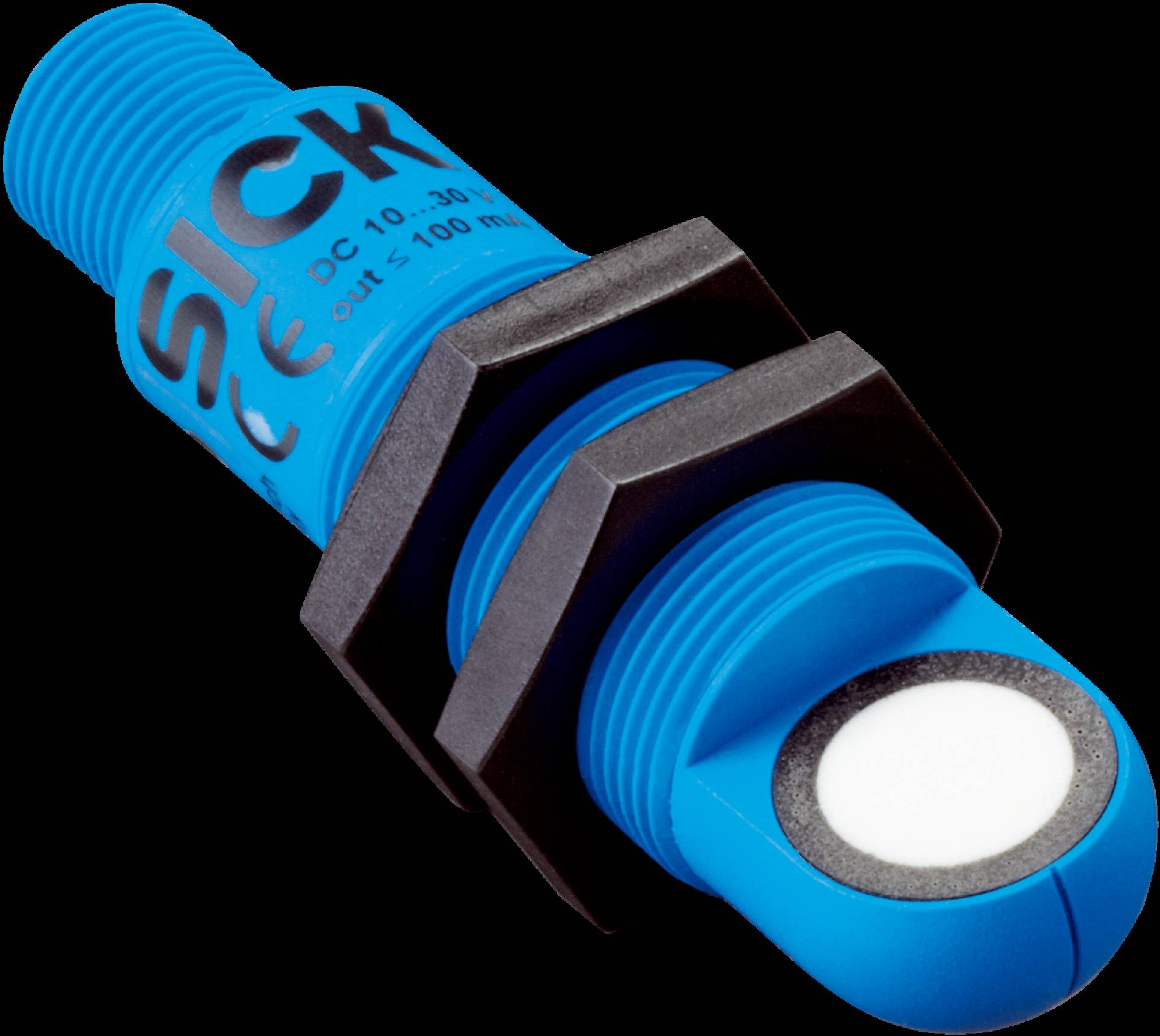

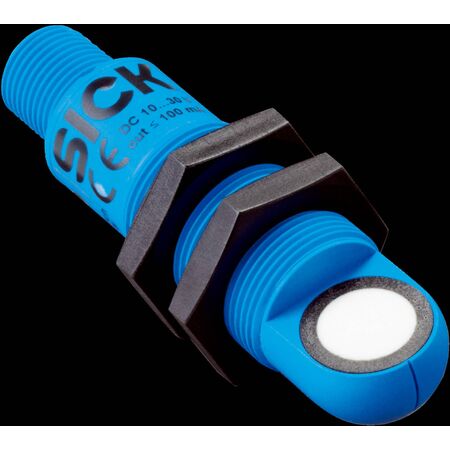

Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | 380kHz Frequency | Metal or Plastic Housing | by SICK
The Ultrasonic Distance Sensor UM18 offers reliable measurement from 20mm to 150mm, making it ideal for industrial automation and machine integration. With a 380kHz measuring frequency and robust metal or plastic housing, this sensor is immune to dirt, dust, and humidity, ensuring accurate performance in harsh environments. Perfect for applications in material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | 380kHz Frequency | Metal or Plastic Housing | by SICK
Brand: SICK
SKU: 6072874
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, SICK ultrasonic sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 20 mm
- Maximum measuring range: 150 mm
- Measuring frequency: 380 kHz
- Response time: 32 ms
- Screwed joint: M12, 4-pin
- Type of analog output: voltage output
- Housing: metal or plastic M18
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Material handling and packaging systems
- Level measurement and presence detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available for immediate purchase, ideal for industrial automation and machine integration applications.
