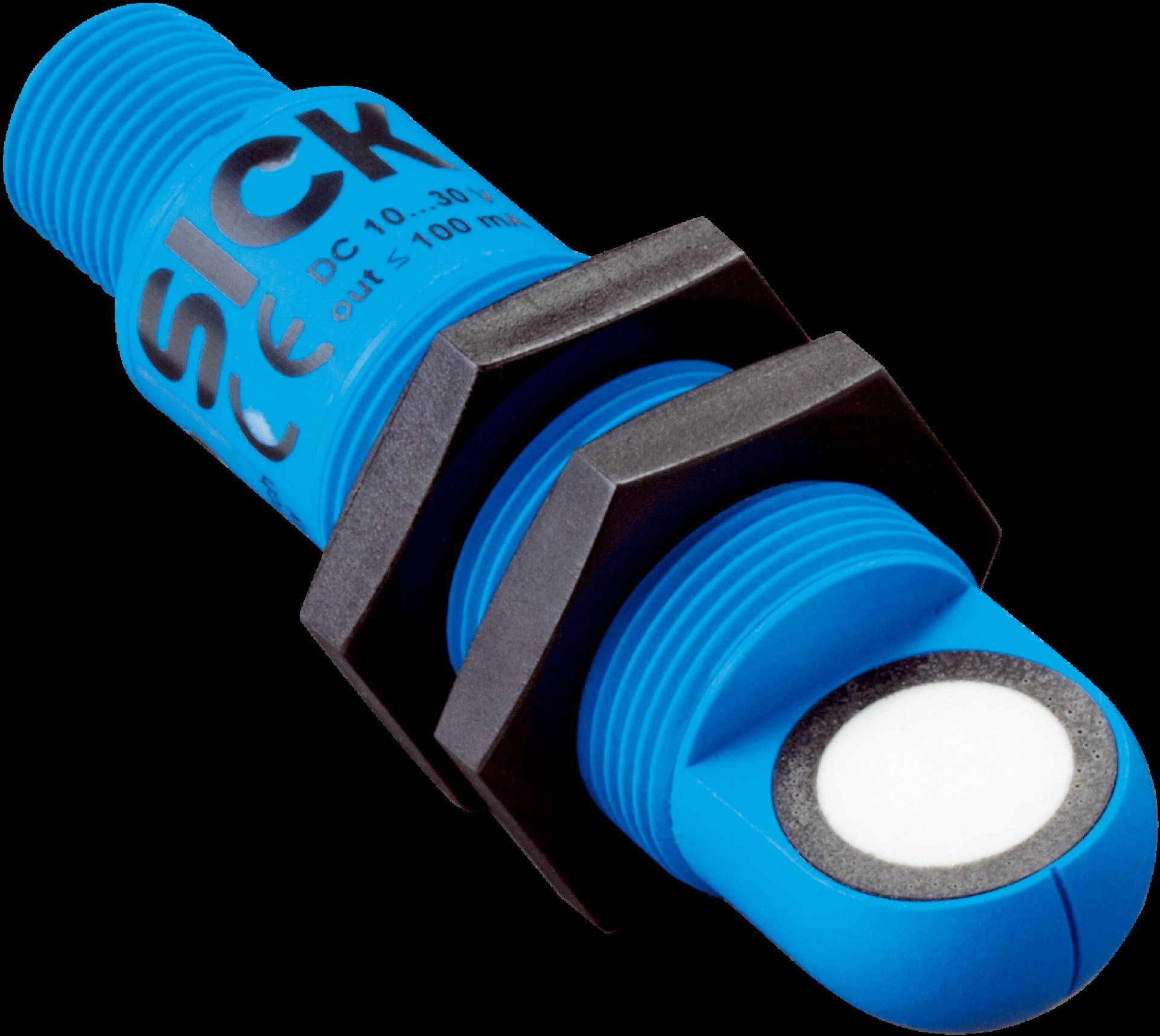

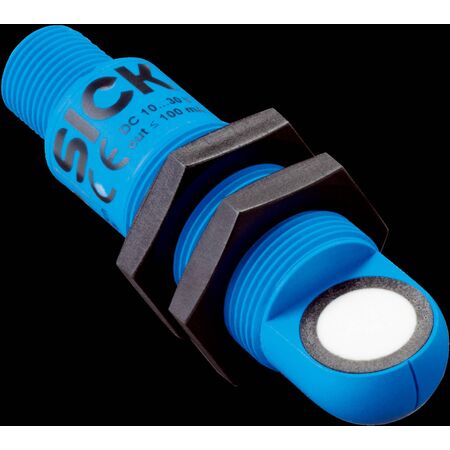

Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | 380kHz Frequency | by SICK
The UM18 Ultrasonic Distance Sensor is designed for precise distance measurement in industrial automation, featuring a measuring range from 20mm to 150mm and a frequency of 380kHz. Its robust design ensures reliable performance in environments with dust, humidity, or fog, making it ideal for machine integration and object detection applications. With versatile interfaces including IO-Link, this sensor is perfect for various industrial needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | 380kHz Frequency | by SICK
Brand: SICK
SKU: 6072872
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, SICK ultrasonic sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 20 mm
- Maximum measuring range: 150 mm
- Measuring frequency: 380 kHz
- Response time: 32 ms
- Screwed joint: M12, 4-pin
- Type of analog output: Current output
- Housing: Metal or plastic M18
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for distance measurement
- Machine integration requiring reliable object detection
- Environments with dust, humidity, or fog
- Applications needing analog or push-pull switching outputs with IO-Link
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration requiring reliable distance measurement.
