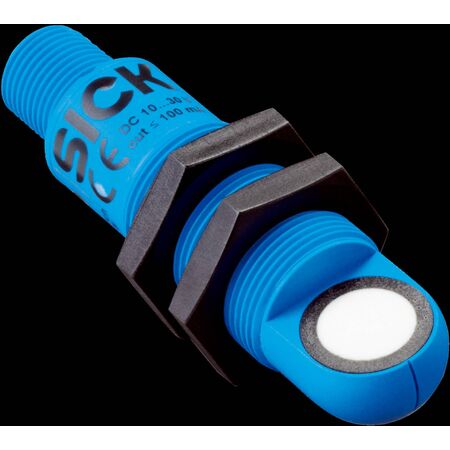

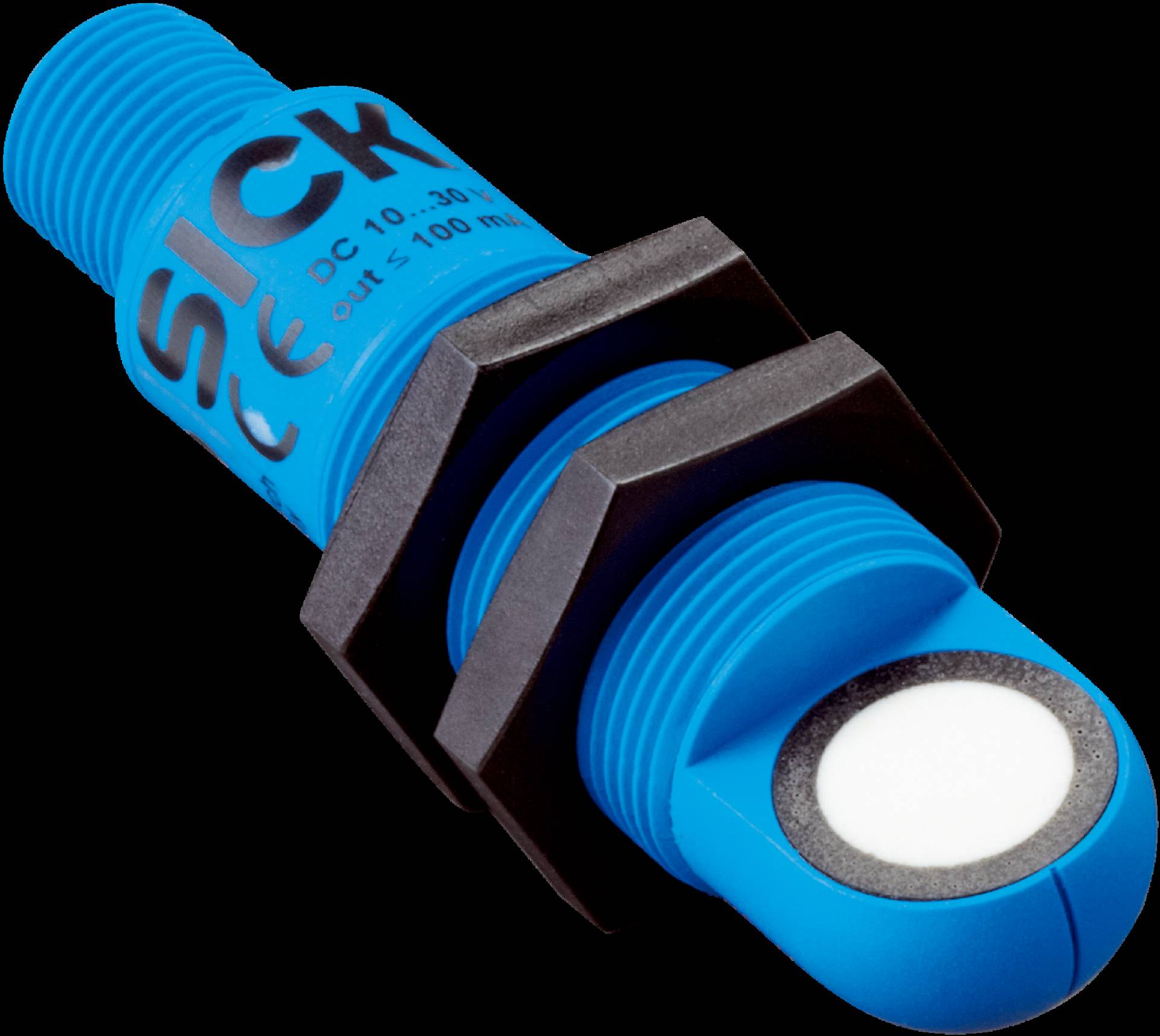

Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | NPN Output | @Each by SICK
The Ultrasonic Distance Sensor UM18 is designed for precise distance measurement in industrial automation, featuring a measuring range from 20mm to 150mm and a reliable NPN digital output. Ideal for harsh environments, this sensor is immune to dirt, dust, and humidity, ensuring accurate readings regardless of material color or transparency. Perfect for machine integration and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | NPN Output | @Each by SICK
Brand: SICK
SKU: 6048411
Alternatively Known As: Ultrasonic Distance Sensor UM18, SICK UM18 Sensor, M18 Ultrasonic Sensor
Technical Specifications
- Minimum measuring range: 20 mm
- Maximum measuring range: 150 mm
- Measuring frequency: 380 kHz
- Switching frequency: 25 Hz
- Response time: 32 ms
- Type of digital output: NPN
- Screwed joint: M12, 4-pin
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Applications needing measurement regardless of material color or transparency
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
