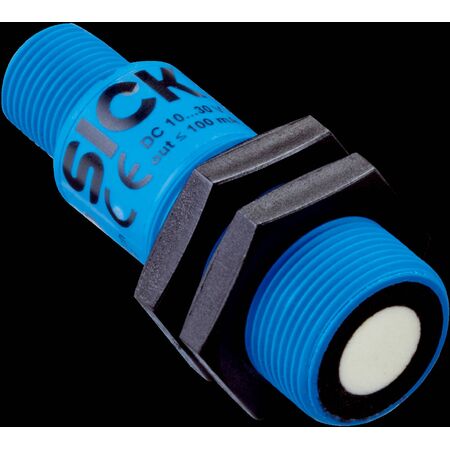

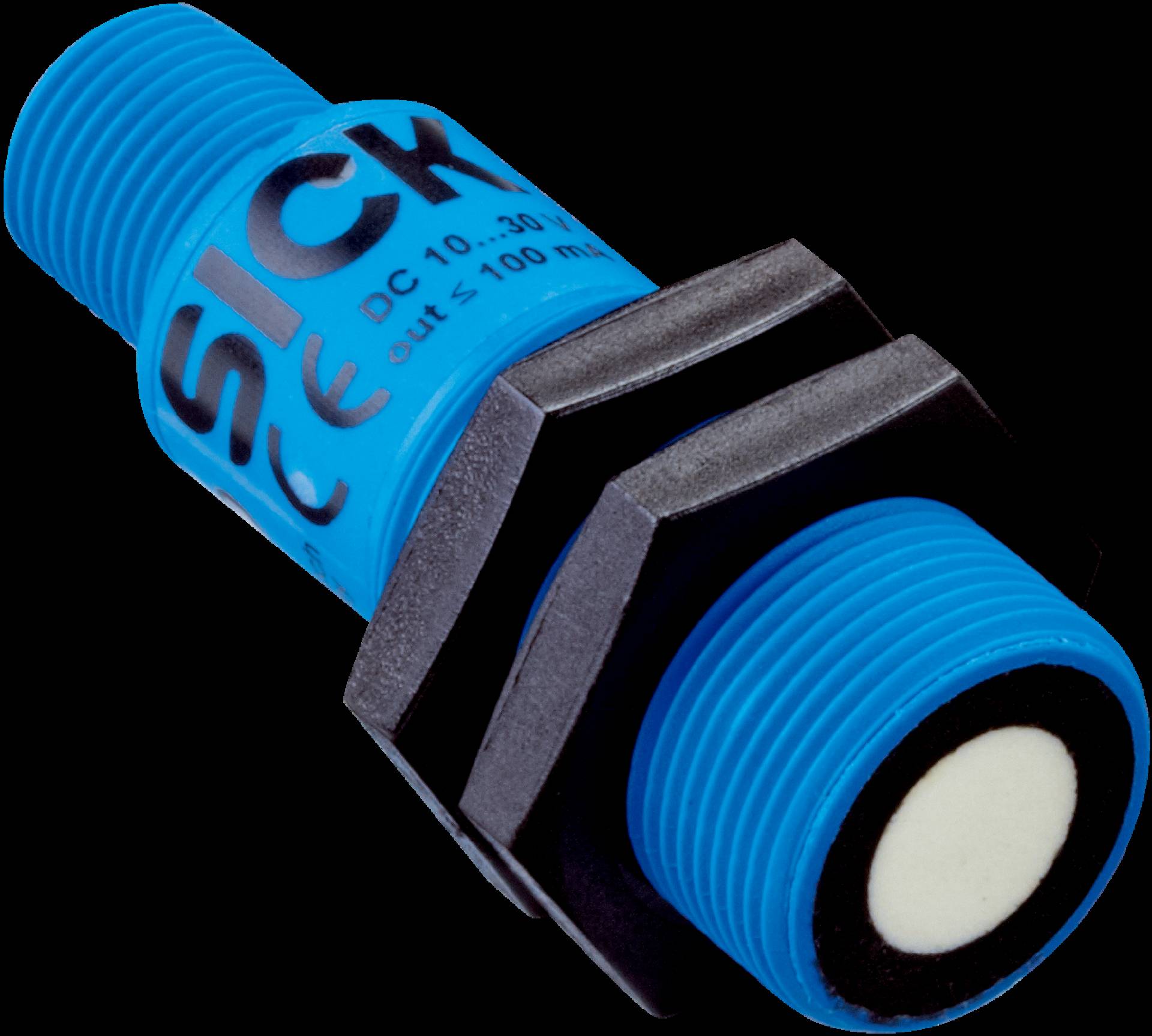

Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | NPN Output | Metal or Plastic Housing | by SICK
The Ultrasonic Distance Sensor UM18 offers reliable measurement from 20mm to 150mm, making it ideal for industrial automation and machine integration. With a sensing frequency of 380 kHz and an NPN digital output, this sensor performs well in harsh environments, unaffected by material color or ambient light. Its durable design ensures longevity, while versatile interfaces like IO-Link enhance its functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | NPN Output | Metal or Plastic Housing | by SICK
Brand: SICK
SKU: 6048410
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, SICK ultrasonic sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 20 mm
- Maximum measuring range: 150 mm
- Measuring frequency: 380 kHz
- Switching frequency: 25 Hz
- Response time: 32 ms
- Type of digital output: NPN
- Screwed joint: M12, 4-pin
- Housing: Metal or plastic M18
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Applications needing measurement regardless of material color, transparency, or gloss
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
