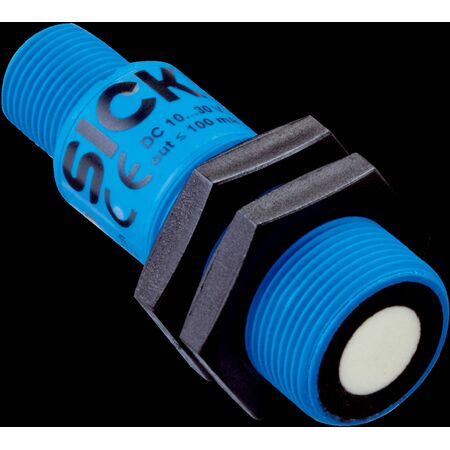

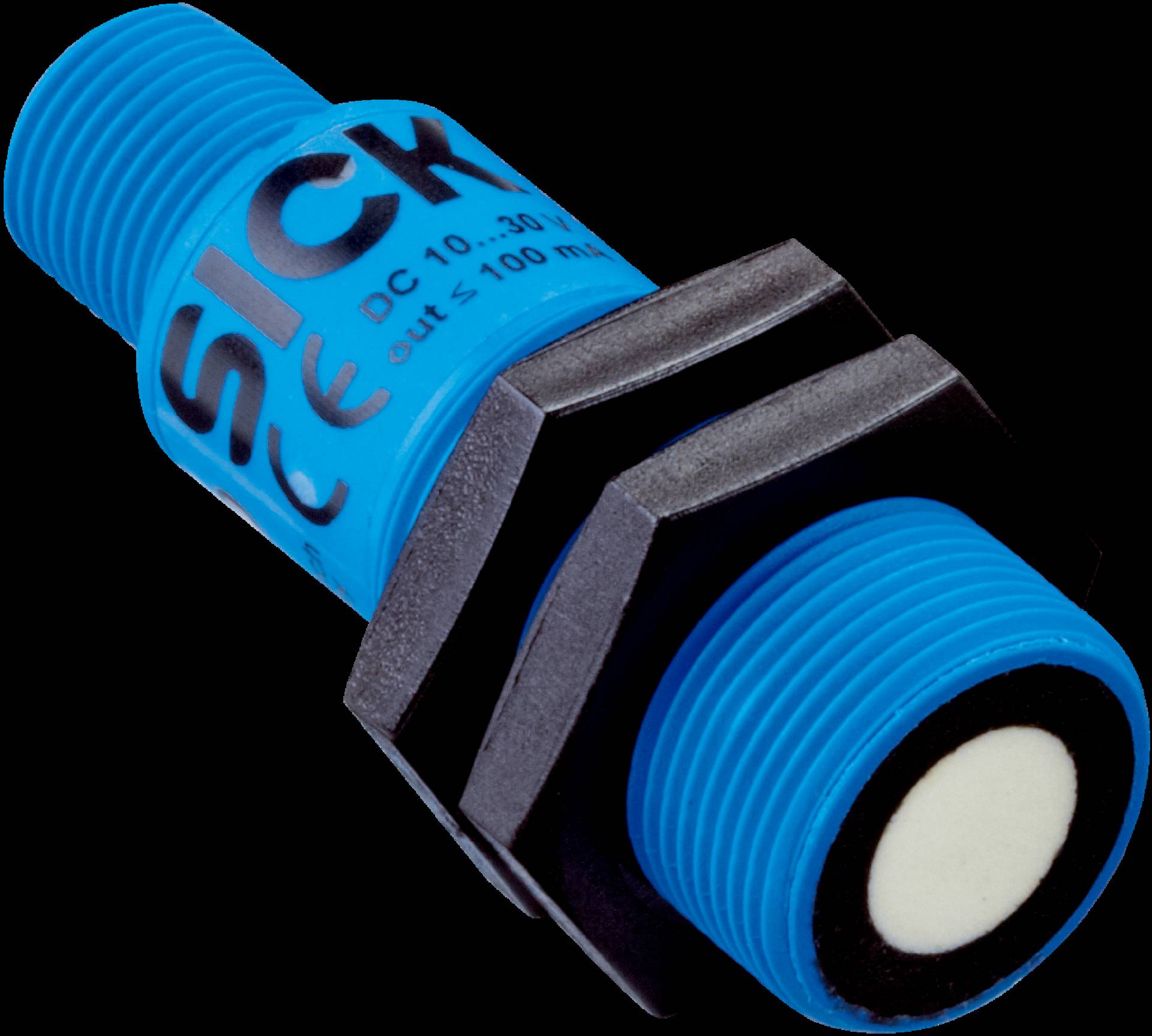

Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | PNP Output | by SICK
The Ultrasonic Distance Sensor UM18 offers reliable measurement from 20mm to 150mm, making it ideal for industrial automation and machine integration. With a sensing frequency of 380 kHz and immune to environmental factors like dust and humidity, this sensor ensures accurate distance measurement regardless of material properties. Perfect for applications requiring dependable performance in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 20mm to 150mm Range | PNP Output | by SICK
Brand: SICK
SKU: 6048408
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, SICK ultrasonic sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 20 mm
- Maximum measuring range: 150 mm
- Measuring frequency: 380 kHz
- Switching frequency: 25 Hz
- Response time: 32 ms
- Type of digital output: PNP
- Screwed joint: M12, 4-pin
- Dimensions (H x L x W): 18mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Applications needing measurement regardless of material color, transparency, or gloss
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
