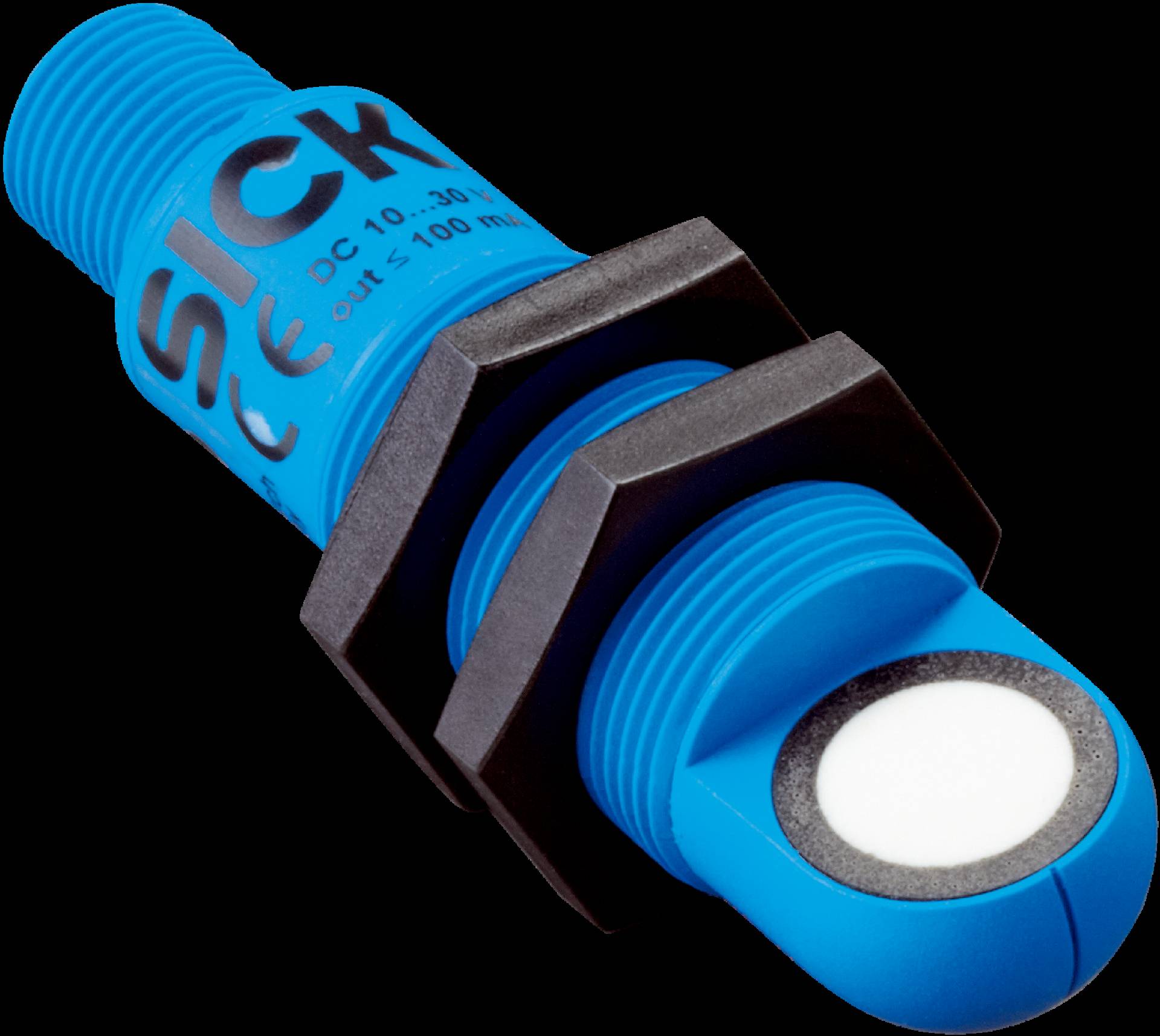

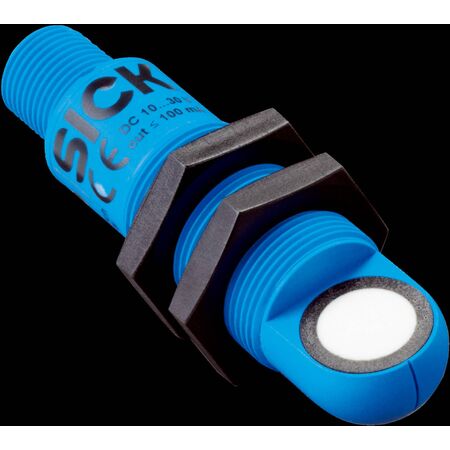

Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | 320kHz Frequency | IP67 Rated | by SICK
The UM18 Ultrasonic Distance Sensor is designed for precise distance measurement in industrial automation, featuring a measuring range from 30mm to 250mm and a frequency of 320kHz. Its robust design ensures reliable performance in harsh environments, immune to dirt, dust, and humidity, making it ideal for machine integration and object detection tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | 320kHz Frequency | IP67 Rated | by SICK
Brand: SICK
SKU: 6072878
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, SICK ultrasonic sensor, industrial distance sensor
Technical Specifications
- Minimum measuring range: 30 mm
- Maximum measuring range: 250 mm
- Measuring frequency: 320 kHz
- Response time: 32 ms
- Screwed joint: M12, 4-pin
- Type of analog output: voltage output
- Housing: metal or plastic M18
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Use in dusty, humid, or foggy conditions
- Measurement tasks requiring immunity to material color, transparency, and gloss
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
