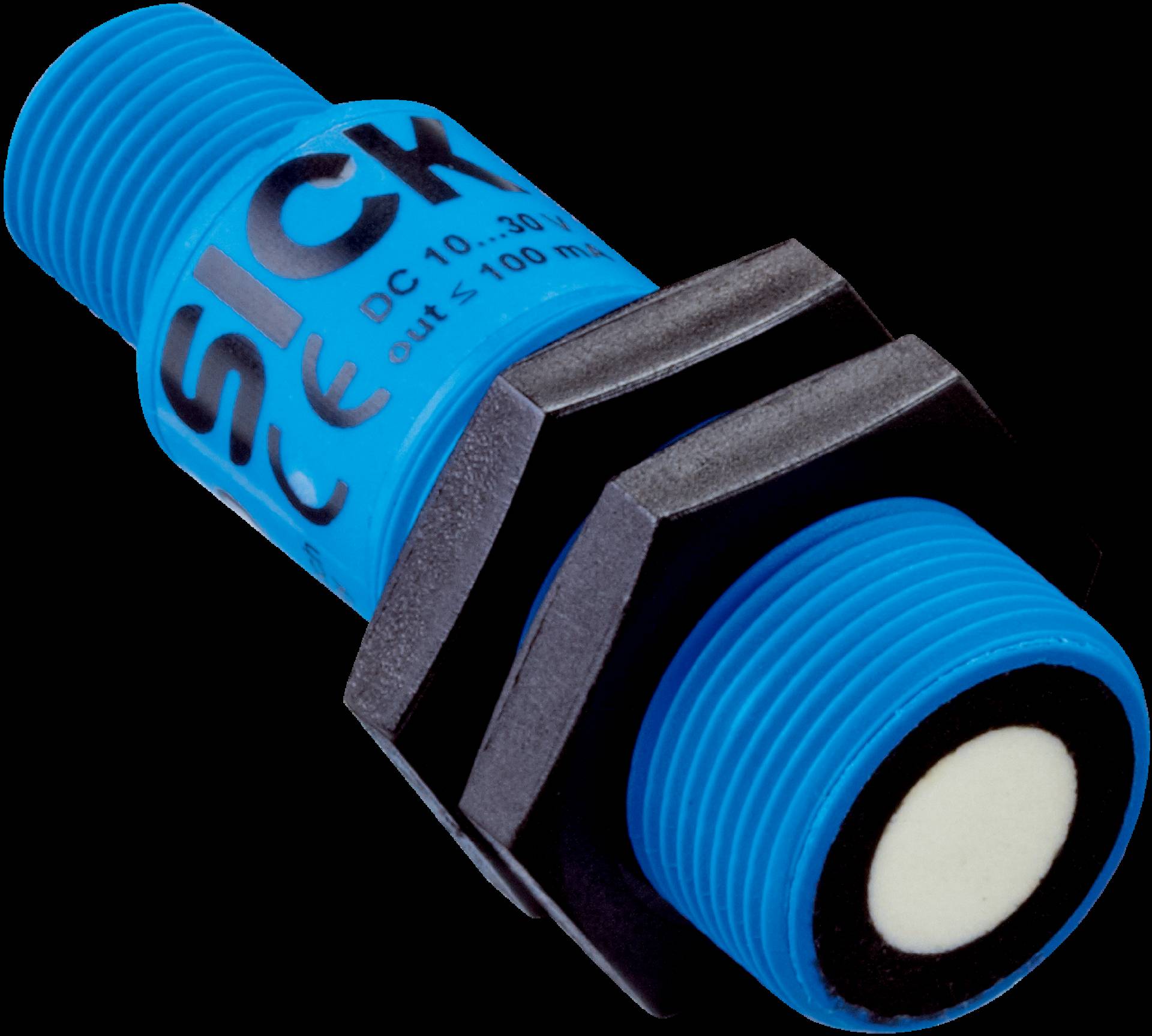

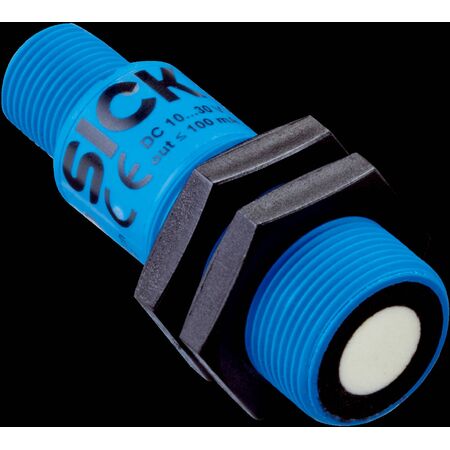

Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | 320kHz Frequency | Metal or Plastic Housing | by SICK
The Ultrasonic Distance Sensor UM18 offers reliable measurement from 30mm to 250mm, making it ideal for industrial automation and machine integration. With a 320kHz measuring frequency and a robust design that withstands dirt, dust, and humidity, this sensor ensures accurate distance measurement regardless of material color or transparency. Perfect for harsh environments, it features versatile interfaces including IO-Link for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | 320kHz Frequency | Metal or Plastic Housing | by SICK
Brand: SICK
SKU: 6072875
Alternatively Known As: Ultrasonic distance sensor UM18, SICK UM18 sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 30 mm
- Maximum measuring range: 250 mm
- Measuring frequency: 320 kHz
- Response time: 32 ms
- Screwed joint: M12, 4-pin
- Type of analog output: Current output
- Housing: Metal or plastic M18
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Applications needing measurement regardless of material color or transparency
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
