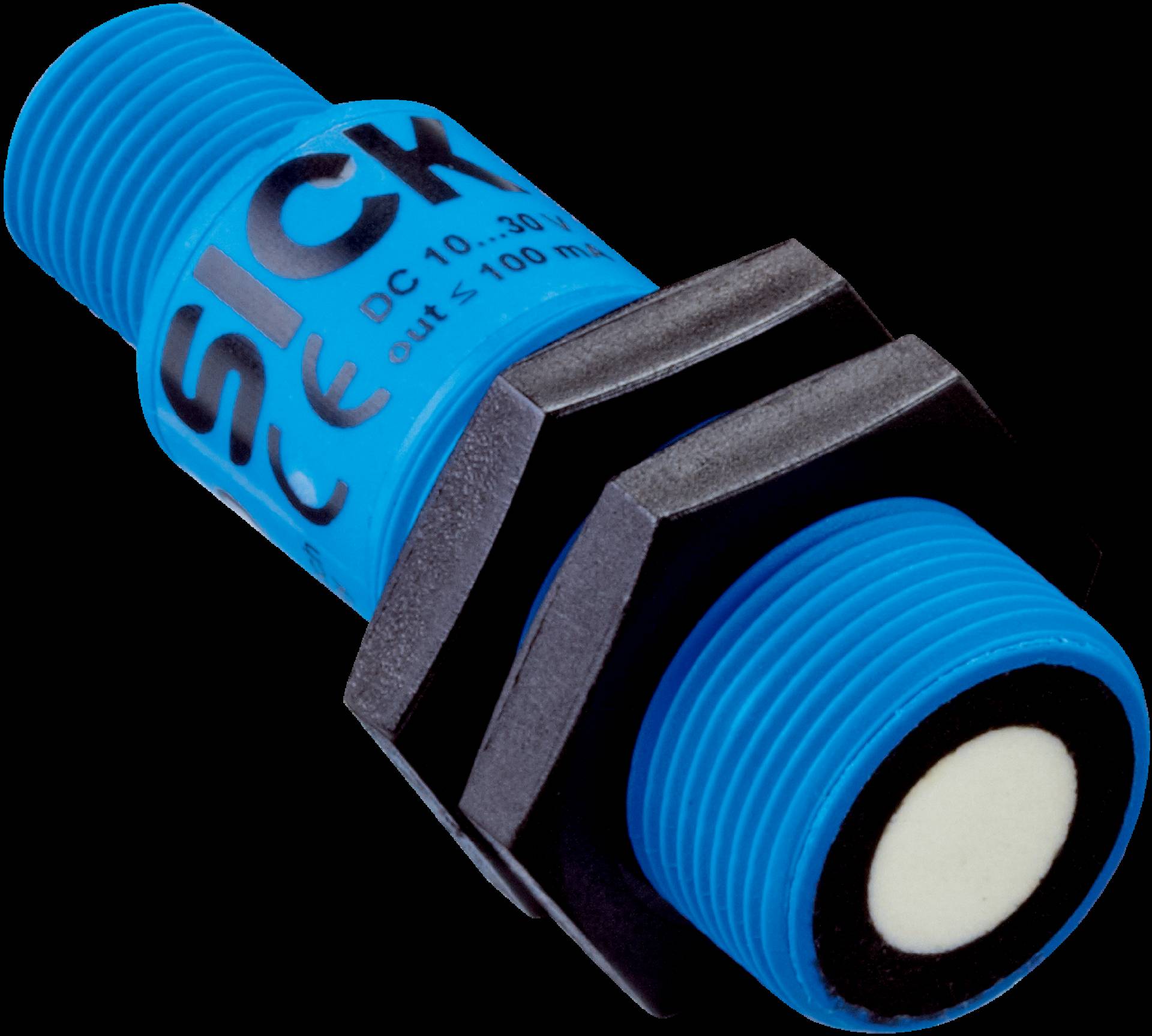

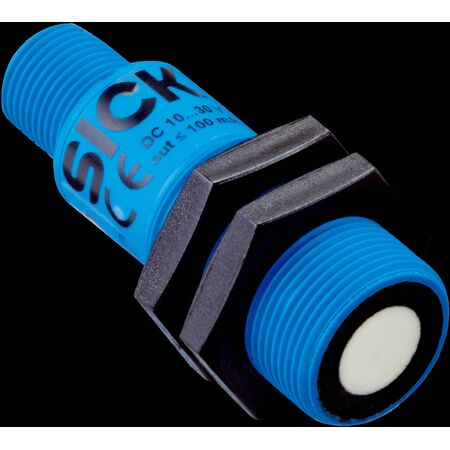

Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | 320kHz Frequency | PNP Output | by SICK
The UM18 Ultrasonic Distance Sensor is designed for reliable measurement in industrial automation, offering a sensing range from 30mm to 250mm and a frequency of 320kHz. Ideal for harsh environments, it ensures accurate detection regardless of material color or ambient light, making it perfect for machine integration and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | 320kHz Frequency | PNP Output | by SICK
Brand: SICK
SKU: 6048412
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, SICK ultrasonic sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 30 mm
- Maximum measuring range: 250 mm
- Measuring frequency: 320 kHz
- Switching frequency: 25 Hz
- Response time: 32 ms
- Screwed joint: M12, 4-pin
- Type of digital output: PNP
- Type of analog output: N/A
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration in manufacturing environments
- Harsh ambient conditions including dust, humidity, and fog
- Use in systems requiring reliable measurement regardless of material color or transparency
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration in harsh environments.
