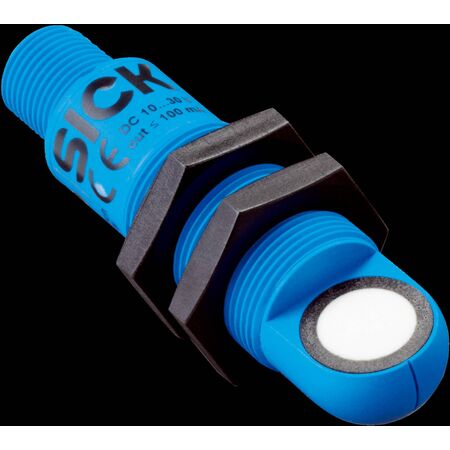

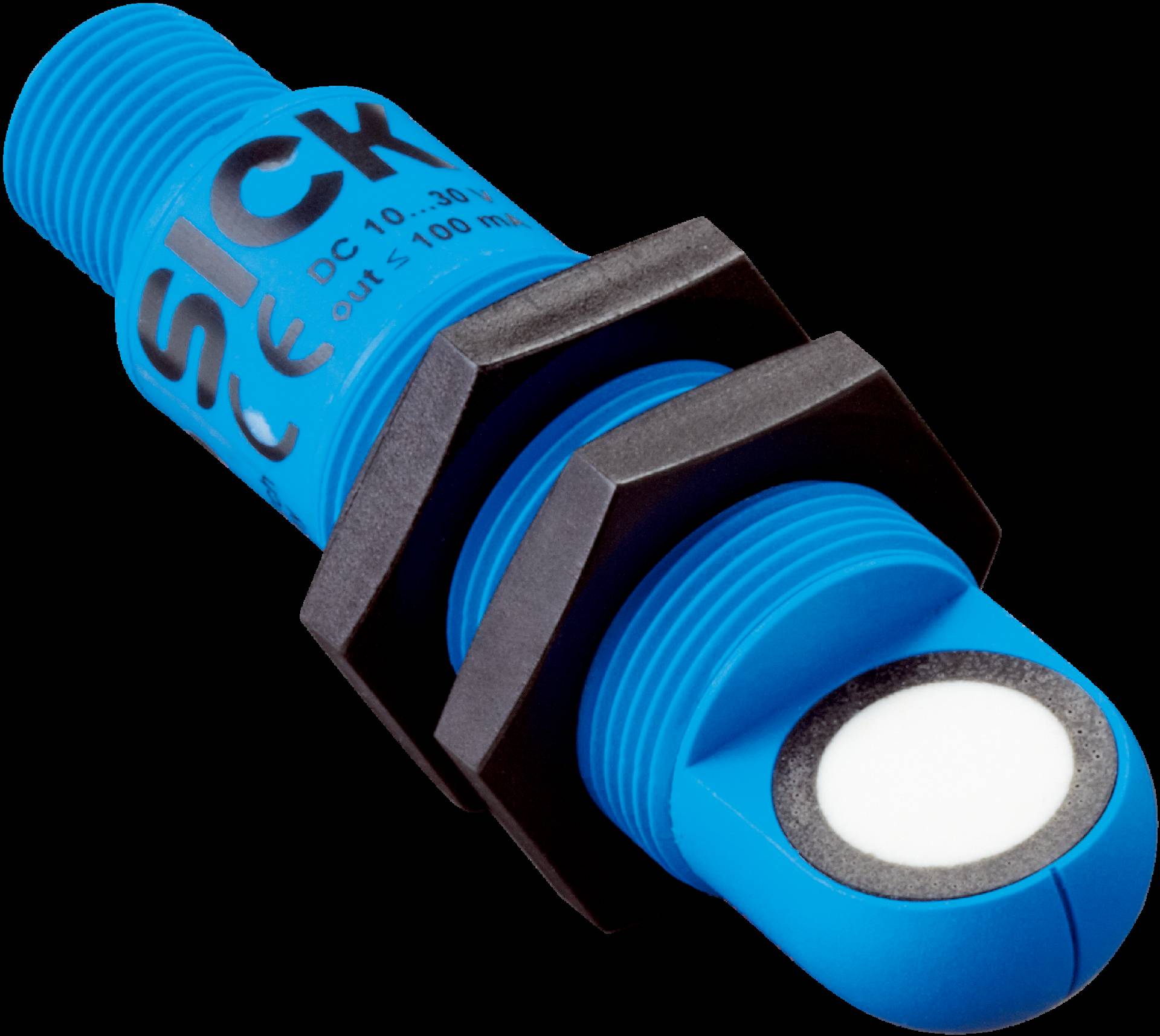

Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | IO-Link Interface | by SICK
The Ultrasonic Distance Sensor UM18 is designed for precise distance measurement in industrial automation, featuring a measuring range from 30mm to 250mm and an IO-Link interface for versatile connectivity. With reliable performance in harsh environments, it excels in applications requiring immunity to material color and ambient conditions, making it ideal for machine integration and object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | IO-Link Interface | by SICK
Brand: SICK
SKU: 6072876
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, IO-Link ultrasonic sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 30 mm
- Maximum measuring range: 250 mm
- Measuring frequency: 320 kHz
- Response time: 32 ms
- Screwed joint: M12, 4-pin
- Type of analog output: Current output
- Available with analog or PNP/NPN switching outputs, IO-Link interface
- Dimensions (H x L x W): 18mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Use in dusty, humid, or foggy conditions
- Measurement tasks requiring immunity to material color, transparency, or gloss
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
