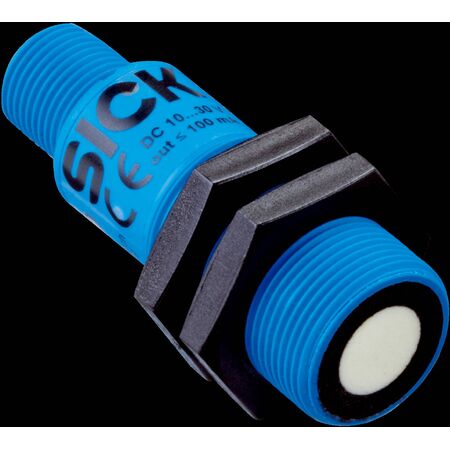

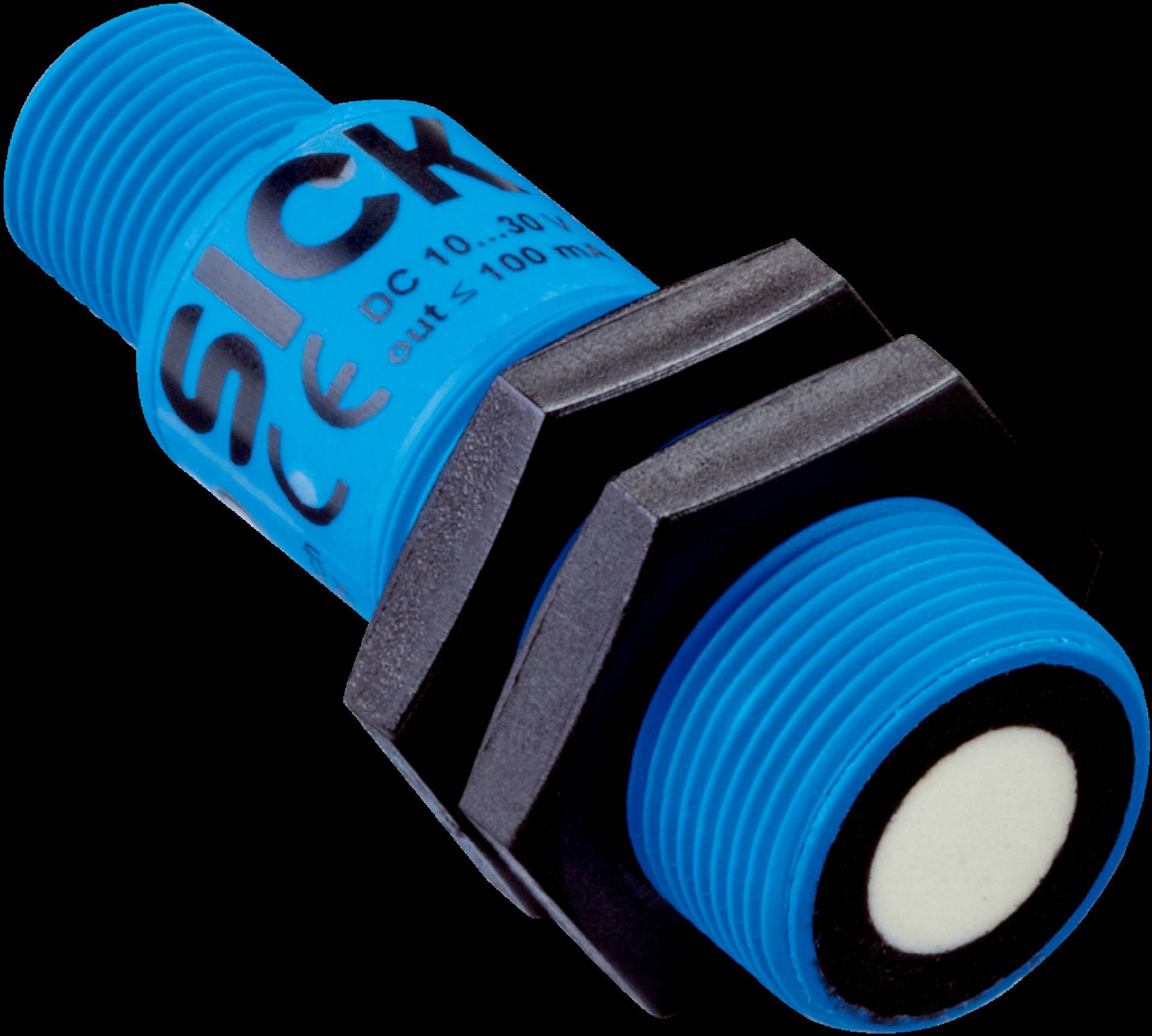

Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | NPN Output | Metal or Plastic Housing | by SICK
The UM18 Ultrasonic Distance Sensor is designed for precise distance measurement in industrial automation, featuring a measuring range from 30mm to 250mm and a reliable NPN output. With its robust metal or plastic housing, this sensor is immune to dirt, dust, and humidity, making it perfect for harsh environments. Ideal for machine integration and material handling applications, it ensures accurate sensing regardless of material color or ambient light.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | NPN Output | Metal or Plastic Housing | by SICK
Brand: SICK
SKU: 6048414
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, M18 ultrasonic sensor, Industrial ultrasonic sensor
Technical Specifications
- Minimum measuring range: 30 mm
- Maximum measuring range: 250 mm
- Measuring frequency: 320 kHz
- Switching frequency: 25 Hz
- Response time: 32 ms
- Screwed joint: M12, 4-pin
- Type of digital output: NPN
- Housing: Metal or plastic M18
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Material handling and packaging systems
- Robotics and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
