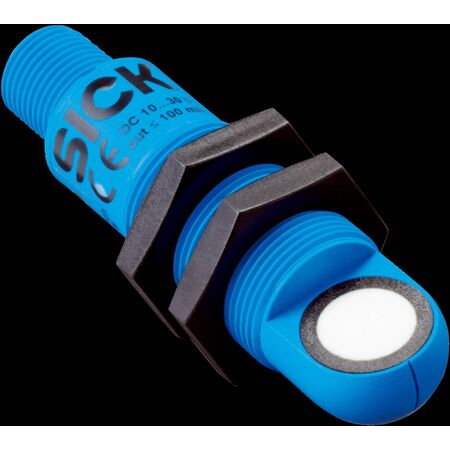

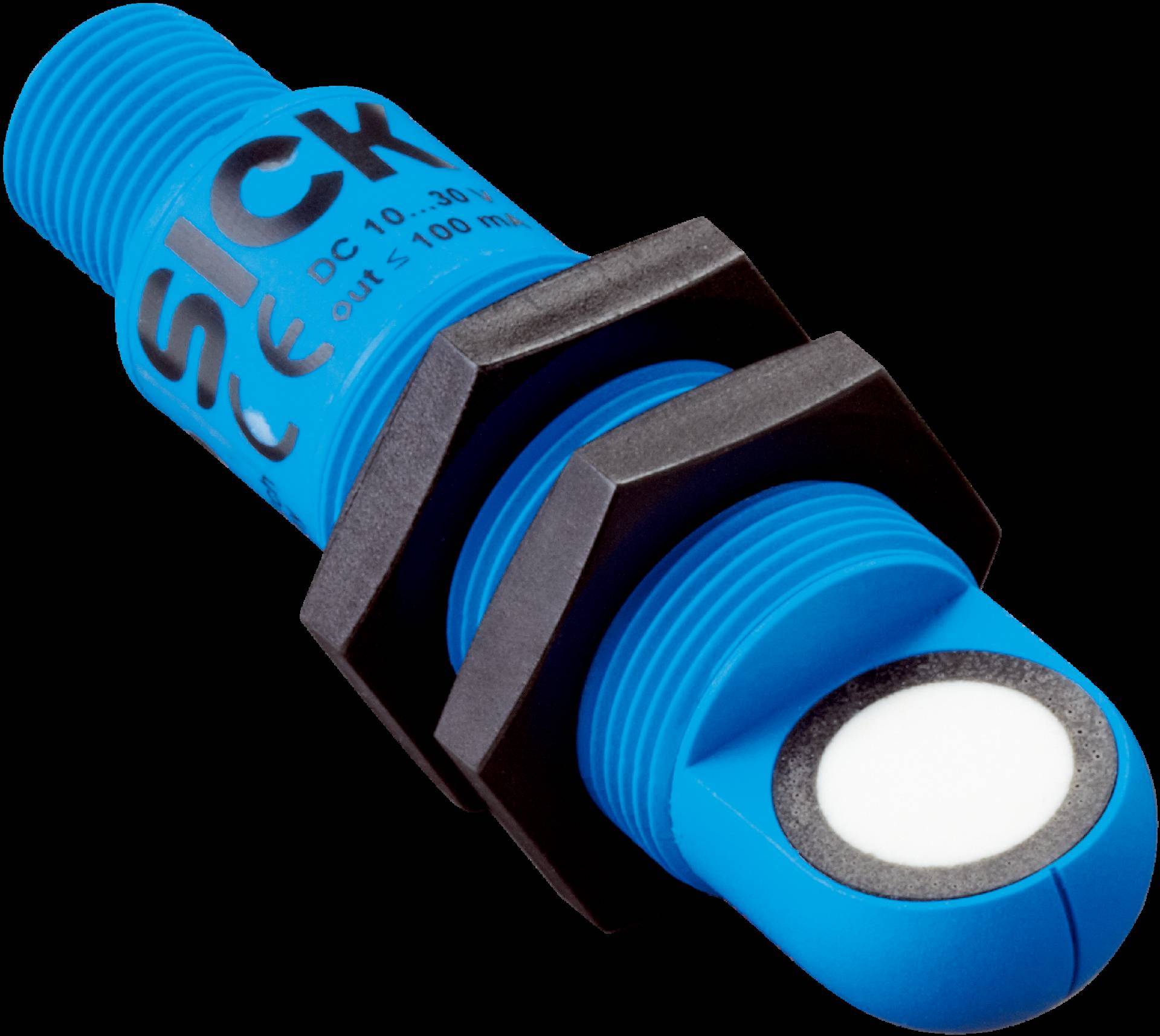

Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | NPN Output | Metal or Plastic Housing | by SICK
The Ultrasonic Distance Sensor UM18 offers reliable measurement from 30mm to 250mm, making it ideal for industrial automation and machine integration. With a sensing frequency of 320 kHz and an NPN digital output, this sensor performs well in harsh environments, unaffected by material color or ambient light. Its durable design ensures longevity, while versatile interfaces like IO-Link enhance its functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | NPN Output | Metal or Plastic Housing | by SICK
Brand: SICK
SKU: 6048415
Alternatively Known As: Ultrasonic distance sensor UM18, SICK UM18 sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 30 mm
- Maximum measuring range: 250 mm
- Measuring frequency: 320 kHz
- Switching frequency: 25 Hz
- Response time: 32 ms
- Type of digital output: NPN
- Screwed joint: M12, 4-pin
- Housing: Metal or plastic M18
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Applications needing measurement regardless of material color or transparency
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available for immediate purchase, ideal for industrial automation and machine integration applications.
