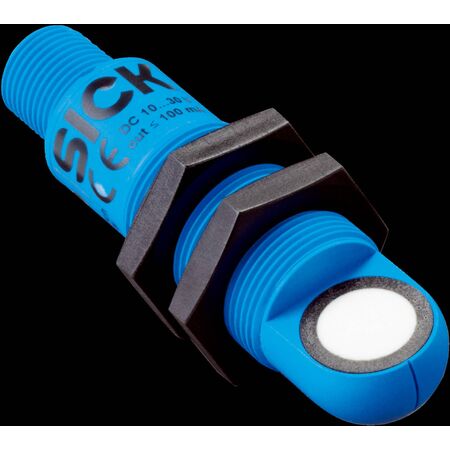

Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | PNP Output | by SICK
The UM18 Ultrasonic Distance Sensor is designed for precise distance measurement in industrial automation, featuring a measuring range from 30mm to 250mm and a reliable PNP digital output. Ideal for harsh environments, this sensor is immune to dirt, dust, and humidity, making it perfect for machine integration and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 30mm to 250mm Range | PNP Output | by SICK
Brand: SICK
SKU: 6048413
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, SICK ultrasonic sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 30 mm
- Maximum measuring range: 250 mm
- Measuring frequency: 320 kHz
- Switching frequency: 25 Hz
- Response time: 32 ms
- Type of digital output: PNP
- Type of analog output: N/A
- Screwed joint: M12, 4-pin
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Material handling and packaging systems
- Level detection in tanks and silos
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available for immediate purchase, ideal for industrial automation and machine integration applications.
