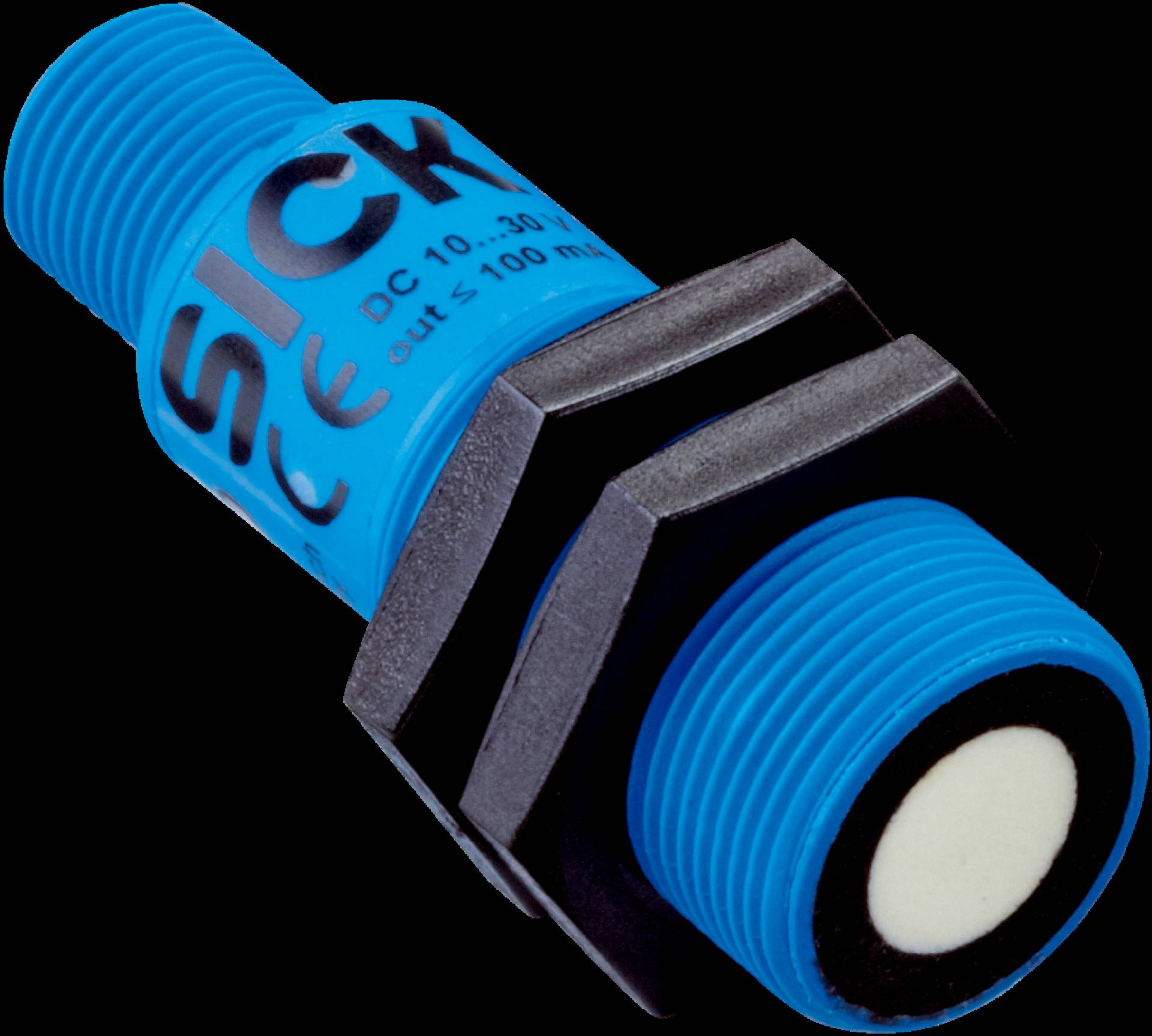

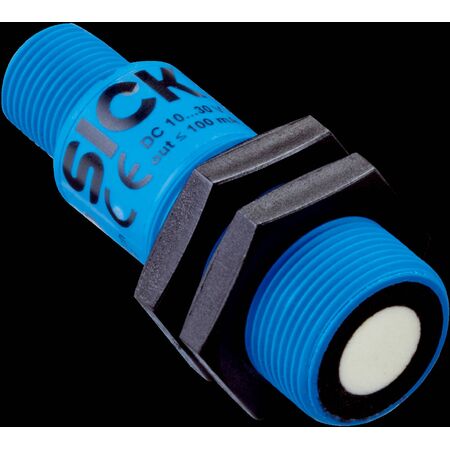

Ultrasonic Distance Sensor UM18 | 65mm to 350mm Range | 400kHz Frequency | IO-Link Interface | by SICK
The Ultrasonic Distance Sensor UM18 offers reliable measurement from 65mm to 350mm, making it ideal for industrial automation and machine integration. With a 400kHz measuring frequency and versatile IO-Link interface, this sensor excels in harsh environments, ensuring accurate object detection and distance measurement regardless of material color or ambient light.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 65mm to 350mm Range | 400kHz Frequency | IO-Link Interface | by SICK
Brand: SICK
SKU: 6072881
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, SICK ultrasonic sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 65 mm
- Maximum measuring range: 350 mm
- Measuring frequency: 400 kHz
- Response time: 64 ms
- Screwed joint: M12, 4-pin
- Type of analog output: voltage output
- Available with IO-Link interface
- Housing: metal or plastic, M18 size
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Material handling and packaging systems
- Level measurement and presence detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
