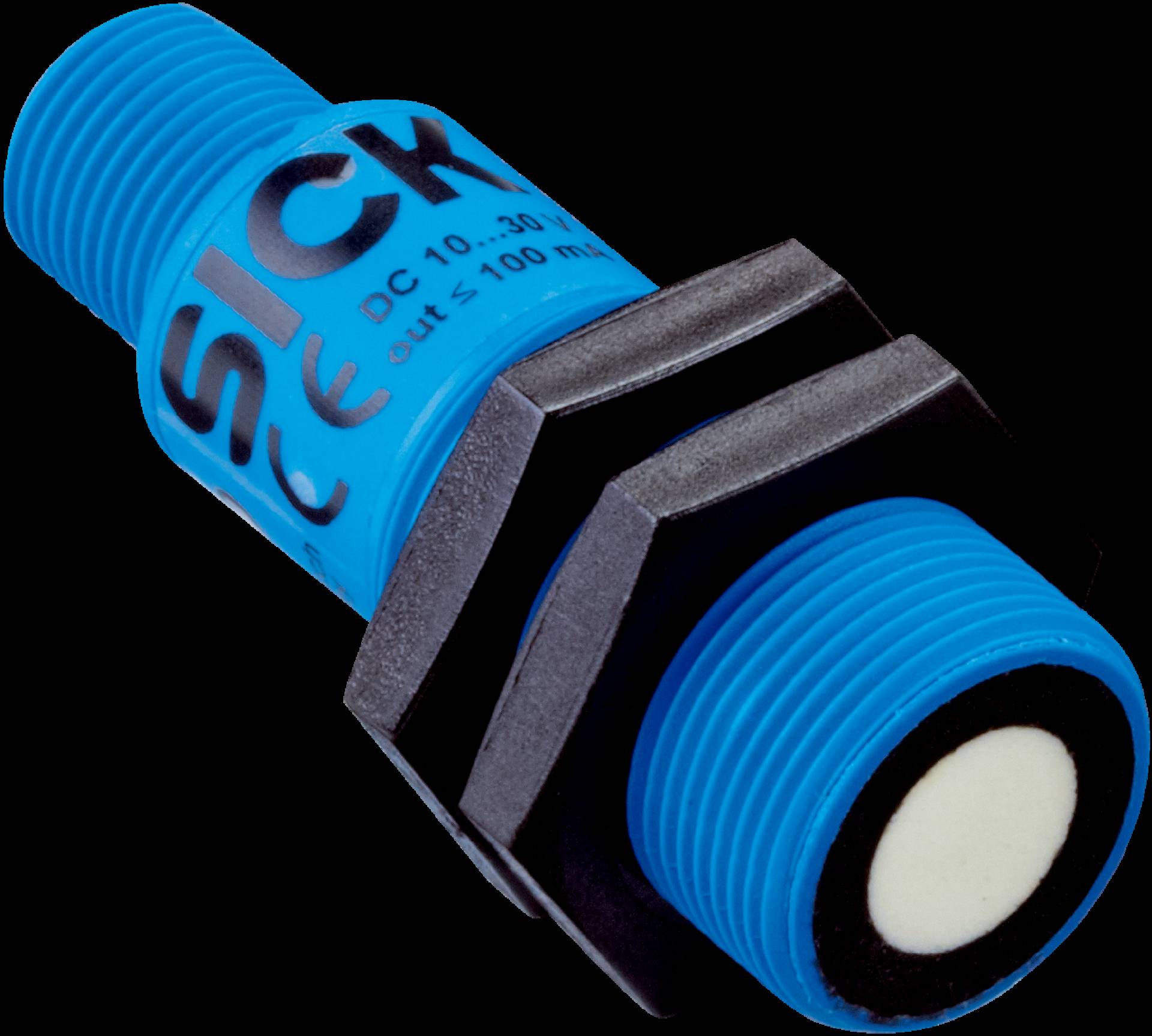

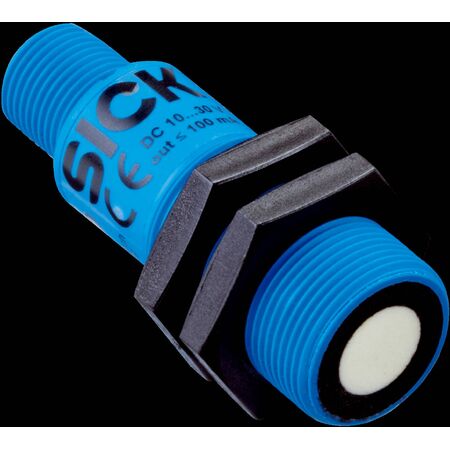

Ultrasonic Distance Sensor UM18 | 65mm to 350mm Range | 400kHz Frequency | PNP Output | by SICK
The Ultrasonic Distance Sensor UM18 is designed for precise distance measurement in industrial automation, featuring a measuring range from 65mm to 350mm and a 400kHz frequency. Its reliable performance is unaffected by material color or ambient light, making it ideal for harsh environments. Perfect for machine integration and material handling applications, this sensor ensures accurate detection and presence measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 65mm to 350mm Range | 400kHz Frequency | PNP Output | by SICK
Brand: SICK
SKU: 6048416
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, SICK ultrasonic sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 65 mm
- Maximum measuring range: 350 mm
- Measuring frequency: 400 kHz
- Switching frequency: 12 Hz
- Response time: 64 ms
- Screwed joint: M12, 4-pin
- Type of digital output: PNP
- Type of analog output: N/A
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Material handling and packaging systems
- Level measurement and presence detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
