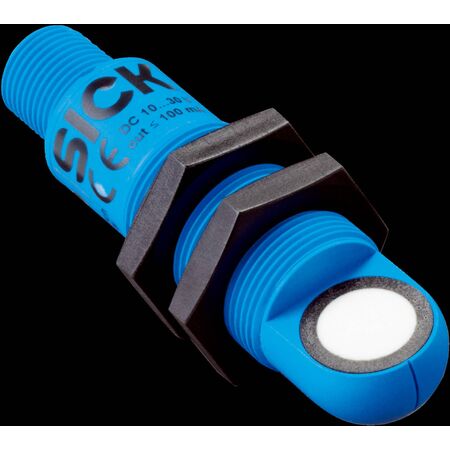

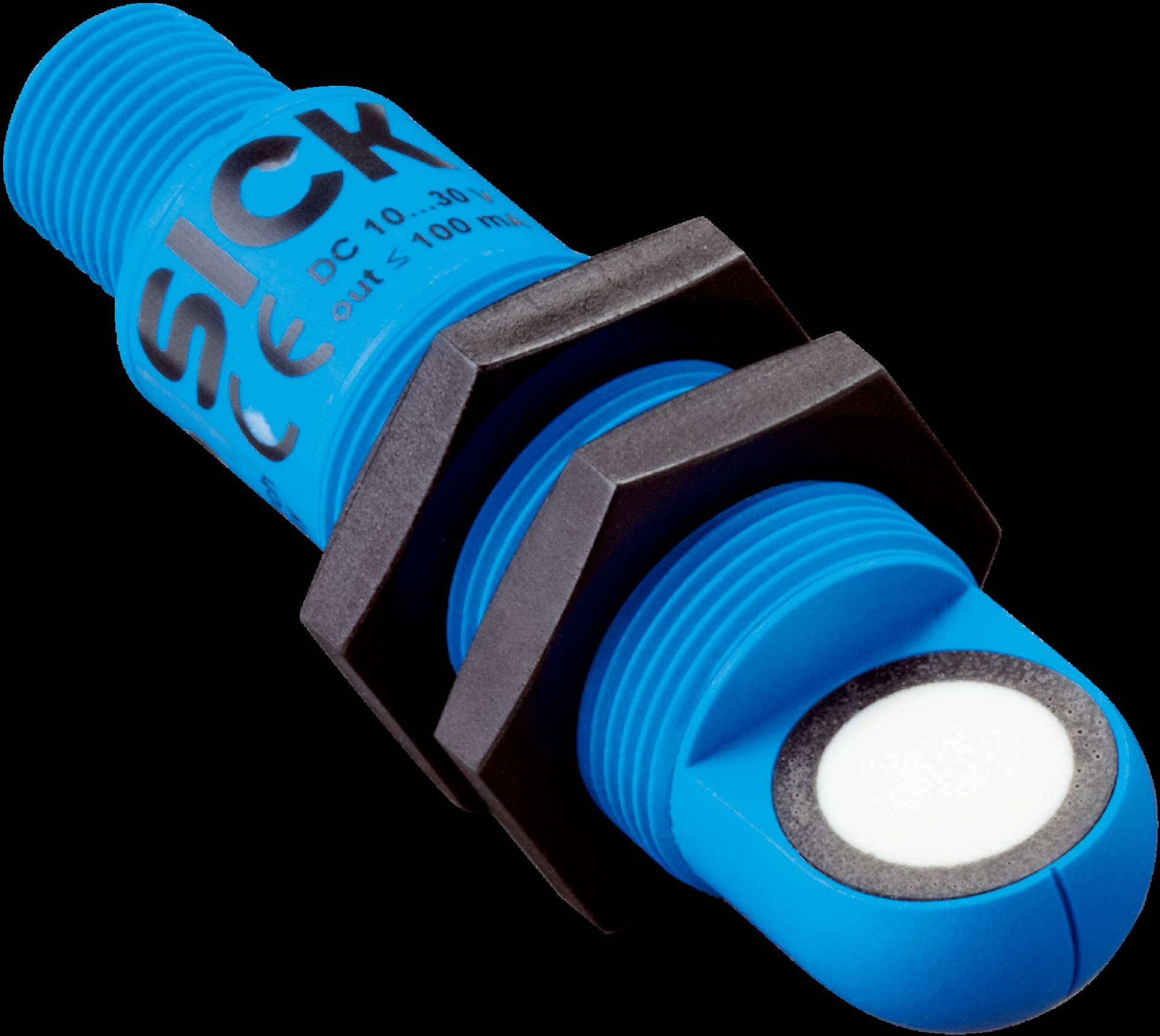

Ultrasonic Distance Sensor UM18 | 65mm to 350mm Range | 400kHz Frequency | by SICK
The UM18 Ultrasonic Distance Sensor is designed for precise distance measurement in industrial automation, featuring a measuring range from 65mm to 350mm and a 400kHz frequency. Its robust design ensures reliable performance in harsh environments, making it ideal for machine integration, robotics, and material handling applications. With immunity to dirt, dust, and humidity, this sensor is perfect for demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 65mm to 350mm Range | 400kHz Frequency | by SICK
Brand: SICK
SKU: 6072880
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, SICK ultrasonic sensor, M18 ultrasonic sensor
Technical Specifications
- Minimum measuring range: 65 mm
- Maximum measuring range: 350 mm
- Measuring frequency: 400 kHz
- Response time: 64 ms
- Screwed joint: M12, 4-pin
- Type of analog output: Current output
- Housing: Metal or plastic M18
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Material handling and packaging systems
- Robotics and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available for immediate purchase, ideal for industrial automation and machine integration applications.
