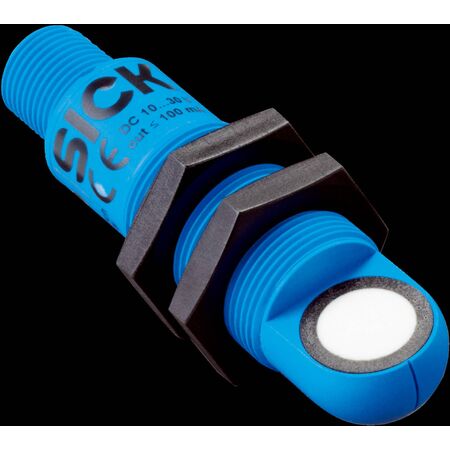

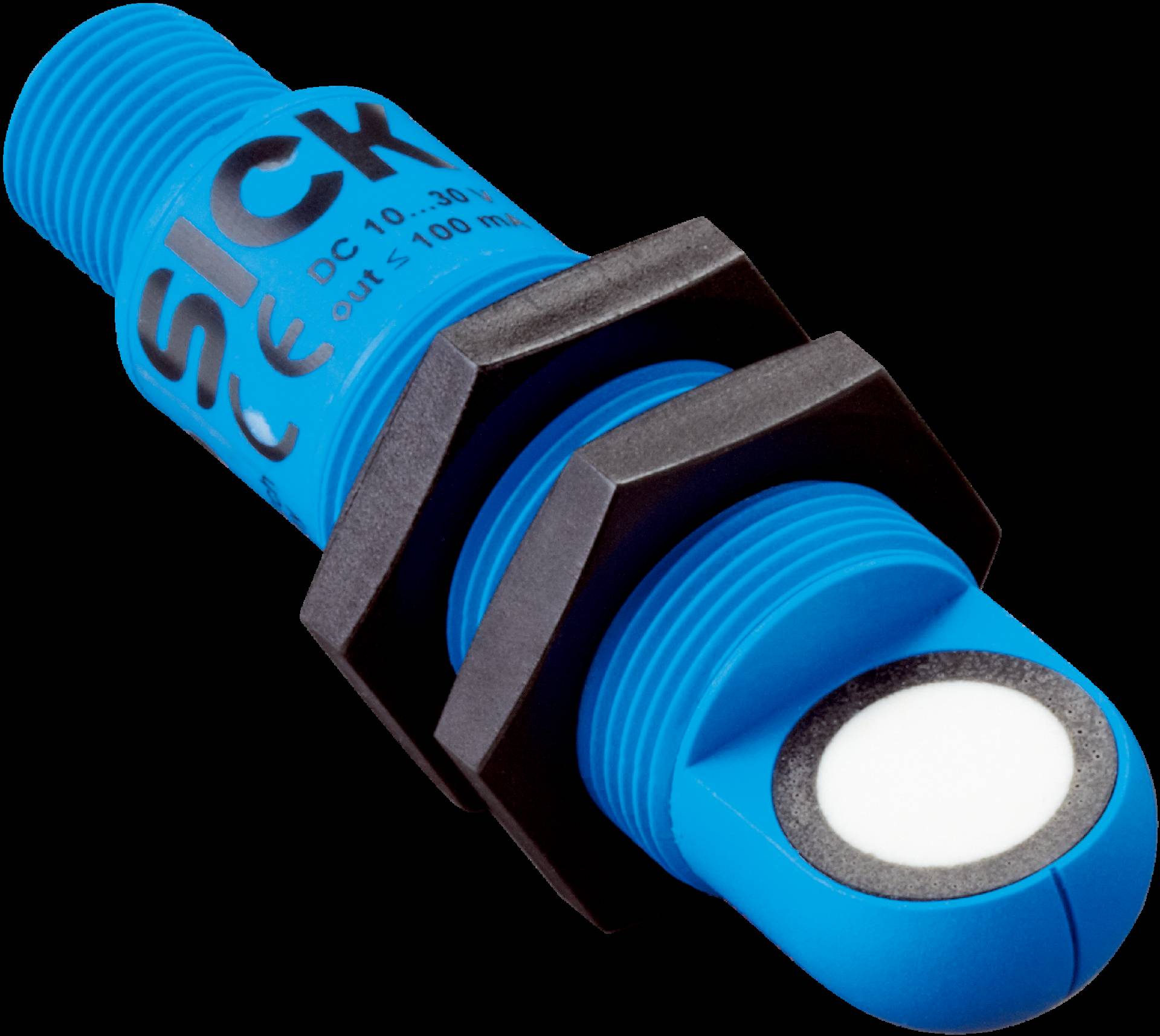

Ultrasonic Distance Sensor UM18 | 65mm to 350mm Range | NPN Output | by SICK
The UM18 Ultrasonic Distance Sensor is designed for reliable distance measurement in industrial automation, featuring a measuring range from 65mm to 350mm and a sensing frequency of 400 kHz. Ideal for harsh environments, this sensor is immune to dirt, dust, and humidity, making it perfect for machine integration and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | 65mm to 350mm Range | NPN Output | by SICK
Brand: SICK
SKU: 6048419
Alternatively Known As: Ultrasonic distance sensor, UM18 sensor, M18 ultrasonic sensor, SICK distance sensor
Technical Specifications
- Minimum measuring range: 65 mm
- Maximum measuring range: 350 mm
- Measuring frequency: 400 kHz
- Switching frequency: 12 Hz
- Response time: 64 ms
- Type of digital output: NPN
- Screwed joint: M12, 4-pin
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Material handling and packaging systems
- Level measurement and presence detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available for immediate purchase, ideal for industrial automation and machine integration applications.
