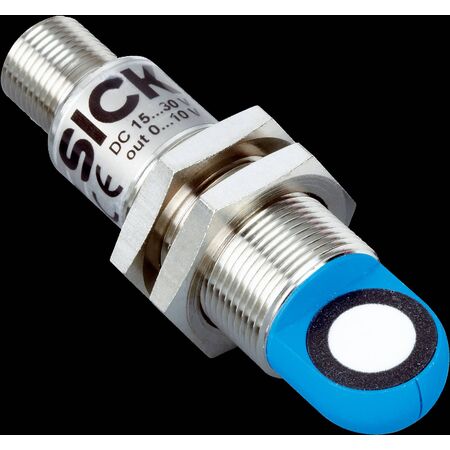

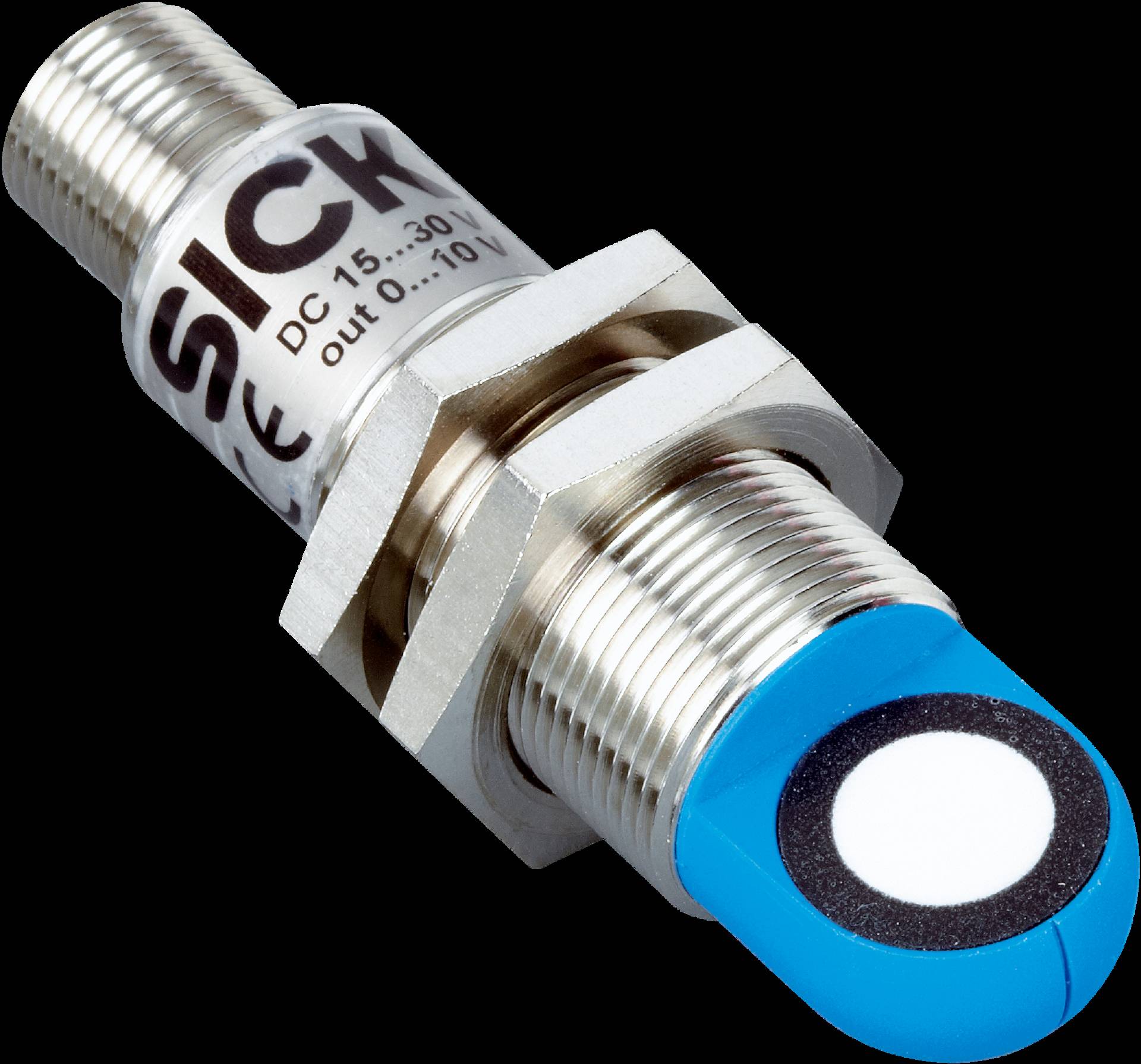

Ultrasonic Distance Sensor UM18 | IO-Link Interface | 120mm to 1000mm Range | Reliable Measurement | by SICK
The Ultrasonic Distance Sensor UM18 is designed for precise distance measurement in industrial automation, featuring a measuring range from 120mm to 1000mm and an IO-Link communication interface. Ideal for harsh environments, this sensor ensures reliable performance regardless of material color or ambient light, making it perfect for machine integration and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Distance Sensor UM18 | IO-Link Interface | 120mm to 1000mm Range | Reliable Measurement | by SICK
Brand: SICK
SKU: 6066185
Alternatively Known As: Ultrasonic distance sensor UM18, SICK UM18 sensor, M18 ultrasonic sensor, IO-Link ultrasonic sensor
Technical Specifications
- Minimum measuring range: 120 mm
- Maximum measuring range: 1000 mm
- Communication interface: IO-Link
- Type of digital output: push-pull PNP/NPN
- Type of analog output: voltage output
- Measuring frequency: 200 kHz
- Switching frequency: 10 Hz
- Response time: 80 ms
- Screwed joint: M12, 5-pin
- Dimensions (H x L x W): 18mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration in manufacturing environments
- Harsh ambient conditions requiring reliable sensing
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available for immediate purchase, ideal for industrial automation and machine integration applications.
