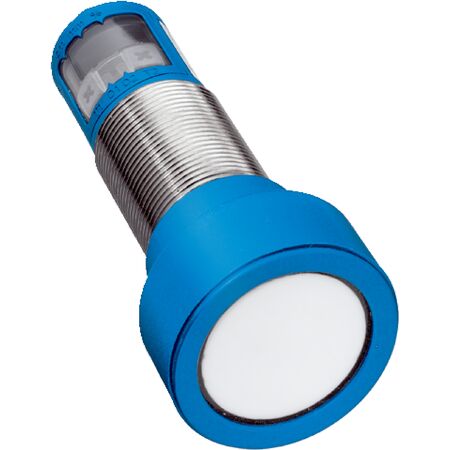

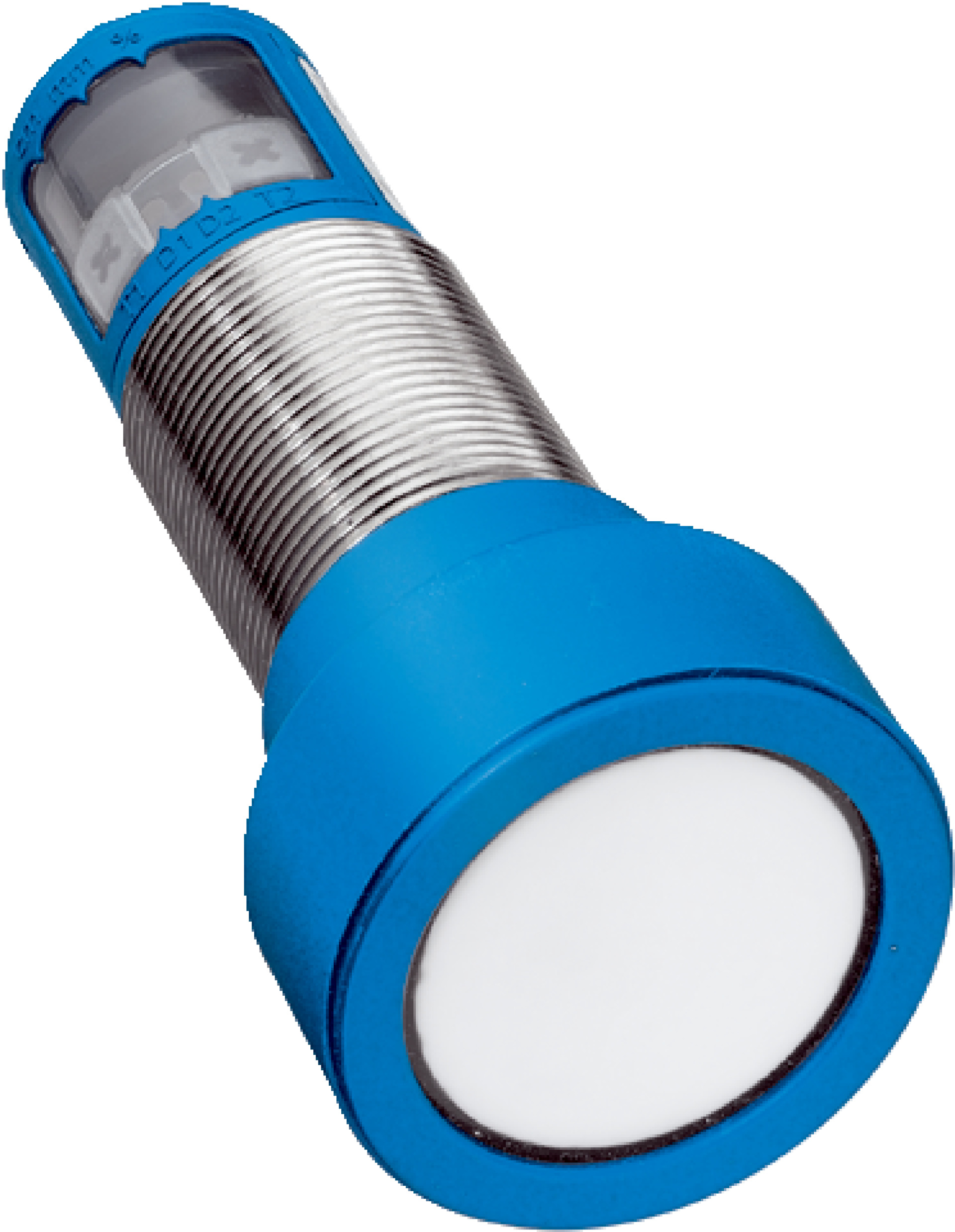

Ultrasonic Distance Sensor UM30-214113 | 350 mm to 5,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Distance Sensor UM30-214113 offers an impressive operating range from 350 mm to 5,000 mm, making it ideal for industrial automation and precise distance measurement applications. With a high resolution of ≥ 0.18 mm and an IP65/IP67 enclosure rating, this sensor is built for reliability in harsh environments, ensuring accurate object detection and positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation: Yes
- Response time: 180 ms
- Output time: 43 ms
- Ultrasonic frequency: 120 kHz
- Analog output: 4 mA to 20 mA (≤ 500 Ω) or 0 V to 10 V (≥ 100,000 Ω), 12-bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male connector, M12, 5-pin
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Thread size: M30 x 1.5
- Dimensions (H x L x W): 47.5mm x 102mm x 47.5mm
- Weight: 0.21 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 0.18 mm
- Repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation included
- Response time of 180 ms and output time of 43 ms
- Ultrasonic frequency of 120 kHz
- Automatic selection of analog current or voltage output
- Synchronization of up to 50 sensors without cross talk
- Adjustable measurement filters and teach-in functions
- LED display with two LEDs for indication
- Enclosure rating IP65 / IP67 for harsh environments
- Robust metal housing with nickel-plated brass and polyurethane foam
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring, calibration, and compliance with safety standards.
Applications
- Industrial automation for distance measurement
- Object detection and positioning
- Level measurement in tanks and silos
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UM30-214113 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
