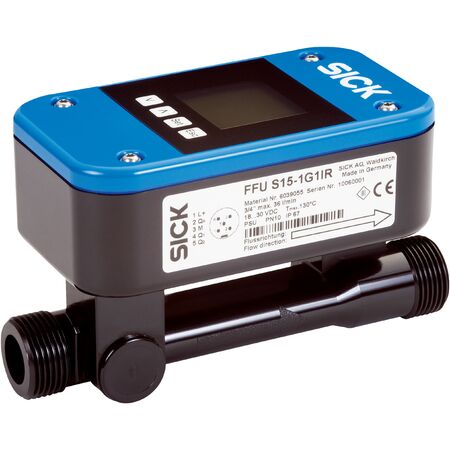

Ultrasonic Flow Sensor DN15 | Accurate Flow Detection | IP67 Rated | by SICK
The Ultrasonic Flow Sensor DN15 is designed for precise fluid flow measurement in industrial applications. With an ultrasonic sensor measurement principle, it offers high accuracy of ± 2% and a process temperature range from 0 °C to +80 °C. Ideal for water treatment, chemical industries, and food production, this sensor ensures reliable performance with an IP67 rated enclosure for robust protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Flow Sensor DN15 | Accurate Flow Detection | IP67 Rated | by SICK
Brand: SICK
SKU: 6045162
Alternatively Known As: Ultrasonic Flow Meter DN15, Fluid Flow Sensor, Clamp Flow Sensor, Industrial Flow Meter
Technical Specifications
- Measurement principle: Ultrasonic sensor
- Medium: Fluids
- Nominal width measuring tube: DN 15
- Process temperature: 0 °C to +80 °C
- Process pressure: ≤ 16 bar
- Minimum flow: ≥ 0.9 l/min
- Maximum flow: ≤ 36 l/min
- Inlet zone: 30 cm
- Output zone: 5 cm
- Conductivity: No limitation
- Measurement accuracy: ± 2% of measured value + 0.15% of measuring range limit
- Repeatability: ≤ 0.5%
- Resolution: 0.006 l/min
- Response time: 100 ms to 4.2 s
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: ≤ 180 mA
- Switch-on time: ≤ 5 s
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: Analog output 4 mA to 20 mA, pulse/status output PNP/NPN transistor
- Output current: < 100 mA
- Output load: < 500 Ohm
- Enclosure rating: IP67
- Process connection: Clamp (DIN 11864-3)
- Wetted parts: PPSU EPDM
- Housing material: PPSU
- Weight: 350 g
- Dimensions (H x L x W): 100mm x 120mm x 50mm
- Weight: 0.35 kg
Key Features
- Ultrasonic sensor measurement principle for accurate flow detection
- Suitable for fluids with nominal width measuring tube DN 15
- Process temperature range from 0 °C to +80 °C
- Process pressure up to 16 bar
- High measurement accuracy of ± 2% of measured value plus 0.15% of measuring range limit
- Repeatability of ≤ 0.5%
- Fast response time options from 100 ms to 4.2 s
- Analog output signals with 4 mA to 20 mA current flow
- IP67 rated enclosure for robust protection
- Clamp process connection (DIN 11864-3) with PPSU and EPDM wetted parts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic flow sensors and electrical connections to ensure accurate measurement and safety.
Applications
- Measurement of fluid flow in industrial processes
- Monitoring flow rates in water treatment and chemical industries
- Flow monitoring in food and beverage production
- Use in pharmaceutical and biotechnology fluid systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-invasive ultrasonic measurement reduces contamination risk and fluid waste
- Durable materials and IP67 protection extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FFUS15-1C1IO Ultrasonic Flow Sensor DN 15 is available for immediate purchase, ideal for industrial fluid flow measurement applications.
