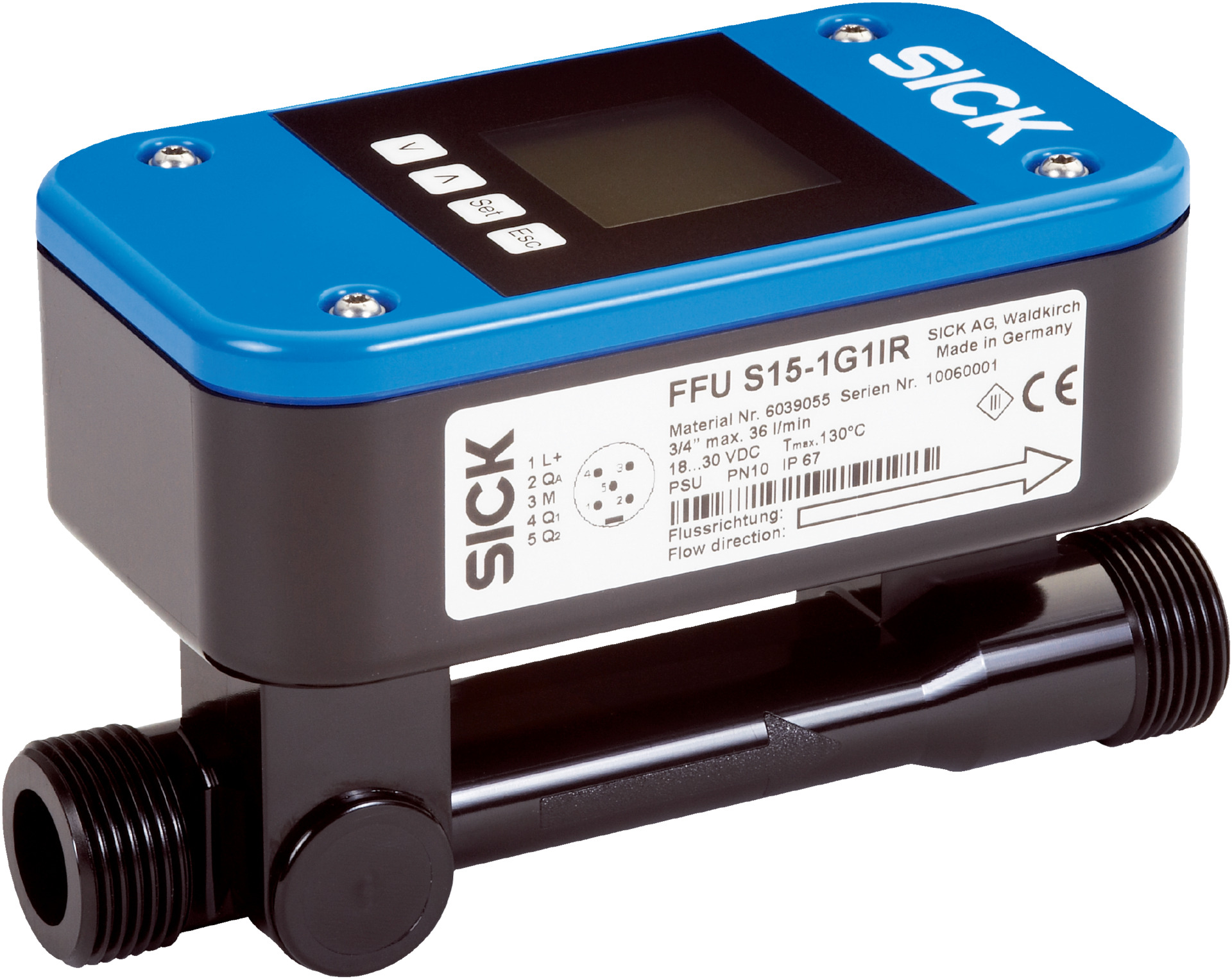

Ultrasonic Flow Sensor | DN15 | IP67 Rated | ±2% Measurement Accuracy | by SICK
The Ultrasonic Flow Sensor is designed for precise fluid flow measurement in industrial applications, featuring a nominal width of DN15 and an impressive measurement accuracy of ±2% of the measured value. With a robust IP67 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for chemical and water treatment processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Flow Sensor | DN15 | IP67 Rated | ±2% Measurement Accuracy | by SICK
Brand: SICK
SKU: 6041249
Alternatively Known As: Ultrasonic Flow Meter DN15, Fluid Flow Sensor, Industrial Flow Sensor, SICK Flow Transmitter
Technical Specifications
- Measurement principle: Ultrasonic sensor
- Medium: Fluids
- Nominal width measuring tube: DN 15
- Process temperature: 0 °C to +80 °C
- Process pressure: ≤ 16 bar
- Minimum flow: ≥ 0.9 l/min
- Maximum flow: ≤ 36 l/min
- Inlet zone: 30 cm
- Output zone: 5 cm
- Conductivity: No limitation
- Measurement accuracy: ± 2% of measured value + 0.15% of measuring range limit
- Repeatability: ≤ 0.5%
- Resolution: 0.006 l/min
- Response time: 100 ms to 4.2 s depending on setting
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: ≤ 180 mA
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: Analog output 4 mA to 20 mA, pulse/status output PNP/NPN transistor
- Output current: < 100 mA
- Output load: < 500 Ohm
- Enclosure rating: IP67
- Process connection: G ¾
- Wetted parts: PPSU EPDM
- Housing material: PPSU
- Dimensions (H x L x W): 50mm x 120mm x 50mm
- Weight: 0.35 kg
Key Features
- Ultrasonic sensor technology for accurate flow measurement
- Suitable for fluids with nominal width measuring tube DN 15
- Process temperature range from 0 °C to +80 °C
- Process pressure up to 16 bar
- High measurement accuracy of ± 2% of measured value plus 0.15% of measuring range limit
- Repeatability of ≤ 0.5%
- Fast response time options from 100 ms to 4.2 s
- Analog output signals with 4 mA to 20 mA current range
- IP67 rated enclosure for protection against dust and water
- Robust PPSU housing and wetted parts with EPDM seals
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic flow sensors and electrical connections to ensure accurate measurement and safety.
Applications
- Measurement of fluid flow in industrial processes
- Flow monitoring and dosing in chemical and water treatment plants
- Process control in manufacturing requiring precise fluid measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-intrusive ultrasonic measurement reduces risk of contamination and fluid loss
- Durable materials extend product life and reduce waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

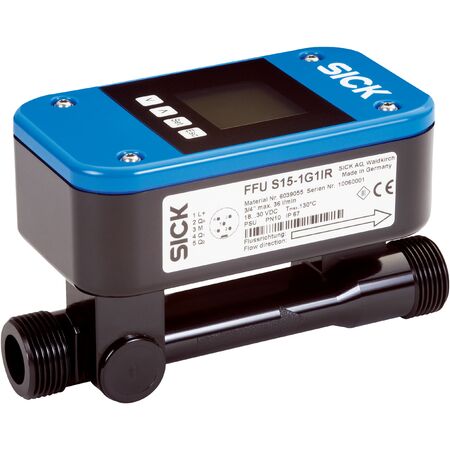

The SICK FFUS15-1G1IO Ultrasonic Flow Sensor is available for immediate purchase, ideal for industrial fluid flow measurement applications.
