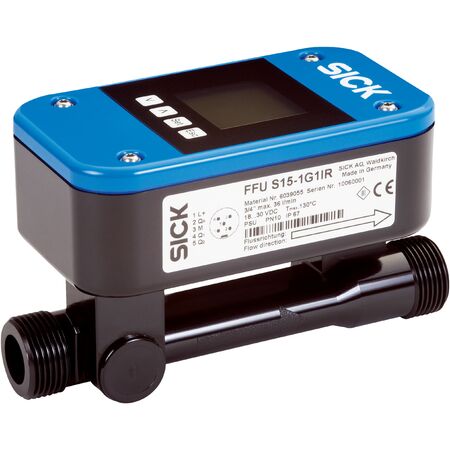

Ultrasonic Flow Sensor | DN15 | IP67 Rated | ±2% Measurement Accuracy | by SICK
The Ultrasonic Flow Sensor is designed for precise fluid flow measurement, featuring a DN15 nominal width and an impressive measurement accuracy of ±2% of the measured value. Ideal for industrial applications such as process monitoring and wastewater management, this sensor operates within a temperature range of 0 °C to +80 °C and is housed in a robust IP67 rated enclosure, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Flow Sensor | DN15 | IP67 Rated | ±2% Measurement Accuracy | by SICK
Brand: SICK
SKU: 6047869
Alternatively Known As: Ultrasonic Flow Meter DN15, Fluid Flow Sensor, Industrial Flow Sensor, SICK Flow Transmitter
Technical Specifications
- Measurement principle: Ultrasonic sensor
- Medium: Fluids
- Nominal width measuring tube: DN 15
- Process temperature: 0 °C to +80 °C
- Process pressure: ≤ 16 bar
- Minimum flow: ≥ 0.9 l/min
- Maximum flow: ≤ 36 l/min
- Inlet zone: 30 cm
- Output zone: 5 cm
- Conductivity: No limitation
- Measurement accuracy: ± 2% of measured value + 0.15% of measuring range limit
- Repeatability: ≤ 0.5%
- Resolution: 0.006 l/min
- Response time: 100 ms to 4.2 s
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: ≤ 180 mA
- Switch-on time: ≤ 5 s
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: Analog 4 mA to 20 mA, pulse/status output PNP/NPN transistor
- Output current: < 100 mA
- Output load: < 500 Ohm
- Enclosure rating: IP67
- Process connection: ¾" NPT
- Wetted parts: PPSU EPDM
- Housing material: PPSU
- Ambient operating temperature: 0 °C to +60 °C
- Storage temperature: –20 °C to +70 °C
- Dimensions (H x L x W): 100mm x 120mm x 50mm
- Weight: 0.35 kg
Key Features
- Ultrasonic sensor measurement principle for accurate flow detection
- Suitable for fluids with nominal width measuring tube DN 15
- Process temperature range from 0 °C to +80 °C
- Process pressure up to 16 bar
- High measurement accuracy of ± 2% of measured value plus 0.15% of measuring range limit
- Repeatability ≤ 0.5%
- Resolution of 0.006 l/min
- Fast response time options from 100 ms to 4.2 s
- Analog output signals 4 mA to 20 mA and pulse/status output
- IP67 rated enclosure for protection against dust and water
- Robust PPSU housing and wetted parts with EPDM seals
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Industrial fluid flow measurement
- Process monitoring in manufacturing
- Water and wastewater management
- Chemical and pharmaceutical industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-invasive ultrasonic measurement reduces risk of contamination and fluid loss
- Durable materials extend product life and reduce waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FFUS15-1N1IO Ultrasonic Flow Sensor is available for immediate purchase, ideal for industrial fluid flow measurement and process control applications.
