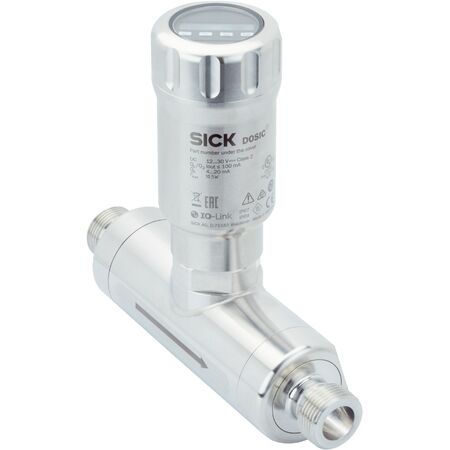

Ultrasonic Flow Sensor | DN25 | Accurate Measurement | IP67 & IP69 Rated | by SICK
The Ultrasonic Flow Sensor is designed for precise measurement of conductive and non-conductive liquids, featuring a DN25 nominal width and a robust stainless steel housing. With a process temperature range of –20 °C to +95 °C and high measurement accuracy of ±1%, it's perfect for industrial applications in food, beverage, pharmaceutical, and chemical industries. Its non-invasive technology minimizes contamination risk, making it an ideal choice for reliable flow monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ultrasonic Flow Sensor | DN25 | Accurate Measurement | IP67 & IP69 Rated | by SICK
Brand: SICK
SKU: 1082033
Alternatively Known As: Ultrasonic Flow Meter DN25, Liquid Flow Sensor, IO-Link Flow Sensor, Industrial Flow Meter
Technical Specifications
- Measurement principle: Ultrasonic sensor
- Nominal width measuring tube: DN 25
- Process temperature: –20 °C to +95 °C, up to 143 °C for 60 minutes (SIP process)
- Process pressure: –0.5 bar to 16 bar
- Minimum flow: 1.5 l/min
- Inlet zone: 5 x DN (12.5 cm)
- Output zone: 3 x DN (7.5 cm)
- Conductivity: No limitation
- Measurement accuracy: ±1% of measured value
- Repeatability: 0.5%
- Resolution: 10 ml/min
- Response time: 12 ms
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: < 3 W without output load
- Switch-on time: ≤ 5 s
- Connection type: M12 round connector, 8-pin
- Output signal: 2 x analog output (4 mA to 20 mA), 2 x configurable digital input/output
- Enclosure rating: IP67 and IP69
- EMC compliance: EN 61326-1, EN 61326-2-3
- Material wetted parts: Stainless steel 1.4404 (Ra ≤ 0.8 µm)
- Housing material: Stainless steel 1.4305 with PMMA viewing window
- Dimensions (H x L x W): 150mm x 200mm x 100mm
- Weight: 3 kg
Key Features
- Ultrasonic sensor technology for accurate flow measurement
- Suitable for conductive and non-conductive liquids
- Process temperature range from –20 °C to +95 °C, up to 143 °C for 60 minutes for SIP process
- Process pressure range from –0.5 bar to 16 bar
- Communication via IO-Link V1.1 interface
- High measurement accuracy of ±1% of measured value
- Repeatability of 0.5% and resolution of 10 ml/min
- Fast response time of 12 ms
- Robust stainless steel housing with IP67 and IP69 protection ratings
- M12 round connector with 8 pins for connection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Measurement of conductive and non-conductive liquids in industrial processes
- Flow monitoring in food and beverage, pharmaceutical, and chemical industries
- Temperature measurement in SIP processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-invasive ultrasonic measurement reduces contamination risk and waste
- Energy-efficient operation with power consumption under 3 W
- Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK FUM-H025F1GE80000 Ultrasonic Flow Sensor is available for immediate purchase, ideal for industrial liquid flow measurement applications.
