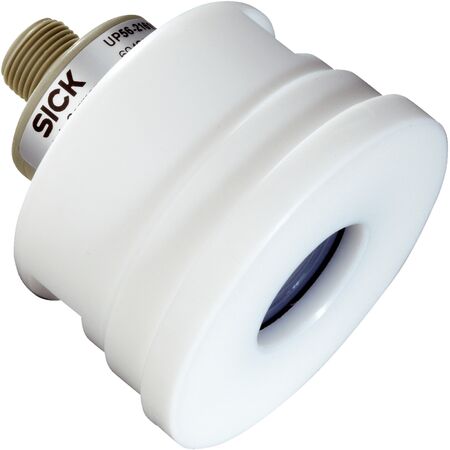

Ultrasonic Fluid Level Sensor | 30 mm to 250 mm Range | IP67 Rated | by SICK
The Ultrasonic Fluid Level Sensor is designed for precise fluid level measurement with both switch and continuous output. With a measuring range of 30 mm to 250 mm and an impressive accuracy of ≤ 1%, it's perfect for industrial process control and fluid monitoring applications. Built to withstand harsh environments with an IP67 rating, this sensor ensures reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch and Continuous
- Measuring range in tank: 30 mm to 250 mm
- Measuring range immersion tube: 30 mm to 500 mm
- Process pressure: 0 bar to 2 bar
- Process temperature: -25 °C to +85 °C
- Accuracy of sensor element: ≤ 1%
- Reproducibility: ± 0.15%
- Resolution: 0.025 mm
- Response time: 68 ms
- MTTF: > 100 years
- Supply voltage: 9 V DC to 30 V DC
- Residual ripple: ± 10%
- Power consumption: ≤ 80 mA
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 4 mA to 20 mA
- Hysteresis: 3 mm
- Output current: 200 mA
- Time delay before availability: ≤ 300 ms
- Enclosure rating: IP67
- Ultrasonic frequency: 320 kHz
- Ultrasonic transducer: PTFE coating, FFKM
- Wetted parts: PTFE, FFKM
- Process connection: GF connection D40
- Housing material: PTFE, PP
- Housing design: Compact
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.145 kg
Key Features
- Measures fluid levels with switch and continuous output
- Measuring range in tank: 30 mm to 250 mm
- Measuring range immersion tube: 30 mm to 500 mm
- Process pressure range: 0 bar to 2 bar
- Process temperature range: -25 °C to +85 °C
- High accuracy sensor element with ≤ 1% accuracy
- Reproducibility of ± 0.15%
- Fast response time of 68 ms
- Output signal: 4 mA to 20 mA
- Protection rating IP67 for harsh environments
- Compact housing made of PTFE and PP
- Wetted parts made of PTFE and FFKM for chemical resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor setup and electrical connections to ensure safety and accuracy.
Applications
- Fluid level measurement in tanks and containers
- Industrial process control involving fluid monitoring
- Applications requiring continuous or switch level measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact ultrasonic measurement reduces contamination risk and waste
- Durable materials extend product life and reduce replacement frequency
- Low power consumption of ≤ 80 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UP56-211156 Ultrasonic Fluid Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring and control applications.
